P/N: 9H.JNK77.17E

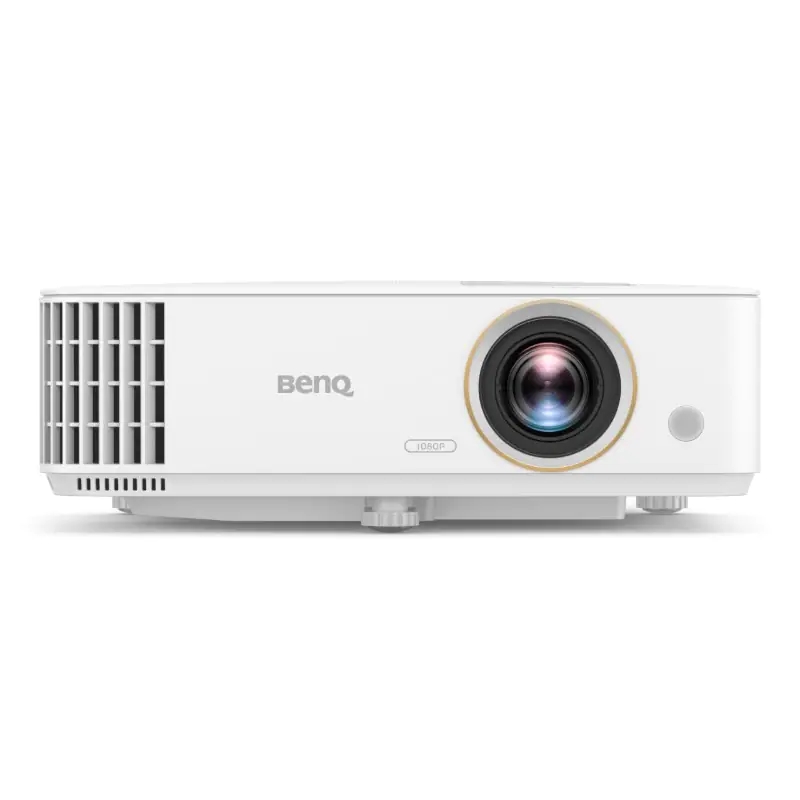

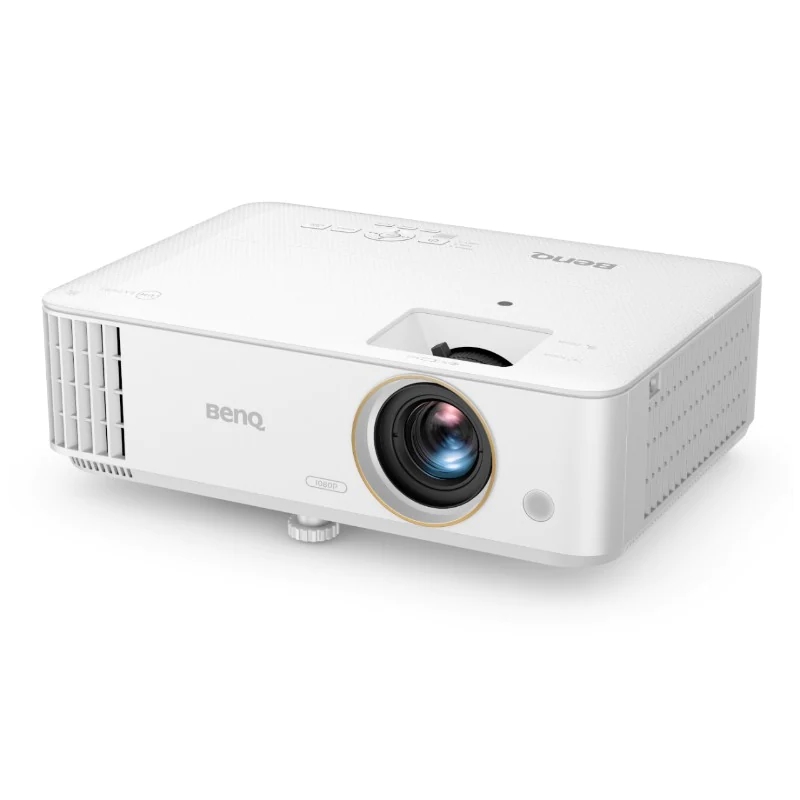

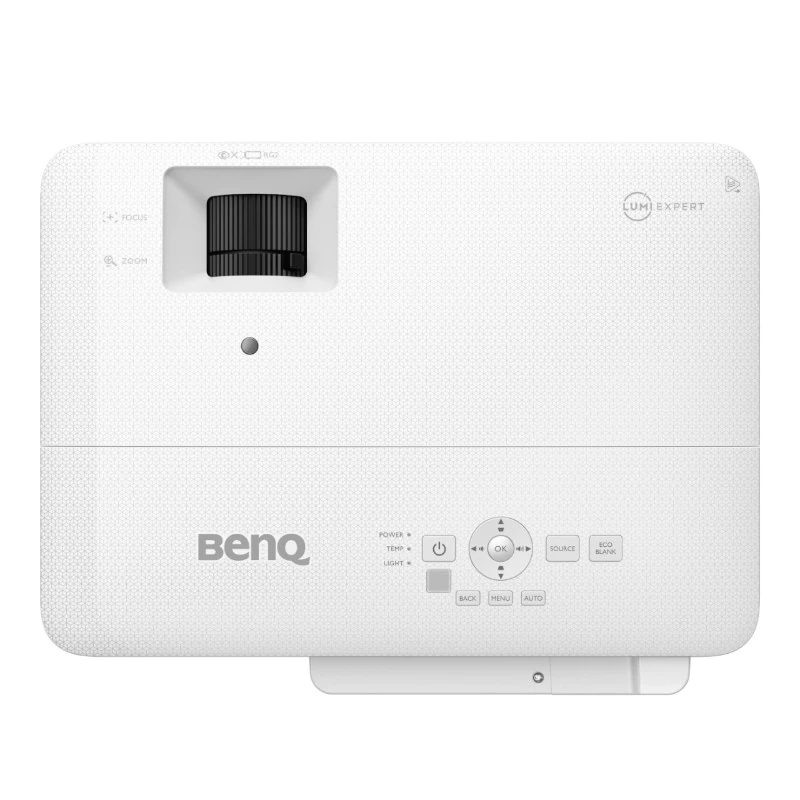

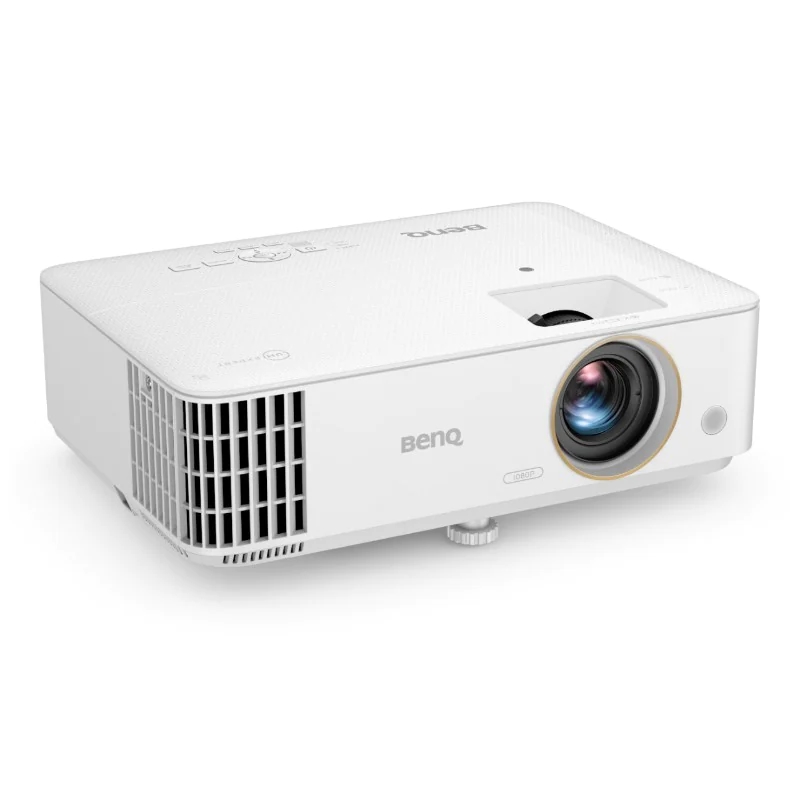

Multimedia projector, BenQ TH685i, HDR Console Gaming Projector, DLP, 1080p 1920x1080, 10000:1, 3500 ANSI Lumens, Zoom 1.3x, Ultra-Low Input Lag, 8.3ms@120Hz, Android TV, Google Play Store, Speaker 5W, VGA, 2xHDMI, USB Type A 1.5A, Audio in/out, RS232, 2.8 kg, White

Recommended service
BenQ Service Department

Characteristic

Technology	DLP
Brightness, lumens	3 500 ANSI Lumens
Contrast	10 000:1
Resolution	1920x1080
Screen size, inch	30'' ~ 300'' (76.2 ~ 762 cm)
Supported formats	16:9
Sound	5W Chamber Speaker
Noise, dB	35/29 dBA (Typ./Eco.)
Magnification ratio	1.3x
Short-Throw	no (1.13~1.46 100"@2.5m (100" @ 8.2ft))
Option for wireless projection	-
Inputs	PC (D-Sub), USB Type A (1.5A power), Audio in (3.5mm Mini Jack), RS232 (DB-9pin), IR Receiver x2 (Front / Top)
Outputs	Monitor Out (D-Sub), Audio out (3.5mm Mini Jack)
HDMI	HDMI x2 (HDCP2.2)
Lamp, W	245W
Lamp life, h	Normal 4,000 hours / Eco 10,000 hours / SmartEco 8,000 hours / LampSave 15,000 hours
Dimensions (W, D, H), cm	31.2 x 22.5 x 11.0
Weight, kg	2.80 kg
Color	White
Other	Security Bar, Kensington Lock, Keystone Adjustment: Auto 1D Vertical ±30 degrees; Google-certified Android TV Smart projector with Google Play Store
Warranty	36 months
