P/N: 9H.JL677.26E

Multimedia projector, BenQ LU785 DLP, BlueCore Laser, WUXGA 1920x1200, Brightness 6000AL, Contrast 3,000,000:1, 20,000 hrs life, Big Zoom 1.65x, H/V lens shift, HDMI x2, LAN control, Coner fit, 360 degree projection, IP5X Dust Proof Engine, 96% Rec. 709, 10.7 kg.

Recommended service
BenQ Service Department

Characteristic

Technology	Laser, DLP Single 0.67" WUXGA
Brightness, lumens	6 000 ANSI Lumens
Contrast	3 000 000:1
Resolution	1920x1200
Screen size, inch	30'' ~ 300'' (76.2 ~ 762 cm)
Supported formats	Native 16:10 (5 aspect ratio selectable)
Sound	10W (5Wx2)
Noise, dB	38/34 dBA (Normal/Eco)
Magnification ratio	1.65x
Short-Throw	no (Throw Ratio: 1.15 ~ 1.9)
Option for wireless projection	-

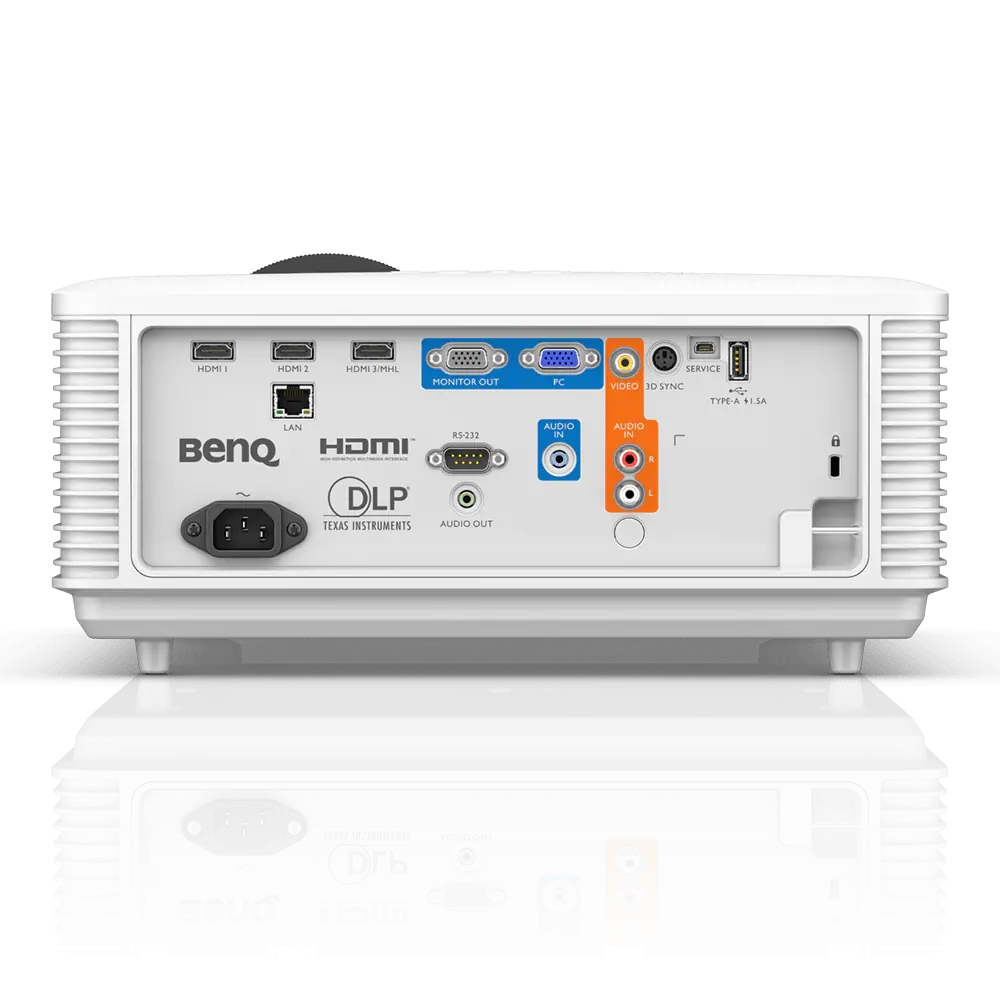

Inputs	PC (D-sub 15pin), Composite Video in (RCA), Audio in (Mini Jack), Audio L/R in (RCA), LAN Port (RJ45 for Network control/FW upgrade), USB Type A (Power 5V/1.5A), USB Type Mini B(Service), RS232 in (D-sub 9pin), IR Receiver (Front/Rear)
Outputs	Monitor out (D-sub 15pin), Audio out (Mini Jack), 3D Sync out
HDMI	3 HDMI (1.4a) (one share with MHL)
Lamp, W	Laser diodes
Lamp life, h	20,000/38,000/70,000 hours (Normal/Eco/Dimming)
Dimensions (W, D, H), cm	45.4 x 36.0 x 16.4
Weight, kg	10.7 kg
Color	White
Other	Security Bar, Kensington anti-theft lock slot; Keystone Correction: Vertical: ± 30 degrees, Horizontal: ± 30 degrees; Blank to True Black, 360 Degree and Portrait Projection, Corner fit, Custom Lightsource Mode, Dust Proof Engine
Warranty	36 months
