P/N: DNN3248X

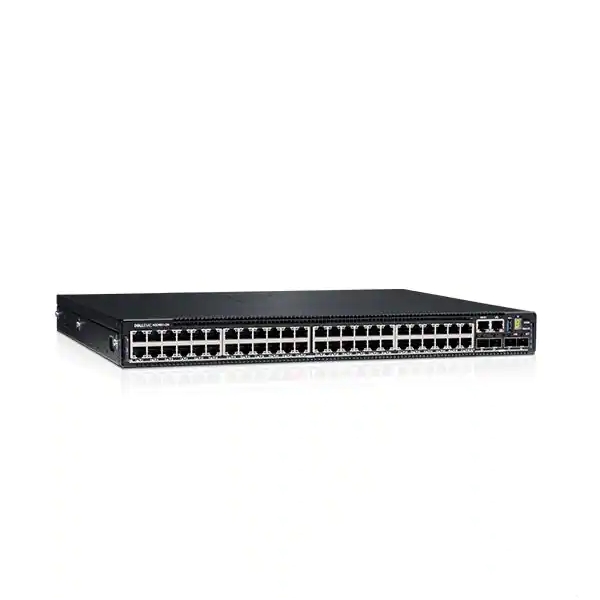

Commutator/ Switch, Dell EMC PowerSwitch N3248X-ON, 48x1/2.5/5/10G RJ-45, 4x25G SFP28, 2x100G QSFP28, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

Dell EMC PowerSwitch N3248X-ON, 48x1/2.5/5/10G RJ-45, 4x25G SFP28, 2x100G QSFP28, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

DELL мрежови продукти >> Dell EMC PowerSwitch N3248X-ON Recommended service

Recommended service
Dell Technical Support: тел. 00800 1104478; ИНДЕКС - БЪЛГАРИЯ ООД, тел. 3355 (DELL), (02) 903 4400, (02) 875 70 29, адрес: София 1784, Младост 1, бл. 54

Characteristic

Switch, type	Fixed Port
Total number of ports	54
Мain ports, type	48x10GBase-T
Power Over Ethernet (PoE)	-
Uplink ports	4x 25G SFP28 ports
Open (10GB) slots	-
Management	CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
Stackable	2x 100G QSFP28
Fans	Redundant variable speed fans
Power supply	1x 550W AC PSU
Routing	Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
Memory (Flash, RAM)	4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD, buffer memory: 4MB
Routing/Switching capacity, Gbps	1560 Gbps
Throughput, Mpps	2167 Mpps
MAC addresses	32K
VLAN (number, standards)	Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
QoS	DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 network standards	802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
L3 network standards	RIP, OSPF, VRRP, MIB
IPv6 functionality	Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Security	RADIUS, TACACS+, 802.1x
Dimensions (W, D, H), mm	434 x 400 x 43.5 mm
Мounting option	Rackmount
Other	1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
Warranty	99 months
