P/N: DNN3208PX

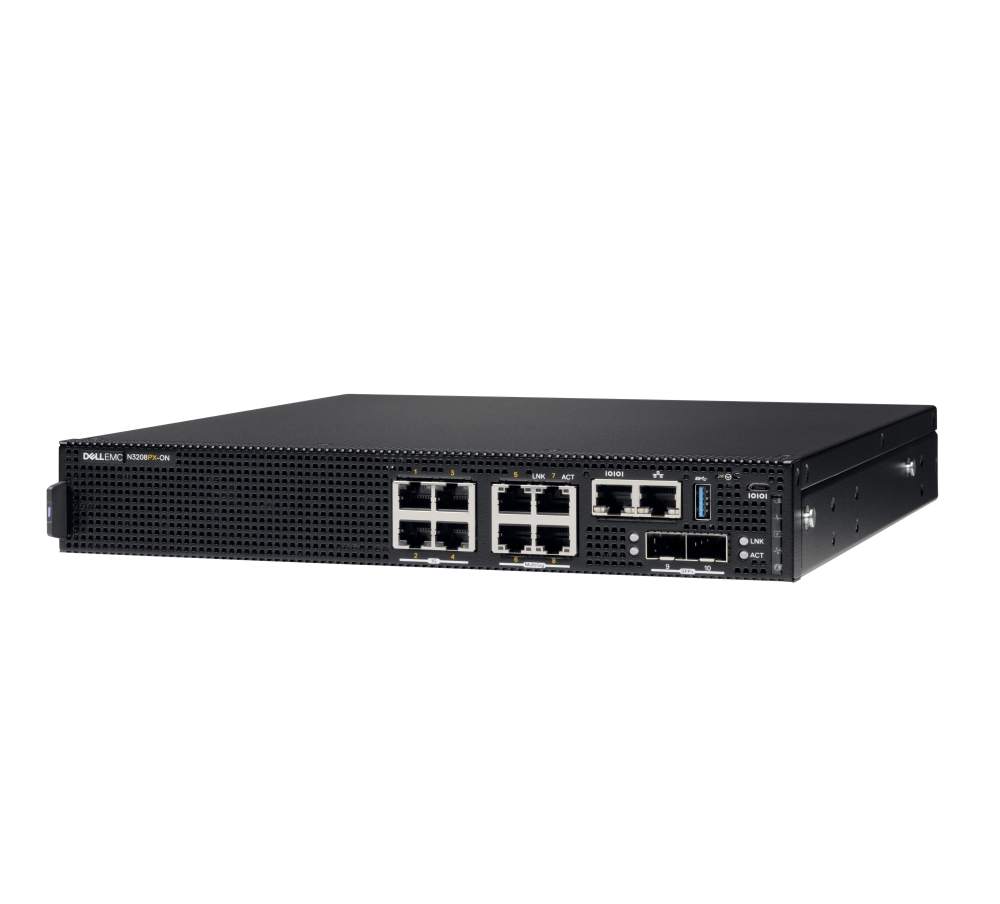

Commutator/ Switch, Dell EMC N3208PX-ON, 4x1G RJ-45, 4x1/2.5/5G RJ-45, 2x10G SFP+, PoE 90W, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

Dell EMC N3208PX-ON, 4x1G RJ-45, 4x1/2.5/5G RJ-45, 2x10G SFP+, PoE 90W, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

DELL мрежови продукти >> Dell EMC N3208PX-ON Recommended service

Recommended service
Dell Technical Support: тел. 00800 1104478; ИНДЕКС - БЪЛГАРИЯ ООД, тел. 3355 (DELL), (02) 903 4400, (02) 875 70 29, адрес: София 1784, Младост 1, бл. 54

Characteristic

Switch, type	Fixed Port
Total number of ports	8
Мain ports, type	4x RJ45 10M/100M/1G/2.5G/5G 802.3bt (up to 90W) PoE autosensing ports + 4x 10M/100M/1000Mb 802.3bt (up to 90W) PoE autosensing ports
Power Over Ethernet (PoE)	PoE
Uplink ports	2x 10G SFP+ ports
Open (10GB) slots	-
Management	Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell EMC OpenManage Network Manager), Telnet or serial connection.
Stackable	No
Fans	Redundant variable speed fans; Air flow: I/O to power supply
Power supply	1x 320W AC PSU included
Routing	Line-rate Layer 3 routing; Static routes: 1024 (IPv4)/1024 (IPv6), Dynamic routes: 8158 (IPv4)/4096 (IPv6), OSPF routing interfaces: 8158, RIP routing interfaces: 512, ECMP next hops per route: 16, ECMP groups: 1024
Memory (Flash, RAM)	4 MB Buffer memory
Routing/Switching capacity, Gbps	88 Gbps
Throughput, Mpps	122 Mpps
MAC addresses	32K
VLAN (number, standards)	VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24; IEEE compliance: Voice VLAN, 802.1Q, 802.1v, 802.1X
QoS	DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 network standards	IEEE 802.3bt
L3 network standards	RIPv1, RIPv2 MIB Extension, OSPF DB overflow, OSPF MIB, RIP-2 MD5 Auth, OSPFv2, VRRP, Opaque, Policy Based Routing, RIPv2, OSPFv3, VRRP MIB, NSSA, OSPF Stub Router Advert, Graceful Restart, VRRP, BGP, OSPFv3
IPv6 functionality	BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Security	AAA authorization, TACACS+ accounting and RADIUS
Dimensions (W, D, H), mm	279.4 x 312 x 43.5 mm
Мounting option	Rackmount (1U)
Warranty	99 months
