НАЙ-ТЪРСЕНИ ПРОДУКТИ

P/N: DNN3208PX

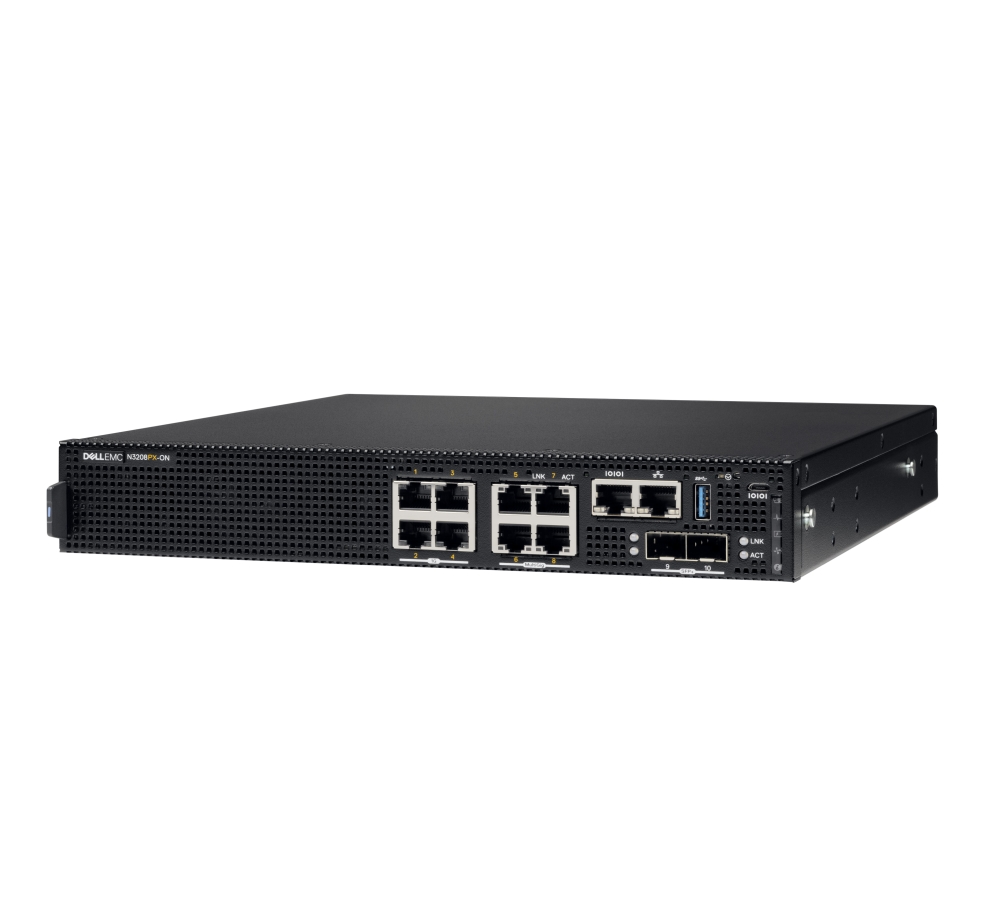

Комутатор, Dell EMC N3208PX-ON, 4x1G RJ-45, 4x1/2.5/5G RJ-45, 2x10G SFP+, PoE 90W, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

99
Dell EMC N3208PX-ON, 4x1G RJ-45, 4x1/2.5/5G RJ-45, 2x10G SFP+, PoE 90W, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty
DELL мрежови продукти >> Dell EMC N3208PX-ON Препоръчителен сервиз
Препоръчителен сервиз
Dell Technical Support: тел. 00800 1104478; ИНДЕКС - БЪЛГАРИЯ ООД, тел. *3355 (*DELL), (02) 903 4400, (02) 875 70 29, адрес: София 1784, Младост 1, бл. 54





Характеристики

Суич, тип Fixed Port
Общ брой портове 8
Основни портове, тип 4x RJ45 10M/100M/1G/2.5G/5G 802.3bt (up to 90W) PoE autosensing ports + 4x 10M/100M/1000Mb 802.3bt (up to 90W) PoE autosensing ports
Power Over Ethernet (PoE) PoE
Uplink портове 2x 10G SFP+ ports
Свободни (10GB) слотове -
Управление Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell EMC OpenManage Network Manager), Telnet or serial connection.
Stackable No
Fans Redundant variable speed fans; Air flow: I/O to power supply
Захранване 1x 320W AC PSU included
Routing Line-rate Layer 3 routing; Static routes: 1024 (IPv4)/1024 (IPv6), Dynamic routes: 8158 (IPv4)/4096 (IPv6), OSPF routing interfaces: 8158, RIP routing interfaces: 512, ECMP next hops per route: 16, ECMP groups: 1024
Памет (Flash, RAM) 4 MB Buffer memory
Капацитет за маршрутизиране/превключване, Gbps 88 Gbps
Пропускателна способност, Mpps 122 Mpps
MAC адреси 32K
VLAN (брой, стандарти) VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24; IEEE compliance: Voice VLAN, 802.1Q, 802.1v, 802.1X
QoS DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 мрежови стандарти IEEE 802.3bt
L3 мрежови стандарти RIPv1, RIPv2 MIB Extension, OSPF DB overflow, OSPF MIB, RIP-2 MD5 Auth, OSPFv2, VRRP, Opaque, Policy Based Routing, RIPv2, OSPFv3, VRRP MIB, NSSA, OSPF Stub Router Advert, Graceful Restart, VRRP, BGP, OSPFv3
IPv6 functionality BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Сигурност AAA authorization, TACACS+ accounting and RADIUS
Размери (Ш, Д, В), mm 279.4 x 312 x 43.5 mm
Опция за монтаж Rackmount (1U)
Гаранция 99 месеца

EAN: -
