P/N: DGS-1100-24V2

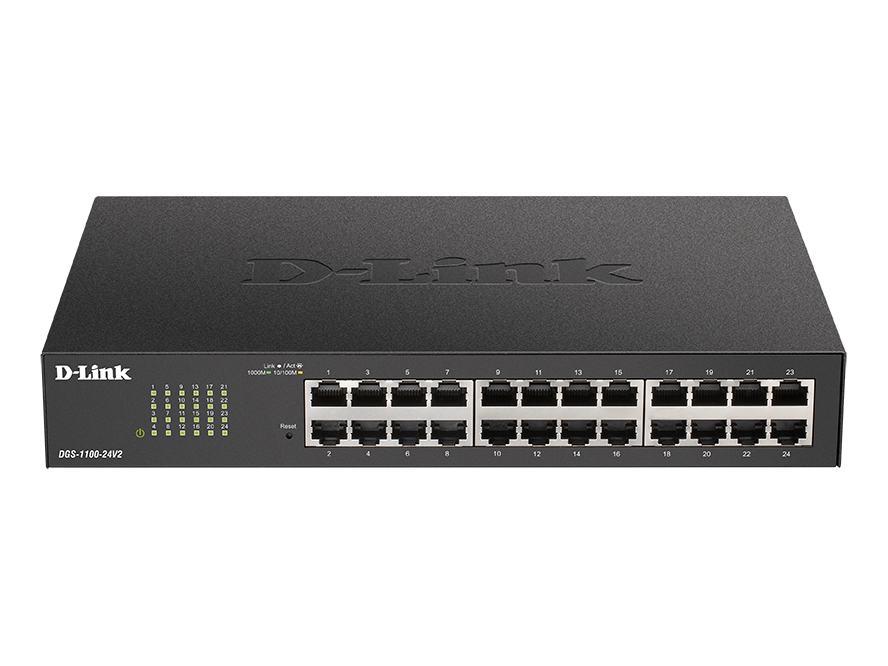

Commutator/ Switch, D-Link 24-Port Gigabit Smart Managed Switch

99

Characteristic

Switch, type Fixed Port
Total number of ports 24
Мain ports, type 24x10/100/1000Base-T
Power Over Ethernet (PoE) No
Uplink ports 0
Open (10GB) slots No
Management Web-based GUI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA)
Stackable No
Fans Fanless
Power supply 100 to 240 V AC, 50 to 60 Hz internal power supply
Routing Layer 2 Only
Memory (Flash, RAM) Flash Memory: 16 MB
Routing/Switching capacity, Gbps 48 Gbps
Throughput, Mpps 35.71 Mpps
MAC addresses 8000 MAC address table size
VLAN (number, standards) Port-based VLAN; 802.1Q tagged VLAN; Auto Surveillance VLAN; Voice VLAN; Management VLAN; Asymmetric VLAN; VLAN Group: Supports 128 static VLAN groups, Max. 4094 VIDs
QoS 802.1p Quality of Service; 8 queues per port; Queue handling - Strict, Weighted Round Robin (WRR); Port-based bandwidth control (rate limiting): Ingress/Egress - 16 Kbps
L2 network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p
L3 network standards -
IPv6 functionality -
Security D-Link Safeguard, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS attack prevention, SSL
Dimensions (W, D, H), mm 280 x 180 x 44 mm
Мounting option Desktop/Rackmount
Warranty 99 months

EAN: -
