P/N: DGS-1100-05PDV2

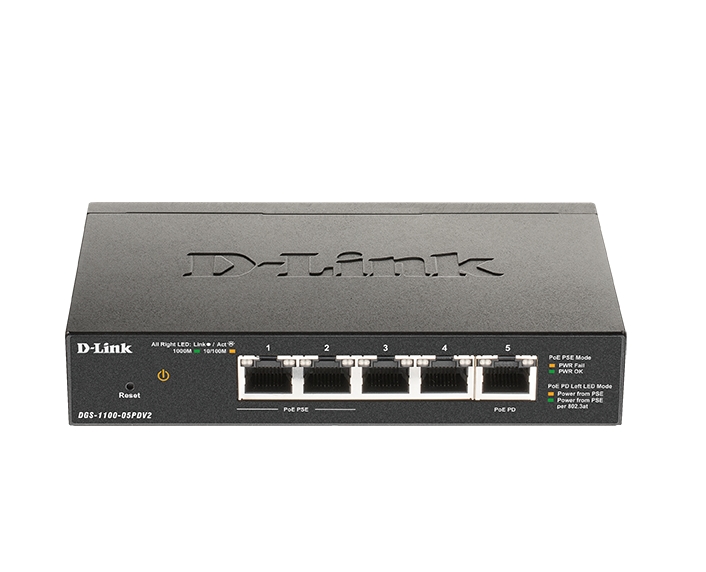

Commutator/ Switch, D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	5
Мain ports, type	5x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3af PoE Standard, 1 to 2 PoE Capable Ports, PoE Passthrough: 18 W with 802.3at input, 8 W with 802.3af input
Uplink ports	0
Open (10GB) slots	No
Management	Web-based GUI (Supports IPv4), D-Link Network Assistant (DNA)
Stackable	No
Fans	Fanless
Power supply	802.3af/at PoE power only via PD port 5; No power supply
Routing	Layer 2 Only
Memory (Flash, RAM)	Flash Memory: 2 MB
Routing/Switching capacity, Gbps	10 Gbps
Throughput, Mpps	7.44 Mpps
MAC addresses	2000 MAC address table size
VLAN (number, standards)	Port-based VLAN; 802.1Q tagged VLAN; Surveillance VLAN; Voice VLAN; Management VLAN; VLAN Group - Supports 32 static VLAN groups, Max. 4094 VIDs; Asymmetric VLAN
QoS	802.1p Quality of Service; 4 queues per port; Queue handling - Strict, Weighted Round Robin (WRR); Bandwidth control - Port-based (Ingress/Egress, min. granularity 8 Kb/s); DSCP
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af
L3 network standards	-
IPv6 functionality	-
Security	Static MAC addresses (Up to 32 entries); Traffic segmentation; Broadcast/Multicast/Unknown Unicast Storm Control; Port security
Dimensions (W, D, H), mm	150 x 97 x 28 mm
Мounting option	Desktop
Warranty	99 months
