P/N: 90-MXBCZ0-A0UAYZ

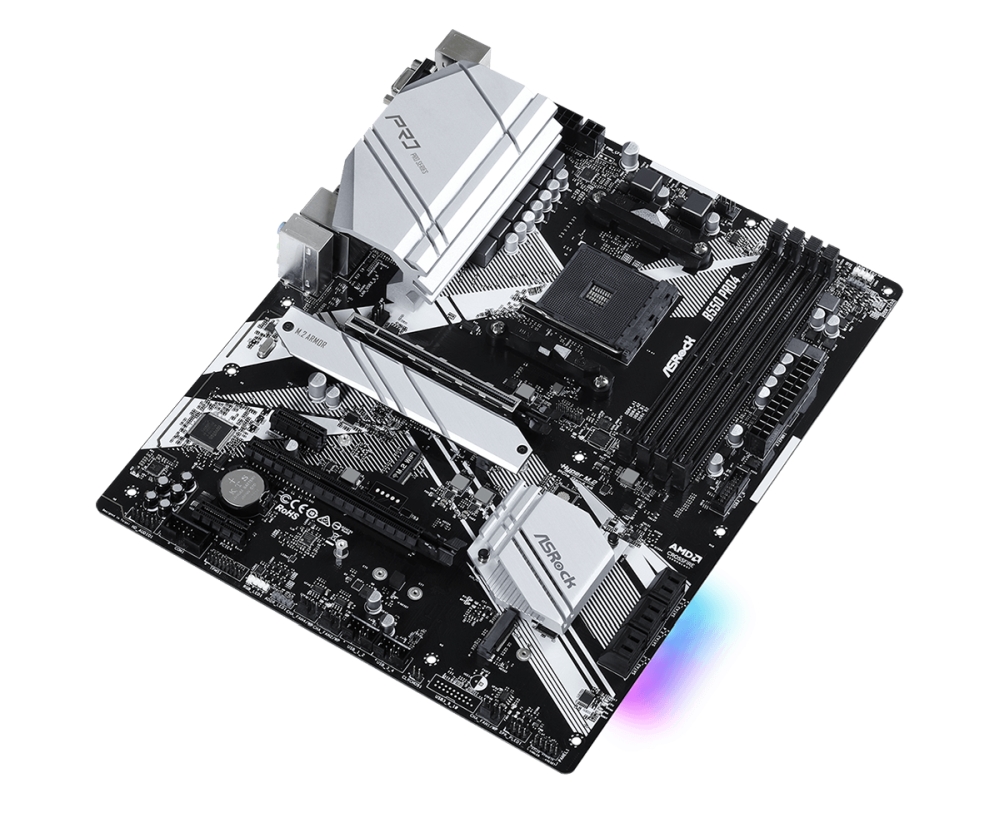

Motherboard, Asrock B550 Pro 4

ASROCK компоненти за компютри >> Asrock B550 Pro 4 Recommended service
Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура





Characteristic

Series PRO4
Processor AMD AM4 Ryzen
Chipset AMD B550
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustmen
Мemory DDR4
Number of slots 4 DIMM Slots, Max. capacity of system memory: max. 128GB, Supports Extreme Memory Profile (XMP) memory modules
Audio 7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Nahimic Audio.
Wireless network -
Connectors 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
Slots AMD Ryzen series CPUs (Matisse)- - 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; 2 x PCI Express 3.0 x1 Slots,Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
M.2 slot 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module, 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module.
Interface Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port,1 x HDMI Port, 1 x DisplayPort 1.2, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED.
Software ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN.
Operating system Microsoft Windows 10 64-bit
Form factor ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
Special features ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop.
Warranty 36 months

EAN: 4710483931482
