P/N: EMAH28
Filter, Eaton ePDU MA 1U (C20 16A 1P) 8xC13

24

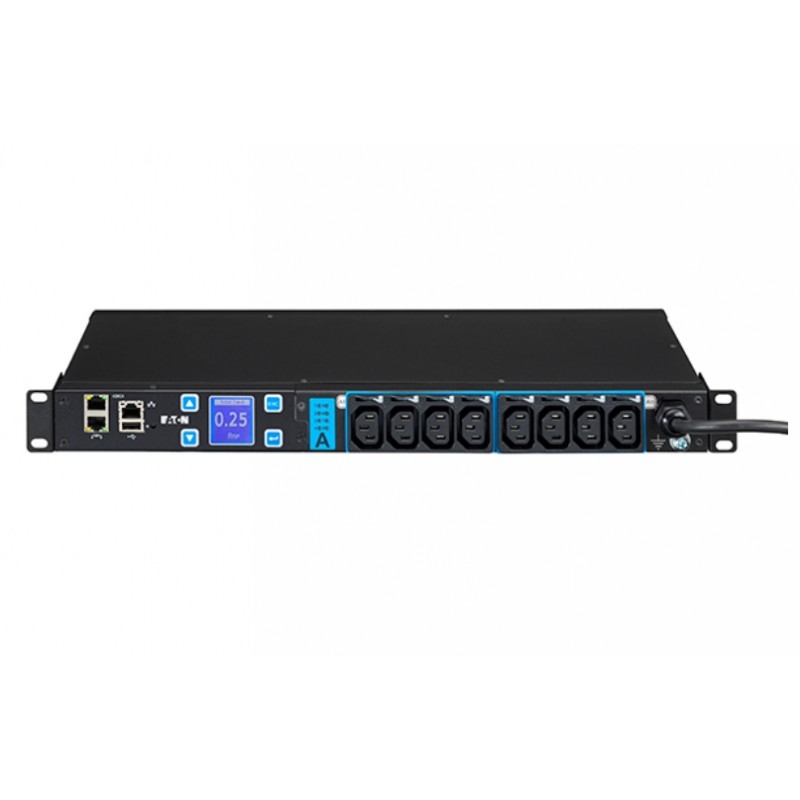

Eaton ePDU MA 1U (C20 16A 1P) 8xC13
EATON непрекъсваеми ТЗИ >> Eaton ePDU MA 1U (C20 16A 1P) 8xC13 Recommended service
Recommended service
Мундус Сървисиз АД, тел. 0883 888 333, адрес: гр. София, бул. Искърско шосе 7, Търговски Център „Европа“, сграда 9, етаж -1, e-mail: ups_service@mundus.bg





Characteristic

Input voltage, V 230 V
Input frequency, Hz 50 Hz
Input current, A 16 A
Max. power, kW 4 kW
Number of phases 1
Input connection IEC-320-C20
Number of outputs 8
Inference type IEC-320-C13
Cable length, m 3 m
Security Circuit Breakers: 2 single pole; Level 3 PUE measurements; Dual built-in security mechanism eGrip & P-Lock, Hot-Swap Control module with Advanced LCD, Phase Metering, Circuit Breaker Current Metering and Input Metering
Installation Button mounting on rear and sides, variable mounting bracket. 1U/2U form factor ePDUs can be mounted horizontaly, vertically, or under a surface.
Form factor 1U
Standards CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 55024:2010, EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 Part 6-4, RoHS 2011/65/EU, EN 50581 2012, REACH, WEEE, PEP, ISO 9001:2008 / ISO 14001
Dimensions (W, D, H), mm 445 x 203 x 43 mm
Color Black
Other Managed; Daisy Chain: 8 ePDUs
Warranty 24 months

EAN: -
