P/N: SC-36U80100

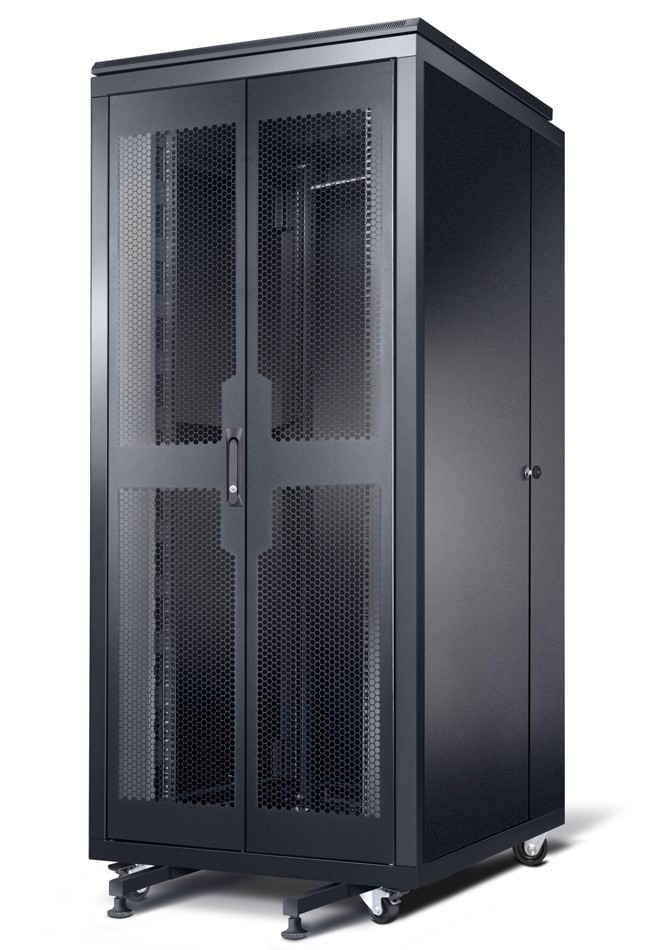

Rack, Formrack 19" Server rack 36U 800/1000mm, perforated front and back door, openable locking sides, height: 1653 mm, loading capacity: 1000kg (does not include castor/feet group)

FORMRACK >> Formrack 19" Server rack 36U 800/1000mm Recommended service

Recommended service
СЕКТРОН ООД, тел. 02 919 8282, факс 02 873 2576, адрес: гр. София - 1125, бъл. Д-р Г.М. Димитров 52, имейл: service@sectron.com, сайт: www.sectron.com

Characteristic

Type	Server rack
Form factor, inch	19"
Form factor	36U
Width, mm	800 mm
Depth, mm	1000 mm
Height, mm	1653 mm
Internal dimensions, mm	Inside Height: 1603 mm
Maximum load, kg	1000 kg
Weight, kg	105 kg
Front doors, type	Perforation (vertically double open perforated structure), made by DKP sheet (1.2 mm steel), openable, lockable and easily removable
Side panels	Openable, lockable and easily removable, made by DKP sheet (1.2 mm steel). The main frame is 1.5 mm and corner profiles have nested structure
Rear panel	Openable, lockable and easily removable; vertically double open perforated structure, made by DKP sheet (1.2 mm steel)
Locking	Four sides
Accessories included	4x 19" mounting profiles with 2 mm sheet thickness and these profiles can move deep within the cabinet. Mounting profiles have U markings that facilitate the mounting process. Not included castor/feet group (option of using wheeled and fixed legs)
Number of sections	Single-section
Fan slot	Ventilation is provided by cooling units with 2,4 or 6 fans
Standards	ROSH, CE, EN 61587-1
Color	Black (Painted by impact-resistant, high strength, electrostatic Ral 9005 texture black color)
Other	At the top part, there is a protective structure that prevents to the entrance of dust and foreign matters. At the bottom and top parts, there is a dust-protected brushed cable entry. The cabinet has a balance foot against tilting
Warranty	24 months

EAN: -
