P/N: GLD-16U6080/CSM-16U6080

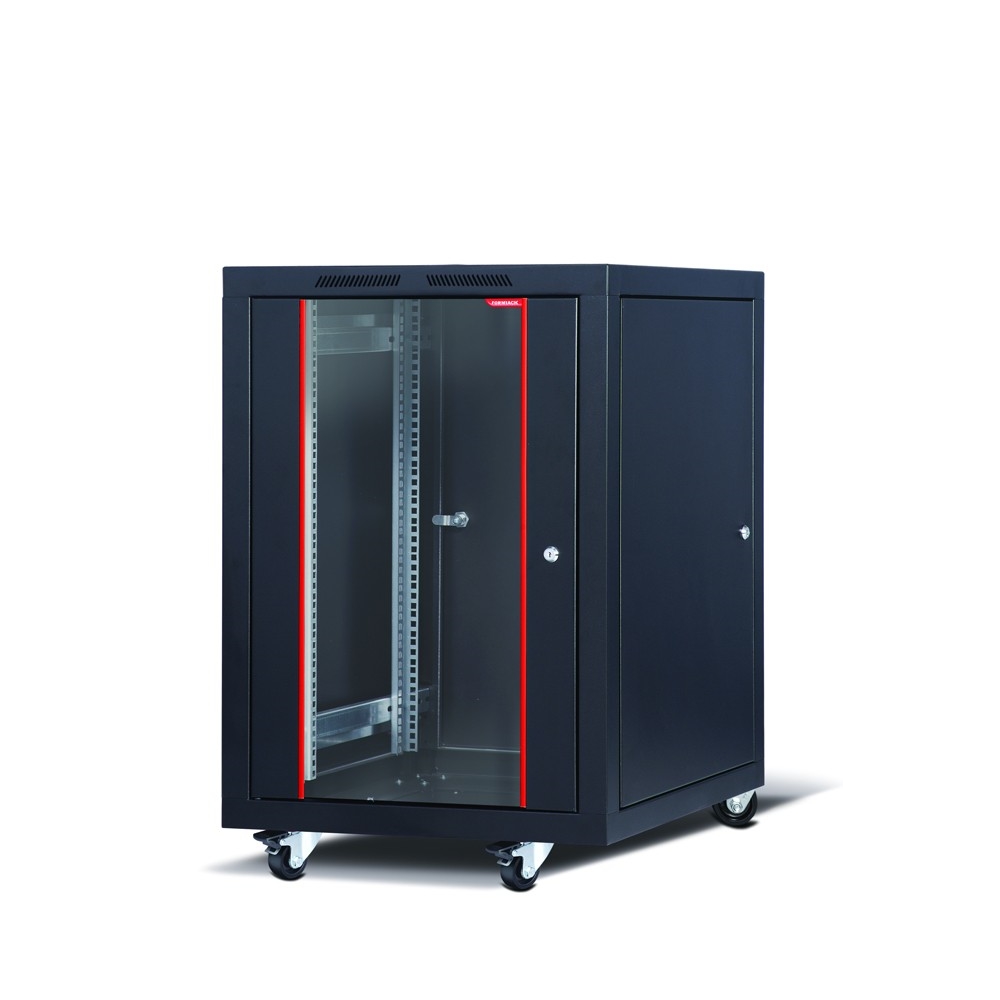

Rack, Formrack 19" Free standing rack 16U 600/800mm, height: 942 mm, loading capacity: 600 kg, front tempered glass door, openable locking sides and back (does not include castor/feet group)

FORMRACK >> Formrack 19" Free standing rack 16U 600/800mm Recommended service

Recommended service
СЕКТРОН ООД, тел. 02 919 8282, факс 02 873 2576, адрес: гр. София - 1125, бъл. Д-р Г.М. Димитров 52, имейл: service@sectron.com, сайт: www.sectron.com

Characteristic

Type	Free standing
Form factor, inch	19"
Form factor	16U
Width, mm	600 mm
Depth, mm	800 mm
Height, mm	942 mm
Internal dimensions, mm	Inside Height: 714 mm
Maximum load, kg	600 kg
Weight, kg	54 kg
Front doors, type	Tempered glass (4 mm thick, impact-resistant, tempered and smoked-colored glass which is supported by metal frames)
Side panels	Openable, lockable and easily removable covers, made by DKP sheet (1.2 mm steel). The main frame is 1.5 mm. The frame and corner profiles have nested structure
Rear panel	Openable, lockable and easily removable, made by DKP sheet (1.2 mm steel)
Locking	Four sides
Accessories included	4x 19" mounting profiles and these profiles can move deep within the cabinet. Does not include castor/feet group (It has the option of using wheeled and fixed legs). Mounting profiles have U markings that facilitate the mounting process.
Number of sections	Single-section
Fan slot	Ventilation is provided by cooling units with 2,4 or 6 fans
Standards	ROSH, CE, EN 61587-1
Color	Black (Painted by impact-resistant, high strength, electrostatic Ral 9005 texture black color)
Other	At the bottom part of the cabinets, there is a sliding and dust-protected brushed cable entry
Warranty	24 months
