P/N: MS425-32-HW

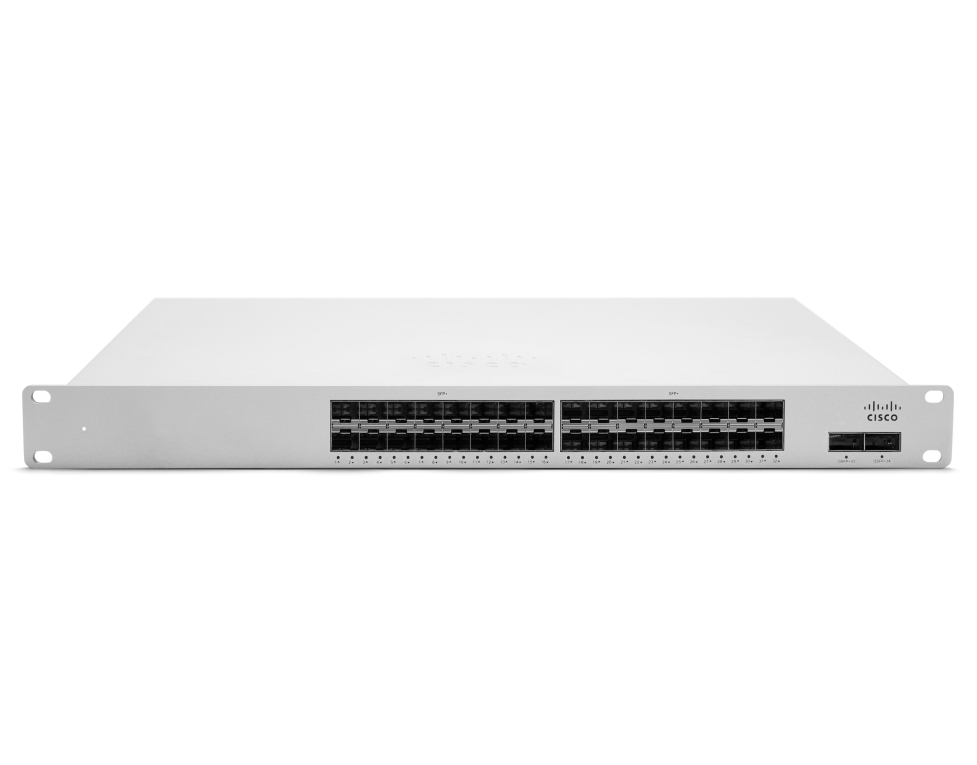

Commutator/ Switch, Cisco Meraki MS425-32 L3 Cld-Mngd 32x 10G SFP+ Switch

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Meraki MS425-32 L3 Cld-Mngd 32x 10G SFP+ Switch Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	34
Мain ports, type	32x10GE SFP
Power Over Ethernet (PoE)	No
Uplink ports	2x40GE SFP
Open (10GB) slots	No
Management	Managed via the Web with the Meraki cloud management platform; Integrated with Meraki Wireless and complete portfolio of IT products and solutions; SNMP and SYSLOG support for integration with other network management solutions
Stackable	2 x 40G QSFP+ stacking ports; Physically stack up to 8 switches with 160 Gbps of stacking bandwidth; Virtual Stacking; Flexible stacking on all interfaces and SFP+/QSFP+ accessory types, up to 8 switches
Fans	Field-replaceable, hot-swappable fans
Power supply	Hot-swappable Power Supply Configuration; Supported Power Supply: 2 x 250W PSU (Single power supply (PSU) included. For redundancy, second PSU is sold separately)
Routing	Layer 3 Advanced
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	800 Gbps
MAC addresses	228000 MAC address table size
VLAN (number, standards)	802.1Q VLAN and trunking support for up to 4094 VLANs
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab
L3 network standards	Static routing, OSFPv2, Multicast routing, Warm Spare (VRRP) - OSPF and Warm Spare do not operate concurrently, DHCP Server, DHCP Relay
IPv6 functionality	-
Security	IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring; ACL support (IPv4 & IPv6) and MAC whitelisting; Single-Host/Multi-Domain/Multi-Host/Multi Authentication
Dimensions (W, D, H), mm	484 x 487 x 44
Мounting option	Rackmount
Other	RJ45 Management port
Warranty	99 months
