P/N: MS225-24-HW

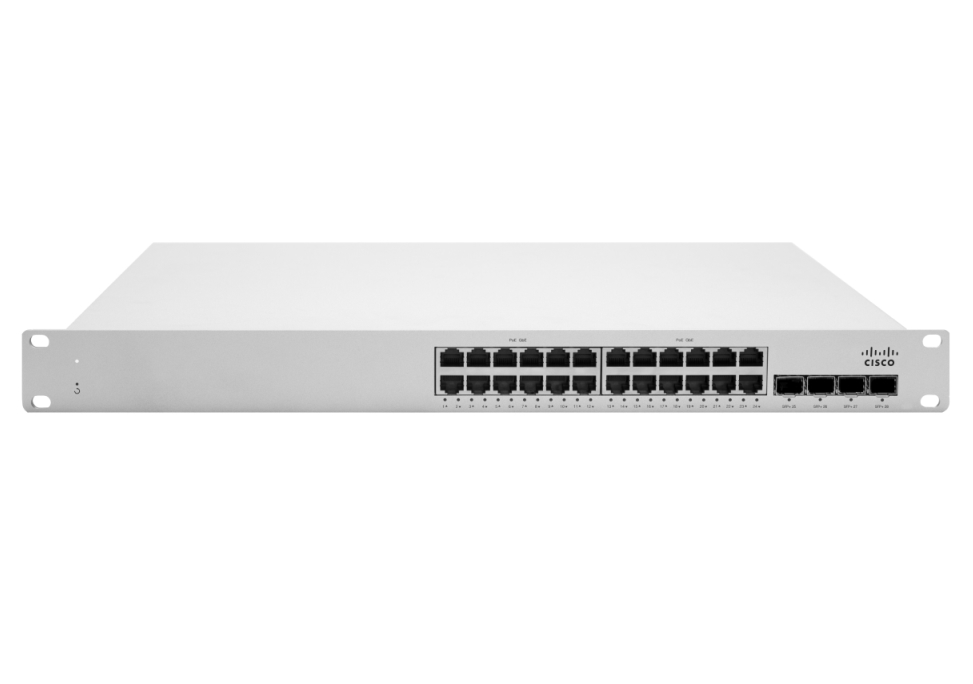

Commutator/ Switch, Cisco Meraki MS225-24 L2 Stck Cld-Mngd 24x GigE Switch

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Meraki MS225-24 L2 Stck Cld-Mngd 24x GigE Switch Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink ports	4x10GE SFP
Open (10GB) slots	No
Management	Managed via the Web with the Meraki cloud management platform; Integrated with Meraki Wireless and complete portfolio of IT products and solutions; SNMP and SYSLOG support for integration with other network management solutions
Stackable	2 x stacking ports; Physically stack up to 8 switches with 80 Gbps of stacking bandwidth; Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Fans	Fanless design
Power supply	Fixed internal: 100 - 240 VAC, 47-63 Hz; External Redundant Power Option - Cisco RPS chassis (PWR-RPS2300)
Routing	Layer 3 Lite
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	128 Gbps
Throughput, Mpps	95.24 Mpps
MAC addresses	16000 MAC address table size
VLAN (number, standards)	802.1Q VLAN and trunking support for up to 4094 VLANs
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab
L3 network standards	Static routing
IPv6 functionality	-
Security	Integrated multi-factor authentication for Dashboard management; Role-based access control (RBAC) with granular device and configuration control; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; IPv4 and IPv6 ACLs
Dimensions (W, D, H), mm	485 x 250 x 44
Мounting option	Desktop/Rackmount
Other	RJ45 Management port
Warranty	99 months
