P/N: MS120-8-HW

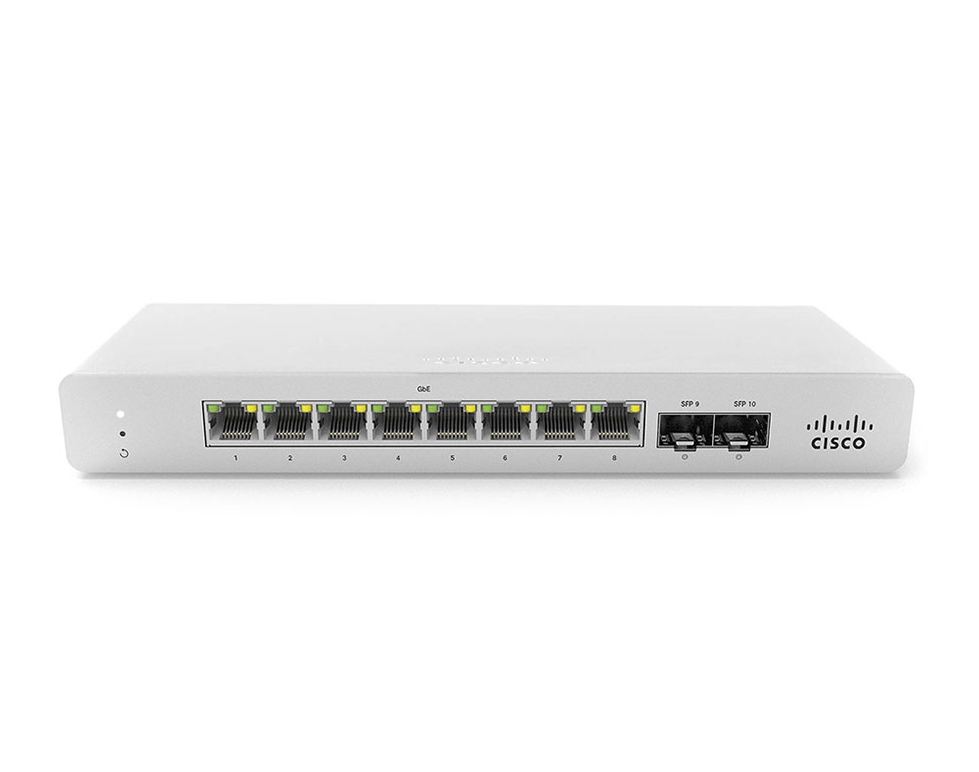

Commutator/ Switch, Cisco Meraki MS120-8 1G L2 Cloud Managed 8x GigE Switch

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Managed via the Web with the Meraki cloud management platform; Integrated with Meraki Wireless and complete portfolio of IT products and solutions; SNMP and SYSLOG support for integration with other network management solutions
Stackable	Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Fans	Fanless design
Power supply	External Power Supply: DC 12V/2.5A, 30W
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	20 Gbps
Throughput, Mpps	14.88 Mpps
MAC addresses	16000 MAC address table size
VLAN (number, standards)	802.1Q VLAN and trunking support for up to 4094 VLANs
QoS	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab
L3 network standards	-
IPv6 functionality	-
Security	Integrated multi-factor authentication for Dashboard management; Role-based access control (RBAC) with granular device and configuration control; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; IPv4 and IPv6 ACLs
Dimensions (W, D, H), mm	222 x 150 x 28
Мounting option	Desktop
Warranty	99 months
