P/N: C9500-40X-A

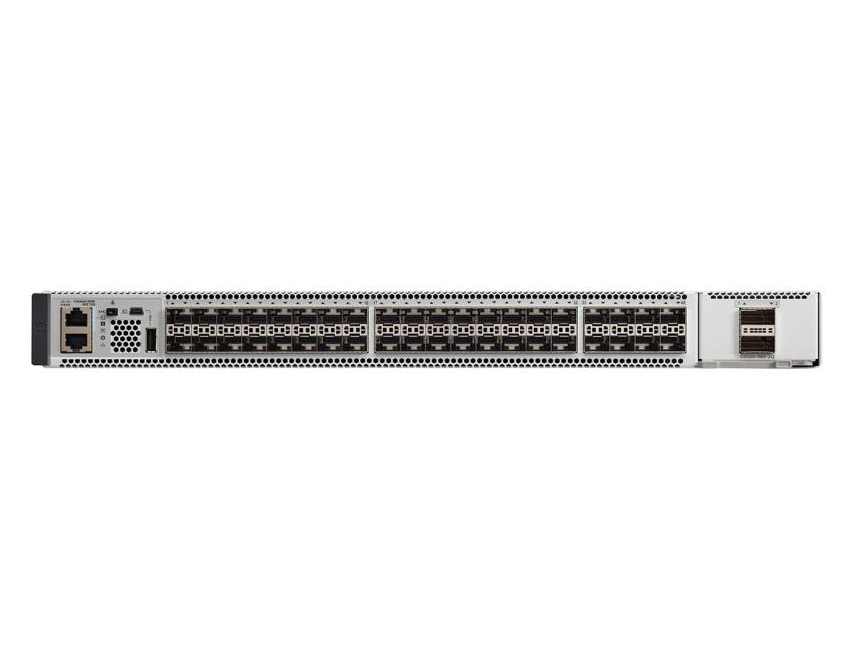

Commutator/ Switch, Cisco Catalyst 9500 40-port 10G switch, NW Adv. License

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9500 40-port 10G switch Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	40
Мain ports, type	40x10GE SFP
Power Over Ethernet (PoE)	No
Uplink ports	0
Open (10GB) slots	1 open module slot: Support two optional uplink modules (C9500-NM-8X=, C9500-NM-2Q=)
Management	SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable	StackWise Virtual
Fans	Five field-replaceable variable-speed fans
Power supply	Dual 1+1 redundant power supplies, Default power supply: PWR-C4-950WAC-R
Routing	Layer 3 Advanced
Memory (Flash, RAM)	Flash memory: 16 GB; RAM: 16GB DRAM
Routing/Switching capacity, Gbps	480 Gbps
Throughput, Mpps	720 Mpps
MAC addresses	64000 MAC address table size
VLAN (number, standards)	VLAN IDs: 4000; IEEE 802.1Q VLAN
QoS	Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR).
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
L3 network standards	Advanced IP unicast routing protocols: OSFP, EIGRP, BGPv4, IS-ISv4
IPv6 functionality	IPv6 routing; IPv6 addressing; Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration; IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Security	Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
Dimensions (W, D, H), mm	445 x 547 x 44
Мounting option	Rackmount, 1 RU
Other	Задължителен е минимум 3-годишен лиценз DNA Advantage.
Warranty	99 months
