P/N: DGS-1210-52

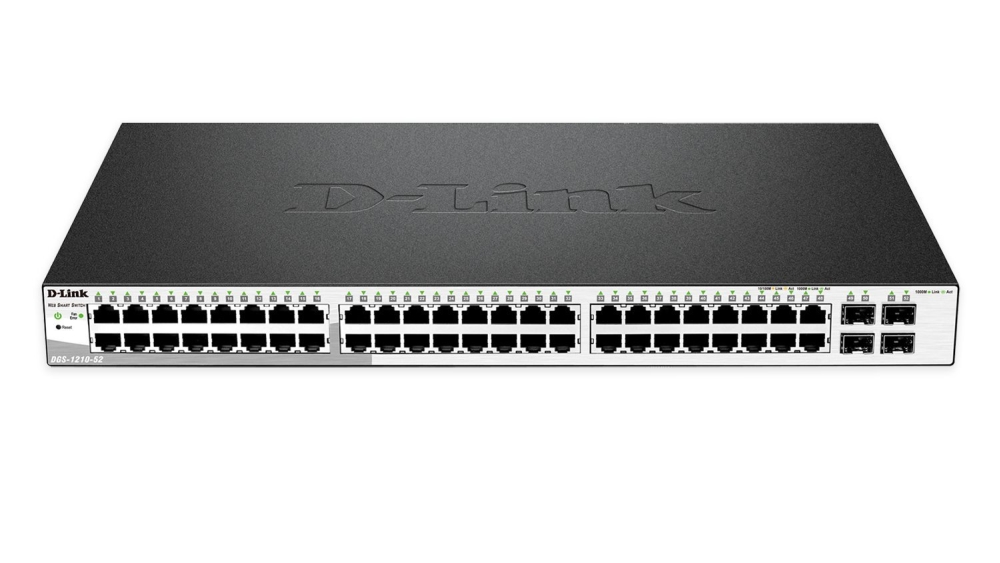

Commutator/ Switch, D-Link 48 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports

D-LINK мрежови продукти >> D-Link 48 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	52
Мain ports, type	48x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink ports	4xSFP
Open (10GB) slots	No
Management	Web-based GUI, D-Link Network Assistant Utility, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP v1/v2c/v3, SNMP Trap, Backup/Upgrade firmware, Smart Wizard, Upload/Download Configuration file, RMONv1, Trusted Host, ICMP v6, SNTP
Stackable	No
Fans	Low speed: 39.8 dBA, High speed: 49.2 dBA
Power supply	Internal Universal Power Supply: 100 - 240 VAC, 50/60 Hz
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	104 Gbps
Throughput, Mpps	77.4 Mpps
MAC addresses	16000 MAC address table size
VLAN (number, standards)	IEEE 802.1Q; VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs; Asymmetric VLAN; Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI; Auto Surveillance VLAN
QoS	802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR); Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps); QoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
L3 network standards	-
IPv6 functionality	IPv6 Ready: Fully IPv6 compatible and ready for enterprise deployment, giving you a head start on the next Internet standards evolution
Security	Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (Smart Binding), 802.1X Port-based Access Control, ARP Spoofing Prevention, Traffic Segmentation, SSH v2, SSL, Port Security
Dimensions (W, D, H), mm	440 x 210 x 44
Мounting option	Rackmount
Warranty	99 months
