P/N: DS-3T1506HP-SI-4P2F

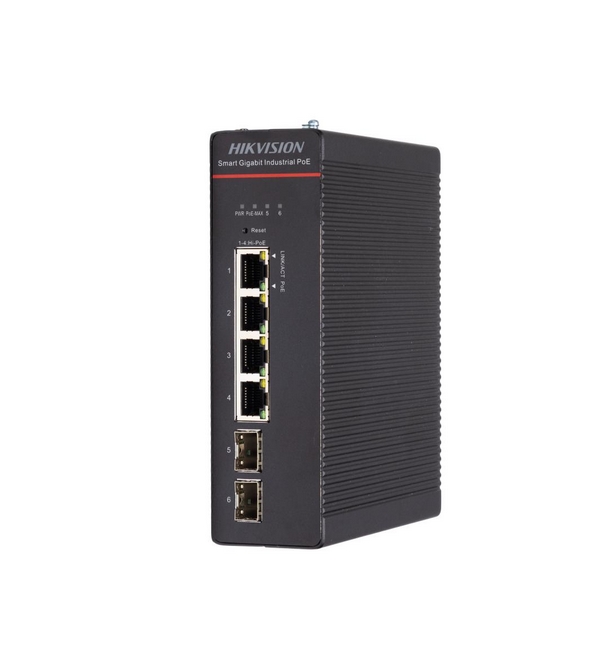

Комутатор, HikVision Industrial Smart Managed POE Switch, 4 x Gigabit PoE port, 2 x Gigabit fiber optical port, PoE Power Budget 300 W, Up to 300 m Long-range Transmission, 6 kV Surge Protection, -40 °C to 75 °C wide temperature range

HikVision Industrial Smart Managed POE Switch, 4 x Gigabit PoE port, 2 x Gigabit fiber optical port, PoE Power Budget 300 W, Up to 300 m Long-range Transmission, 6 kV Surge Protection, -40 °C to 75 °C wide temperature range

HikVision HiWatch Series >> HikVision Industrial Smart Managed POE Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	6
Основни портове, тип	4x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3bt PoE Standard; Hi-PoE: Ports 1 to 4; Max. Port Power: 90 W; PoE Power Budget: 300 W
Uplink портове	2xSFP
Свободни (10GB) слотове	No
Управление	Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client; SNMP v1/v2c for third-party management platform access; Port mirroring
Stackable	No
Fans	Fanless design
Захранване	48 V DC, 57 A; 52 V~57 V recommended input voltage to ensure stable power supply; Support dual power inputs and hot backup; Max. Power Consumption: 303 W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	Whole-Device Performance: 20 Gbps, Port Performance: 12 Gbps
Пропускателна способност, Mpps	Whole-Device Performance: 14.88 Mpps, Port Performance: 8.93 Mpps
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration, Support SP and WRR priority scheduling modes
L2 мрежови стандарти	IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	6 kV Surge Protection, STP/RSTP/ERPS loop prevention and storm control, cable detection to locate failure, DHCP snooping, ACL, IPSG
Размери (Ш, Д, В), mm	155.00 x 46.00 x 130.00 mm
Опция за монтаж	Desk-Mounted, Rail
Гаранция	24 месеца
