P/N: DS-3E2528-HI-24T4F

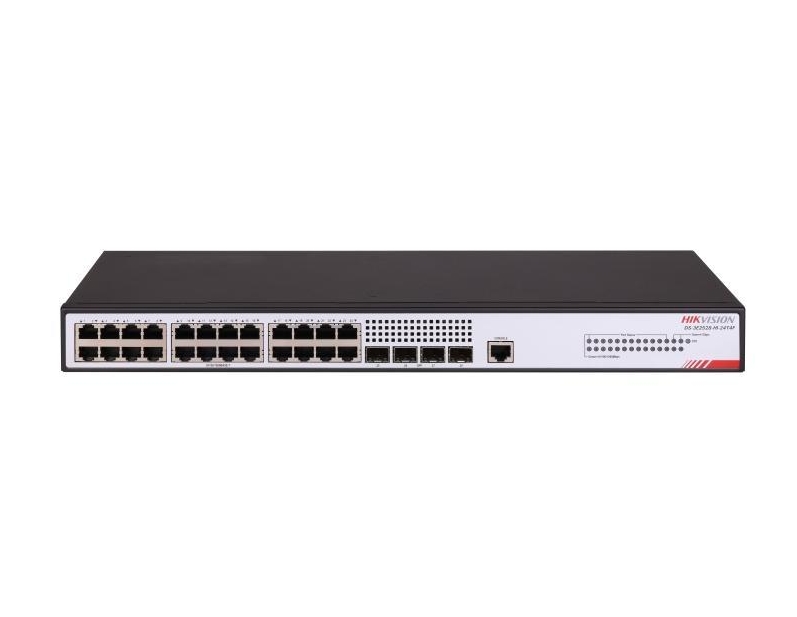

Комутатор, HikVision 24 GE RJ45, 4 GE SFP, Smart L2+ Switch, 24 x Gigabit RJ45 port, 4 x Gigabit fiber optical port, switching capacity 56 Gbps, 6 kV Surge Protection

HikVision 24 GE RJ45, 4 GE SFP, Smart L2+ Switch, 24 x Gigabit RJ45 port, 4 x Gigabit fiber optical port, switching capacity 56 Gbps, 6 kV Surge Protection

HikVision HiWatch Series >> HikVision 24 GE RJ45 Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink портове	4xSFP
Свободни (10GB) слотове	No
Управление	Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files; SNMP V1/V2c/V3; sFlow; NQA; NTP clock; System operating logs; Command line configuration via console/AUX Modem/Telnet/SSH
Stackable	yes
Fans	Fanless design
Захранване	100~240 V AC, 50/60 Hz; Max. Power Consumption: 21 W
Routing	Layer 3 Lite
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	Whole-Device Performance: 56 Gbps, Port Performance: 56 Gbps
Пропускателна способност, Mpps	Whole-Device Performance: 41.66 Mpps, Port Performance: 41.66 Mpps
MAC адреси	16 000 MAC address table size
VLAN (брой, стандарти)	802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP
QoS	SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
L2 мрежови стандарти	IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
L3 мрежови стандарти	Static routing
IPv6 functionality	IPv6 static routing and dual-stack; DHCPv6 Client and DHCPv6 Snooping; ND and PMTU; IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
Сигурност	Hierarchical user management and password protection, SSH, Specific IP address based FTP logging and password mechanism, MAC address limit, IP+MAC+PORT binding, IEEE 802.1x, Radius and AAA, SNMPv3, Broadcast suppression; Prevent attacks from ARP
Размери (Ш, Д, В), mm	440.00 x 160.00 x 43.60 mm
Опция за монтаж	Rackmount
Гаранция	24 месеца
