P/N: DS-3E1526P-EIV2

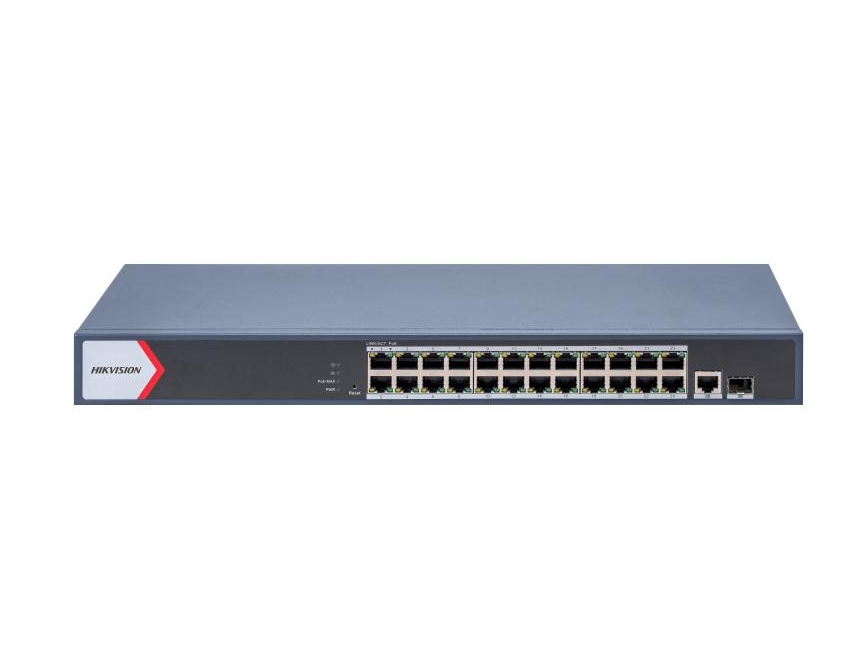

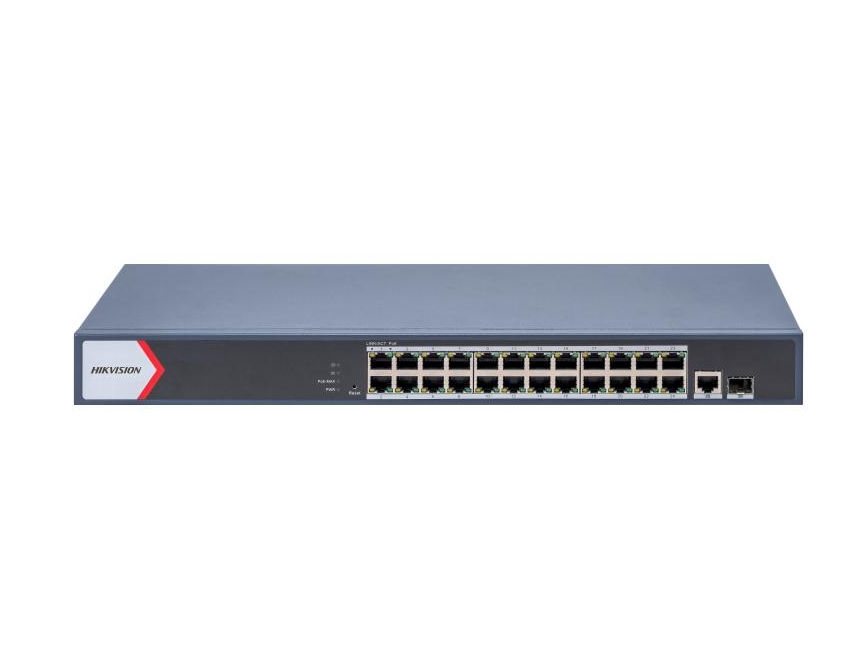

Комутатор, HikVision 24 Port Gigabit Smart POE Switch, 24 x Gigabit PoE port,1 x Gigabit RJ45 port, 1 x Gigabit fiber optical port, Power Budget 370W, Up to 300 m Long Range PoE Transmission, 6 kV Surge Protection

HikVision 24 Port Gigabit Smart POE Switch, 24 x Gigabit PoE port,1 x Gigabit RJ45 port, 1 x Gigabit fiber optical port, Power Budget 370W, Up to 300 m Long Range PoE Transmission, 6 kV Surge Protection

HikVision HiWatch Series >> HikVision 24 Port Gigabit Smart POE Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	26
Основни портове, тип	24x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 24; Max. Port Power: 30 W; PoE Power Budget: 370 W
Uplink портове	2x10/100/1000Base-T
Свободни (10GB) слотове	No
Управление	Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client, Port mirroring
Stackable	No
Fans	Fanless design
Захранване	100~240 V AC, 50/60 Hz, Max. 6.3 A; Max. Power Consumption: 400 W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	56 Gbps
Пропускателна способност, Mpps	41.66 Mpps
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 32 VLAN
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration, Support SP and WRR priority scheduling modes
L2 мрежови стандарти	IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab, IEEE 802.3az
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	6 kV Surge Protection, STP/RSTP loop prevention, cable detection to locate failure, DHCP snooping
Размери (Ш, Д, В), mm	440.0 x 220.8 x 44.0 mm
Опция за монтаж	Rackmount
Гаранция	24 месеца
