P/N: DGS-1530-52P

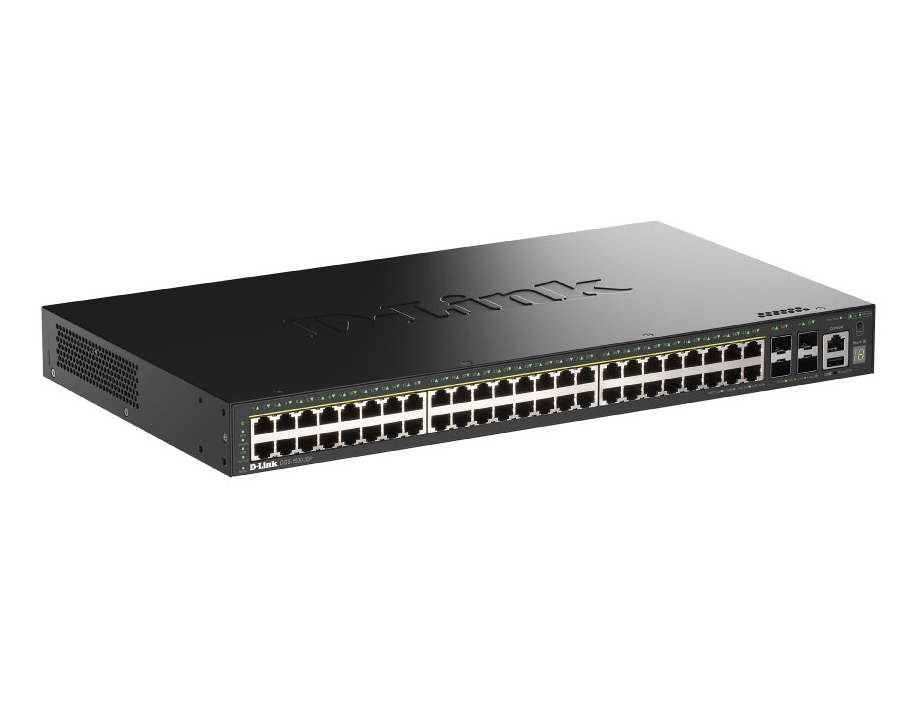

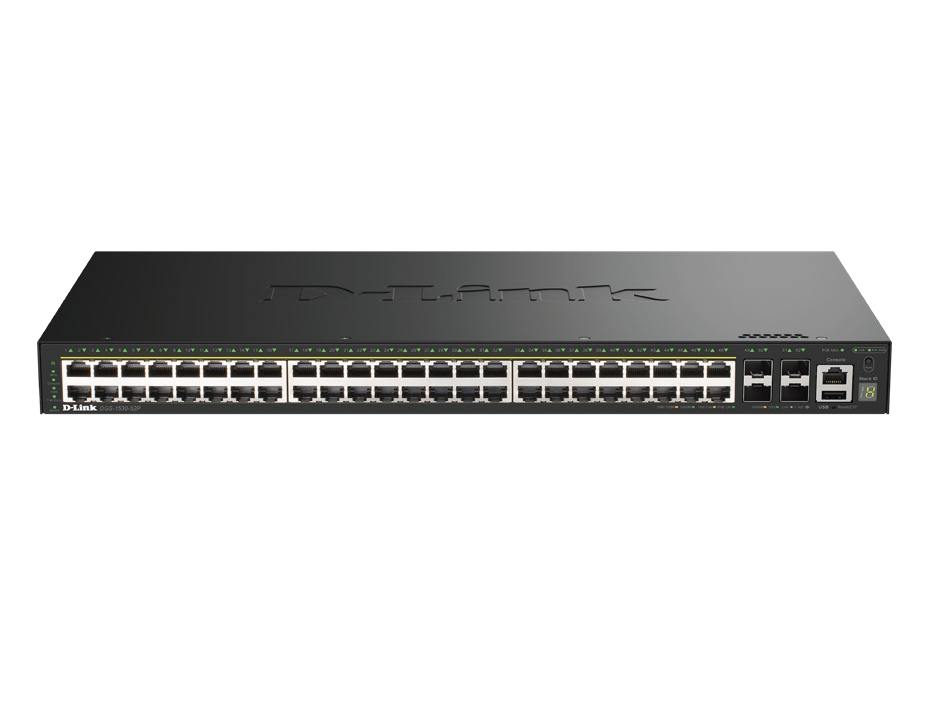

Комутатор, D-Link 48 Ports GE PoE (30W) + 4 Ports 10G SFP+ Smart Managed Switch, 370W

D-LINK мрежови продукти >> D-Link 48 Ports GE PoE (30W) + 4 Ports 10G SFP+ Smart Managed Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	52
Основни портове, тип	48x10/100/1000Base-T
Power Over Ethernet (PoE)	Ports 1 to 48 compliant with both IEEE 802.3af/802.3at, Maximum PoE Budget: 370 W (740 W with DPS-700 RPS redundant power supply)
Uplink портове	4x10GE SFP
Свободни (10GB) слотове	No
Управление	Web-based GUI, Command Line Interface (CLI), Telnet server/client, Command logging, SNMP v1/v2c/v3 (supports IPv4), SNMP Traps, System log, SMTP (supports IPv4), RMON v1/v2, 802.1AB LLDP, Flash file system, Multiple image, D-Link Discovery Protocol (DDP)
Stackable	Physical Stacking: Up to 80 Gbps stacking bandwidth, Up to 9 switches in a stack, Ring/chain topology support; D-Link Single IP Management (SIM): Up to 32 units per virtual stack
Fans	3 x Smart fan
Захранване	AC Input: 100 to 240 VAC 50/60 Hz, Max Power Consumption: 482 W (PoE on), 59.2 W (PoE off); Redundant Power Supply
Routing	Layer 3 Lite
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	176 Gbps
Пропускателна способност, Mpps	130.95 Mpps
MAC адреси	16000 MAC address table size
VLAN (брой, стандарти)	VLAN group (Max. 4094 VLAN), Port-based/MAC-based VLAN, GVRP (Max. 255 dynamic VLANs), 802.1v Protocol VLAN, Double VLAN (Port-based/Selective Q-in-Q), 802.1Q tagged VLAN, ISM VLAN, VLAN translation, VLAN trunking, Voice VLAN, Private VLAN
QoS	802.1p; 8 queues per port; Queue Handling: Strict Priority (SP), Weighted Round Robin (WRR), Strict + WRR, Deficit Round Robin (DDR), Weighted Deficit Round Robin (WDRR); Bandwidth control: Port/Flow-based (ingress/egress, min. granularity 64 Kbps)
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1AX, IEEE 802.3ad, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1AB, IEEE 802.3af, IEEE 802.3at
L3 мрежови стандарти	Static route: 64 IPv4 static routes, 32 IPv6 static routes
IPv6 functionality	IPv6 Route Advertisement (RA) Guard, IPv6 ND snooping, IPv6 ND inspection, IPv6 traffic class, IPv6 Flow Label, IPv6 Neighbor Discovery (ND)
Сигурност	SSH v2, TLS 1.2, Port Security (Up to 6656 MAC addresses per port), Broadcast/multicast/unicast storm control, Traffic segmentation, D-Link Safeguard Engine, DHCP server screening, ARP spoofing prevention, BPDU/DoS attack prevention
Размери (Ш, Д, В), mm	440 x 308 x 44 mm
Опция за монтаж	Desktop or 19" Rack Mount (mounting brackets included)
Гаранция	99 месеца
