P/N: C9300LM-48UX-4Y-E

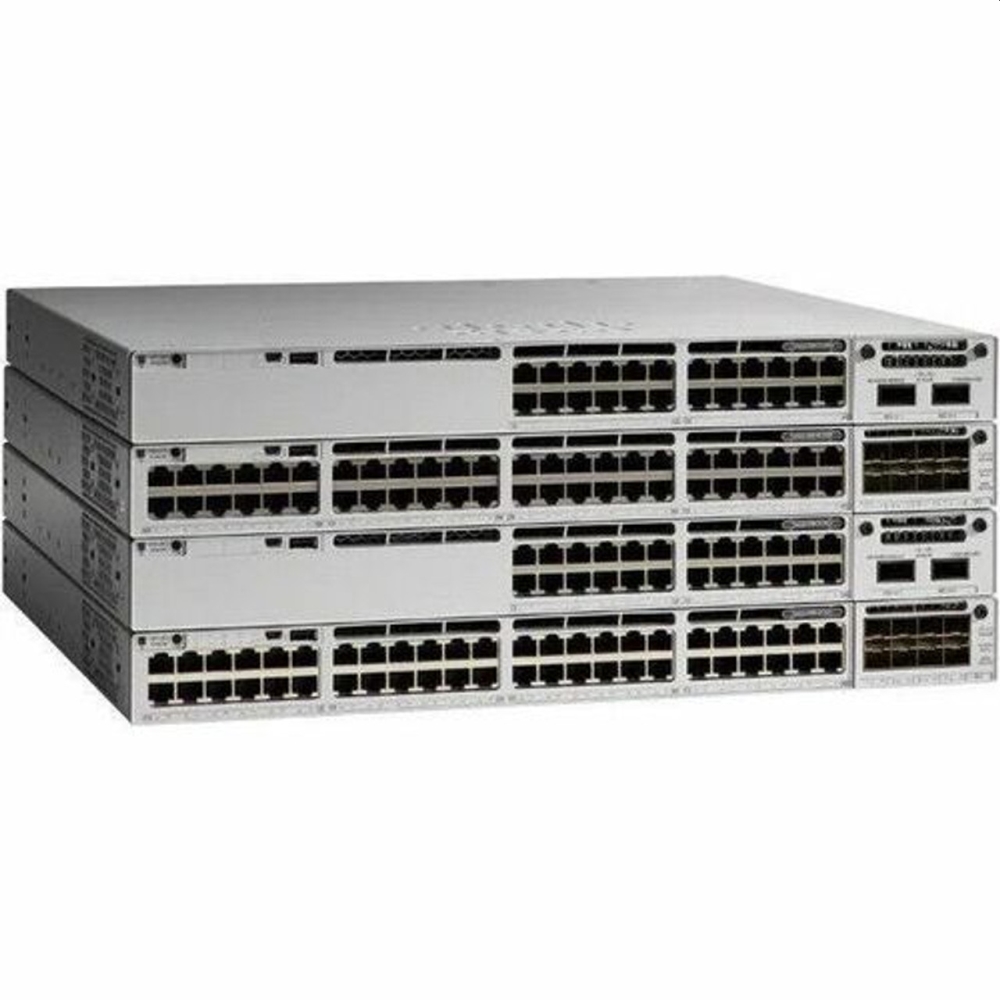

Комутатор, Cisco Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit copper, 40-port 1G, 4x 25G uplinks, Network Essentials

Задължителен е минимум 3-годишен лиценз DNA Advantage!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9300 mini 48-port UPOE Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	48
Основни портове, тип	8x 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40x 1G (1G/100M/10M)
Power Over Ethernet (PoE)	UPOE (60W per port) & IEEE 802.3bt type3 on all ports (24-port switch) or up to 30 ports (48-port switch)
Uplink портове	4x25G
Свободни (10GB) слотове	-
Управление	Cloud management and monitoring; WebUI
Stackable	Designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.
Fans	Three field-replaceable fans and support (N+1) redundancy.
Захранване	Redundant; Default AC power supply: 1100W AC
Routing	High-Performance IP routing; Total routed ports: 448
Памет (Flash, RAM)	DRAM: 8 GB; Flash: 16 GB; Packet buffer per SKU: 16 MB buffer for 24-or 48-port Gigabit Ethernet models
Капацитет за маршрутизиране/превключване, Gbps	440 Gbps, Switching capacity with stacking: 760 Gbps
Пропускателна способност, Mpps	327.36 Mpps; Forwarding rate with stacking: 565.44 Mpps
MAC адреси	32 000
VLAN (брой, стандарти)	VLAN IDs: 4094; IEEE 802.1Q VLAN
QoS	QoS scale entries: 5 120; Superior QoS (802.1p Class of Service (CoS), DSCP, SRR, CIR)
L2 мрежови стандарти	IEEE 802.3 ab/z/bz/an/x
L3 мрежови стандарти	IEEE 802.1D, RMON I and II standards, SNMPv1, v2c, and v3
IPv6 functionality	IPv6 routing entries: 16 000
Сигурност	ETA, SUDI, AES-256 MACsec encryption, IPsec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Cloud Security: Umbrella DNS Integration, ASAc
Размери (Ш, Д, В), mm	444 x 331 x 43 mm
Опция за монтаж	Rackmount
Други	Network Essentials
Гаранция	99 месеца
