P/N: DMS-3130-30TS

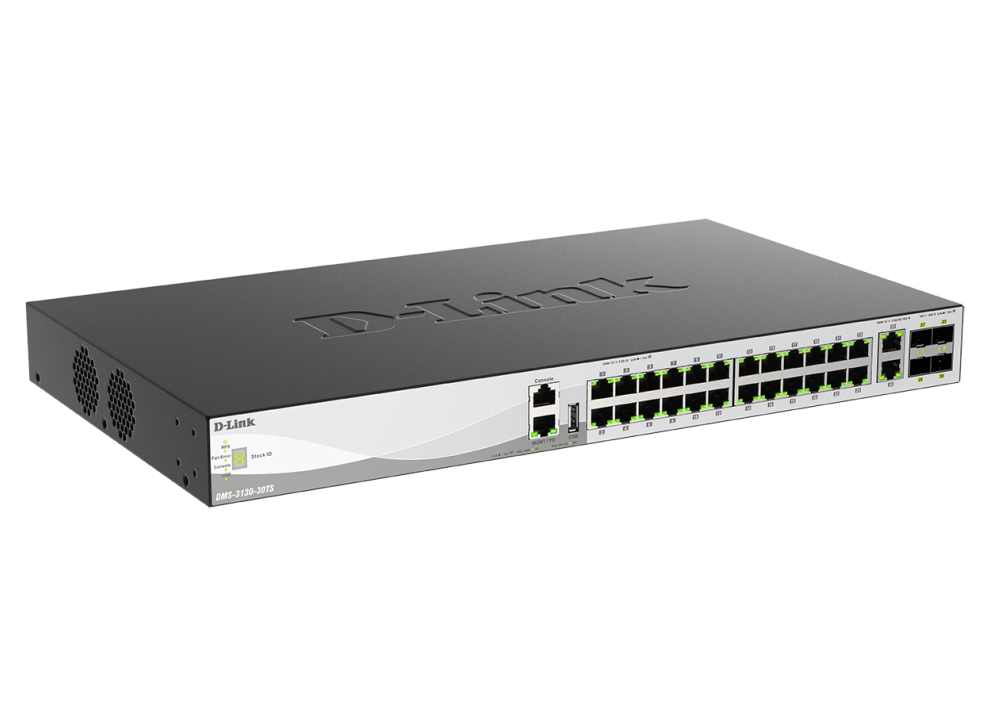

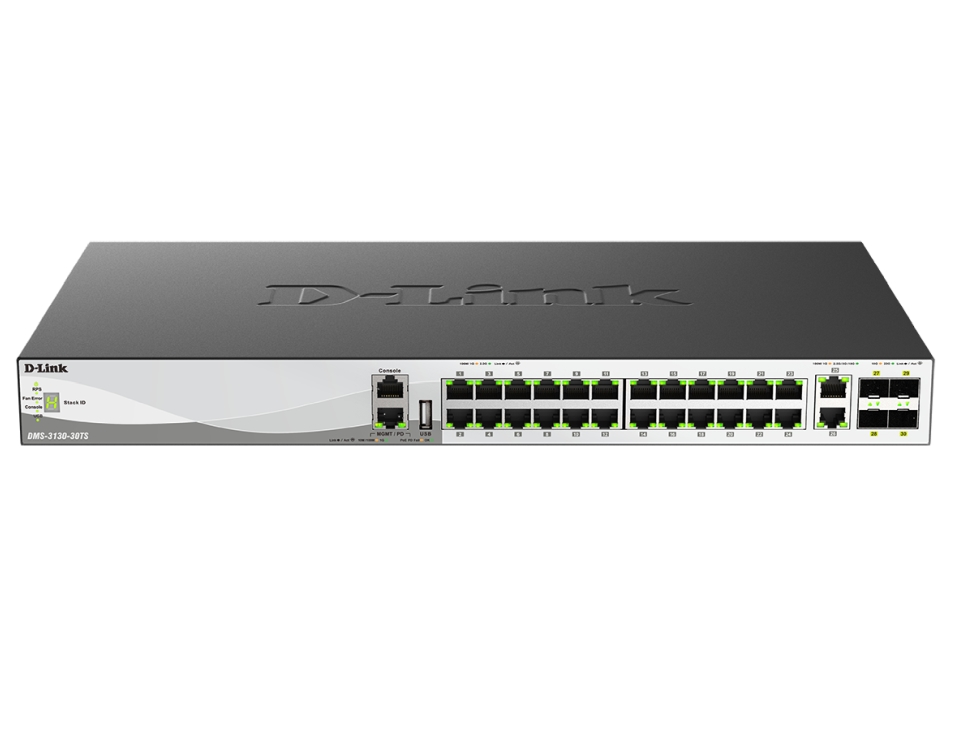

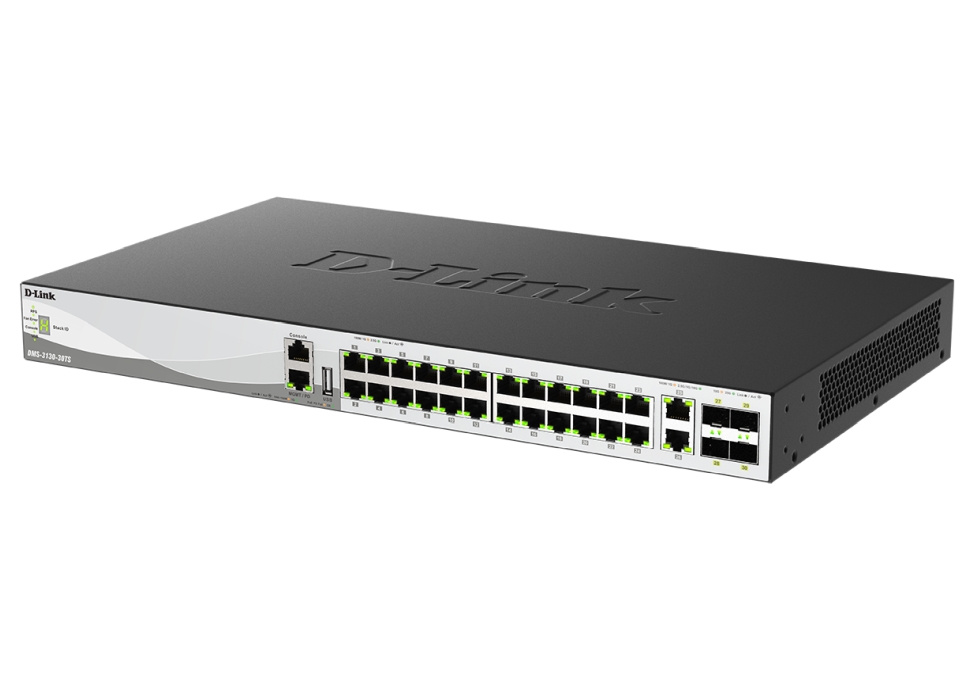

Комутатор, D-Link 24x100/1000/2500Base-T Layer 3 Stackable Managed Gigabit Switch with 2x10GBASE-T Ports and 4 x 25G SFP28 Ports

D-LINK мрежови продукти >> D-Link 24x100/1000/2500Base-T Layer 3 Stackable Managed Gigabit Switch with 2x10GBASE-T Ports and 4 x 25G SFP28 Ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	30
Основни портове, тип	24x10/100/1000/2500Base-T
Power Over Ethernet (PoE)	No
Uplink портове	2x10GBase-T, 4x10G/25G SFP28
Свободни (10GB) слотове	No
Управление	Web-based GUI, Command Line Interface (CLI), SNMP, RMON v1/v2, LLDP/LLDP-MED, BootP/DHCP Client, DHCP, Flash File System, D-Link Discover Protocol (DDP), Debug command, NTPv3/v4, Command Logging, Ping/Traceroute for IPv4/IPv6, Password recovery/encryption
Stackable	Physical stacking: Up to 9 units per stack, Up to 200 Gbps stacking bandwidth, Ring/chain topology support; Virtual stacking: D-Link Single IP Management (SIM), Up to 32 units per virtual stack; 4 Stacking Ports
Fans	2x Smart fan

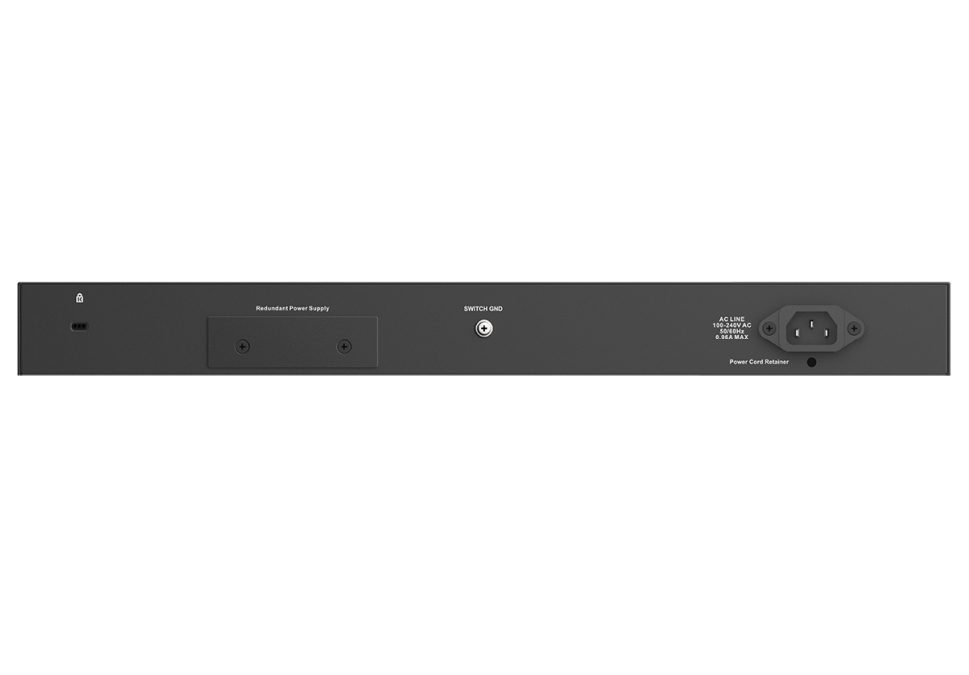

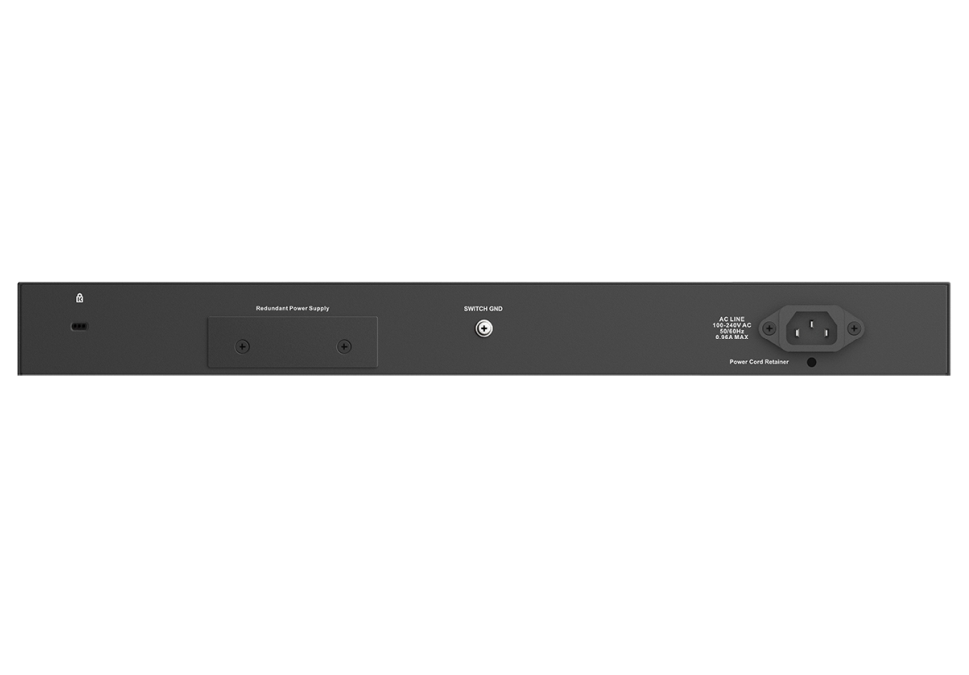

Захранване	Power Input: 100 to 240 V AC 50/60 Hz, 802.3bt Type 4 PD MGMT port; Max Power Consumption: Max.: 74.26 W, Standby: 43.84 W
Routing	Layer 3 Advanced
Памет (Flash, RAM)	Packet Buffer Memory: 4 MB
Капацитет за маршрутизиране/превключване, Gbps	360 Gbps
Пропускателна способност, Mpps	268 Mpps
MAC адреси	32000 MAC address table size
VLAN (брой, стандарти)	VLAN Group: Max. 4K VLAN groups, Max. 1~4094 VIDs; GVRP (Max. 4K dynamic VLAN groups); Double VLAN (Q-in-Q); 802.1Q; Port-based VLAN; 802.1v Protocol-based VLAN; MAC-based VLAN; VLAN translation; Multicast/Asymmetric/Private VLAN; VLAN Trunking;Super VLAN
QoS	802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR), Strict + WRR, Weighted Deficit Round Robin (WDRR); Policy Map - Remark 802.1p priority, Remark IP precedence/DSCP; Congestion Control - WRED
L2 мрежови стандарти	IEEE 802.1p, IEEE 802.1X, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1v
L3 мрежови стандарти	Static Route, RIPv1/v2/ng, OSPFv2/v3
IPv6 functionality	IPv6 traffic class, IPv6 Flow Label, IPv6 Snooping, IPv6 Route Advertisement (RA) Guard, IPv6 ND Inspection
Сигурност	Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, Port Security - Supports up to 64 MAC addresses per port, Dynamic ARP Inspection (DAI), DHCPv6 Guard, IP Source Guard, Duplicate Address Detection (DAD), Traffic Segmentation, SSL, SSH
Размери (Ш, Д, В), mm	440 x 250 x 44 mm
Опция за монтаж	Rackmount
Други	10/100/1000BASE-T RJ-45 port for out-of-band CLI management, 10/100/1000BASE-T RJ-45 port for out-of-band IP management, 1x USB 2.0 Type A port
Гаранция	99 месеца
