P/N: C9200L-24PXG-4X-E

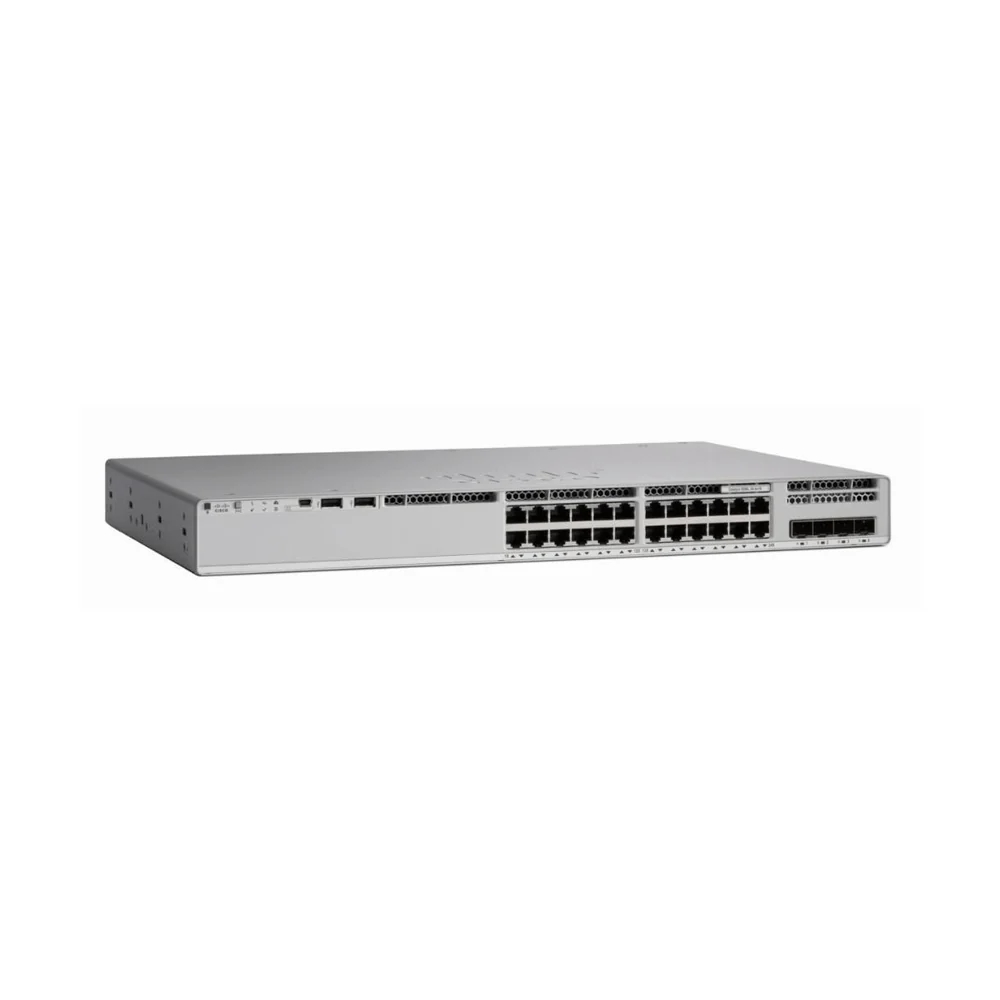

Commutator/ Switch, Cisco Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9200L 24-port 8xmGig Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Power Over Ethernet (PoE)	IEEE 802.3at PoE+ (up to 30W per port); Available PoE power with single primary power supply (PWR-C5-600WAC): 370W
Uplink ports	4x 1/10G fixed uplinks
Open (10GB) slots	-
Management	WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience
Stackable	Stacking bandwidth: 160 Gbps
Fans	Fixed redundant
Power supply	PWR-C5-600WAC
Routing	Advanced
Memory (Flash, RAM)	Flash: 4 GB; DRAM: 4 GB; Packet buffer: 12MB
Routing/Switching capacity, Gbps	272 Gbps; Switch capacity with Stacking: 352 Gbps
Throughput, Mpps	214.28 Mpps; Forwarding rate with Stacking: 262 Mpps
MAC addresses	32 000
VLAN (number, standards)	4; VLAN IDs: 4096; CISCO-PRIVATE-VLAN-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP- MIB, IEEE 802.1Q VLAN
QoS	Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, SRR scheduling, Committed Information Rate (CIR), eight egress queues per port
L2 network standards	IEEE 802.1Q, IEEE 802.1D (STP); RSTP, IEEE 802.1w; MSTP, IEEE 802.1s; PVLAN; IEEE 802.3ad (LACP); LLDP; VTP; BPDU Guard
L3 network standards	IP Routing (Static, RIP, OSPF, EIGRP), VLAN Routing (SVI, Routing Between VLANs); Multicast Routing (PIM, IGMP); BGP; IPv6; HSRP; VRRP; GLBP; ACLs; PBR
IPv6 functionality	IPv6 routing entries: 2000; Ipv6 routing (using OSPFv3 and EIGRPv6); IPv6 addressing
Security	AES-128 MACsec encryption; Secure Segmentation with Software-Defined Access; Cloud Security - Umbrella Integration
Dimensions (W, D, H), mm	445 x 350 x 44 mm
Мounting option	Rackmount
Other	Network Essentials licensing
Warranty	99 months
