P/N: DS-3T1310P-SI/HS

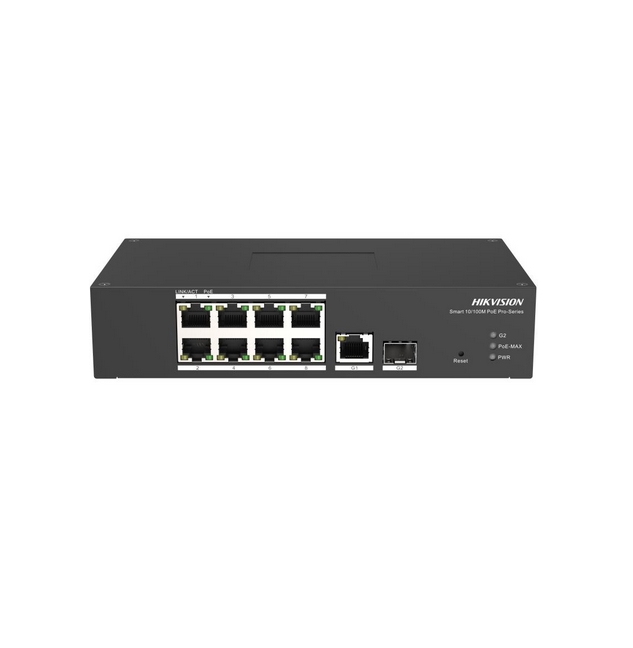

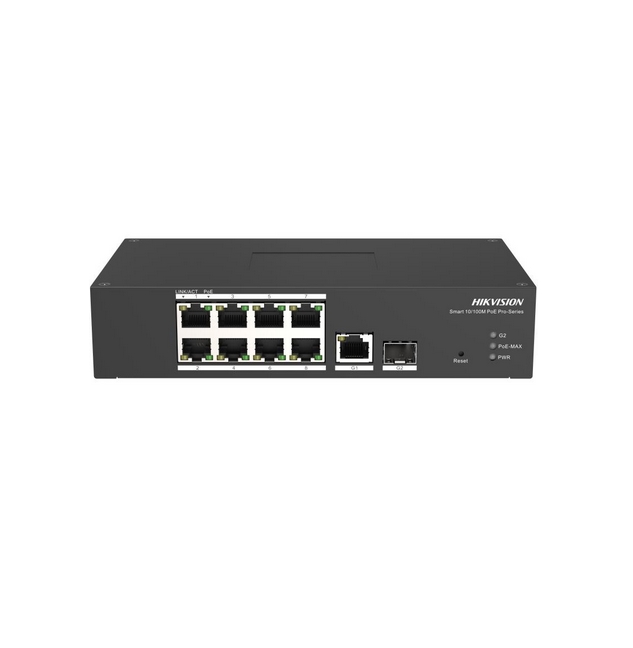

Комутатор, HikVision 10 Port Fast Ethernet Smart Harsh POE Switch, 8x 10/100 Mbps PoE port, 1x Gigabit RJ45 port, 1x Gigabit fiber optical port, Power Budget 110W, Up to 300 m Long Range PoE Transmission, -30 °C to 65 °C wide temperature range

HikVision 10 Port Fast Ethernet Smart Harsh POE Switch, 8x 10/100 Mbps PoE port, 1x Gigabit RJ45 port, 1x Gigabit fiber optical port, Power Budget 110W, Up to 300 m Long Range PoE Transmission, -30 °C to 65 °C wide temperature range

HikVision HiWatch Series >> HikVision 10 Port Fast Ethernet Smart Harsh POE Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	10
Основни портове, тип	8x10/100Base-TX
Power Over Ethernet (PoE)	IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 8; Max. Port Power: 30 W; PoE Power Budget: 110 W
Uplink портове	1x10/100/1000Base-T, 1xSFP
Свободни (10GB) слотове	No
Управление	Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client
Stackable	No
Захранване	48 V DC, 2.5 A; Max. Power Consumption: 120 W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	Whole-Device Performance: 9.2 Gbps, Port Performance: 5.6 Gbps
Пропускателна способност, Mpps	Whole-Device Performance: 6.84 Mpps, Port Performance: 4.17 Mpps
MAC адреси	16000 MAC address table size
VLAN (брой, стандарти)	VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance; Support port-based priority configuration; Support SP, WRR priority schedule mode
L2 мрежови стандарти	IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	6 kV Surge Protection, STP/RSTP loop prevention, Cable detection, Port rate-limiting, Storm control, DHCP Snooping
Размери (Ш, Д, В), mm	197.0 x 114.2 x 42.2 mm
Опция за монтаж	Desk-Mounted, Rail
Гаранция	24 месеца
