P/N: JL809A

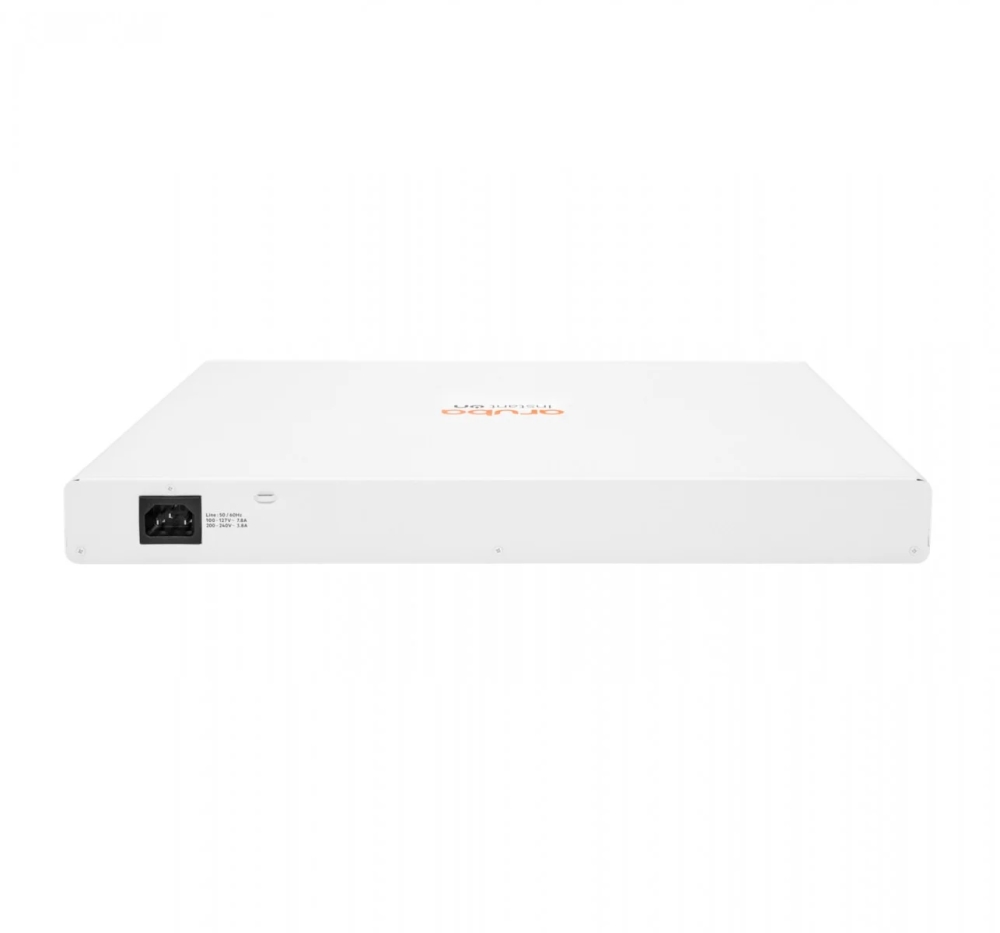

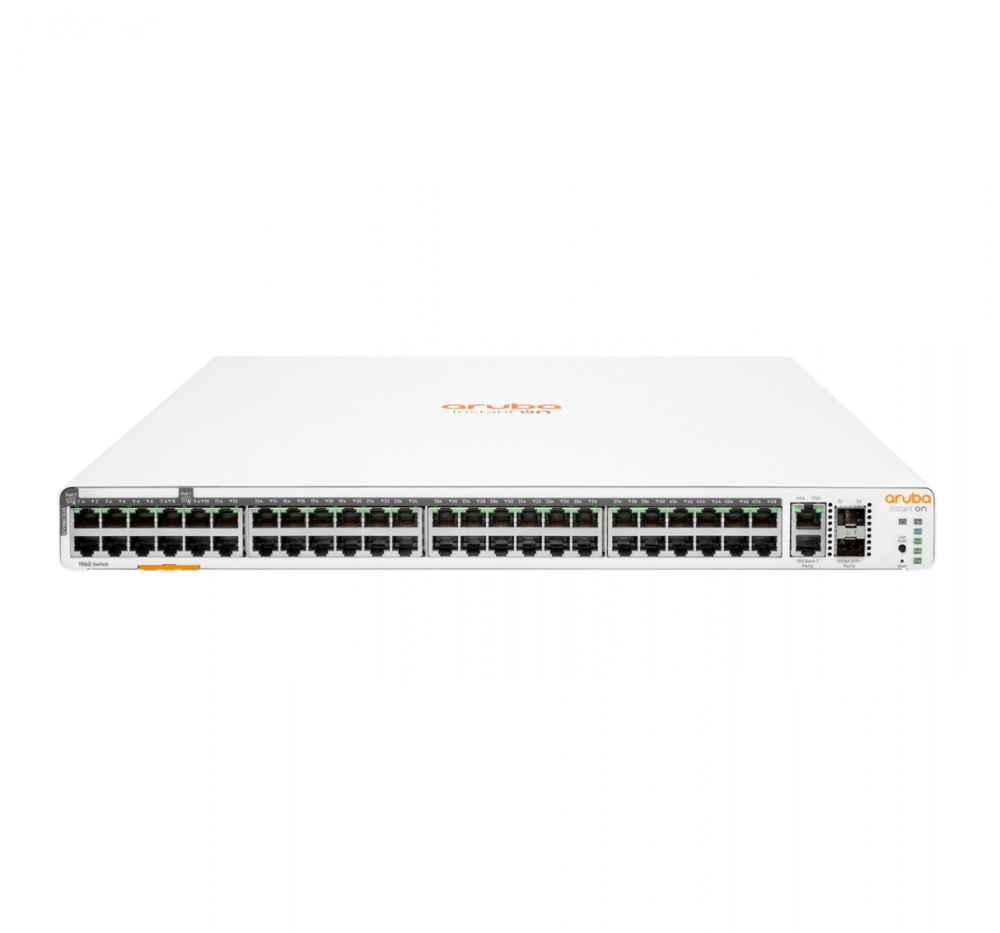

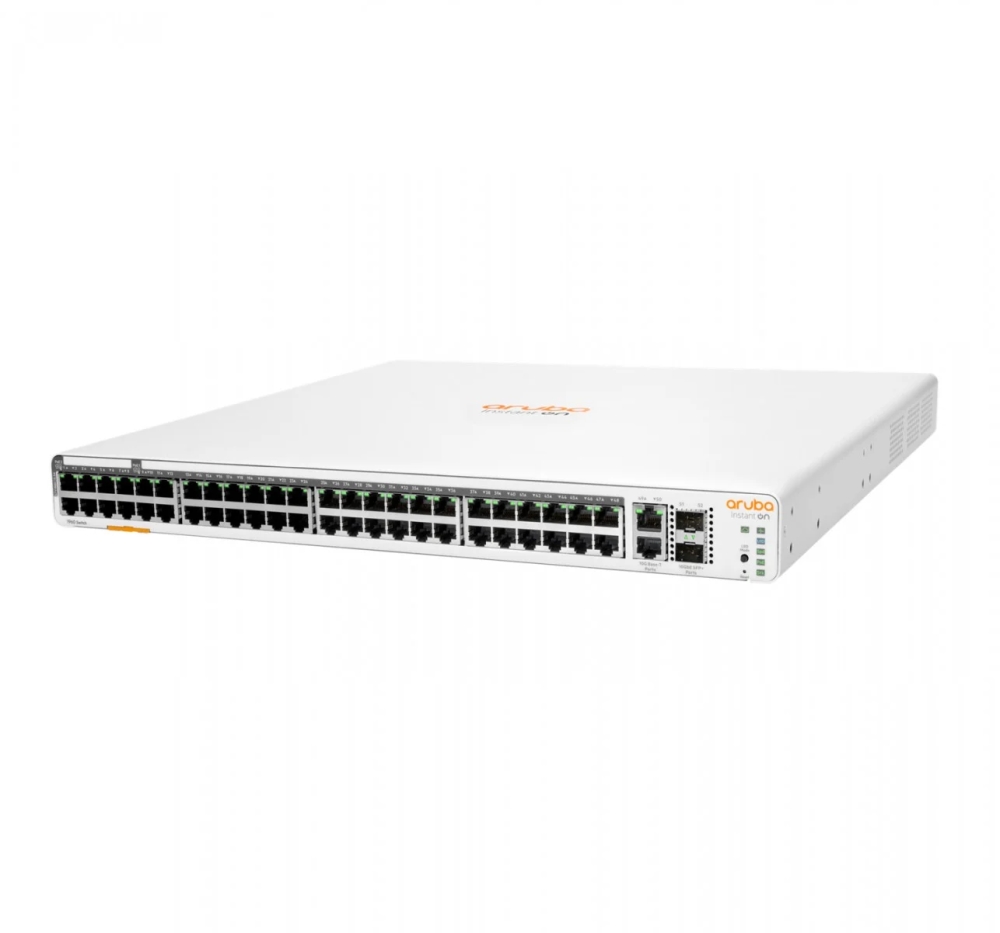

Комутатор, Aruba IOn 1960 48G 2XT 2XF 600W Sw

HP мрежови продукти >> Aruba IOn 1960 48G 2XT 2XF 600W Sw Препоръчителен сервиз
Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Характеристики

Суич, тип Fixed Port, Smart Managed
Общ брой портове 52
Основни портове, тип 48x10/100/1000Base-T
Power Over Ethernet (PoE) IEEE 802.2af, IEEE 802.2at, IEEE 802.2bt; Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE)
Uplink портове 2x SFP+ 10GbE ports, 2x 10GBASE-T ports
Свободни (10GB) слотове No
Управление Aruba Instant On Cloud; Web browser; SNMP Manager
Stackable True stacking, Hybrid stacking, Cloud-managed stacking
Fans Variable speed fans
Захранване Internal power supply: 100 - 127/200 - 240 VAC; Maximum power rating: 790/760 W, Current: 7.9A/0.5A; Frequency: 50/60 Hz
Routing Layer 3 IPv4 static routing
Памет (Flash, RAM) 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB
Капацитет за маршрутизиране/превключване, Gbps 176 Gbps
Пропускателна способност, Mpps 131 Mpps
MAC адреси 16000 MAC addres table size
VLAN (брой, стандарти) IEEE 802.1Q VLANs; VLAN support - Offers some of the benefits of both bridging and routing. VLANs partition the network into logical segments, which provide better administration, security, and multicast traffic management; Auto voice VLAN
QoS Traffic prioritization - provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or 802.1p classification. Sets the 802.1p/DSCP priority to queue mapping (8 queues). Supports SP or WRR queuing.
L2 мрежови стандарти IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.1X, IEEE 802.3az, IEEE 802.1D, IEEE 802.1W, IEEE 802.1S, IEEE 802.1AB, IEEE 802.1t, IEEE 802.3ac, IEEE 802.2af/at/bt
L3 мрежови стандарти Supports IPv4 static routing for up to 32 static routes and 8 VLAN routing interfaces on the access switch models and up to 512 static routes and 32 VLAN routing interfaces on aggregation model.
IPv6 functionality IPv6 Host mode - Enables switches to be managed and deployed at the IPv6 network’s edge, IPv6 routing, IPv6 DHCP relay
Сигурност TPM, RADIUS, Automatic VLAN assignment — RADIUS assigned VLANs, Port access control, Port security, ARP attack prevention, Automatic denial-of-service protection, Global Storm Control
Размери (Ш, Д, В), mm 442.5 x 402.8 x 44
Опция за монтаж Desktop/Rackmount
Гаранция 99 месеца

EAN: -
