P/N: JL675A

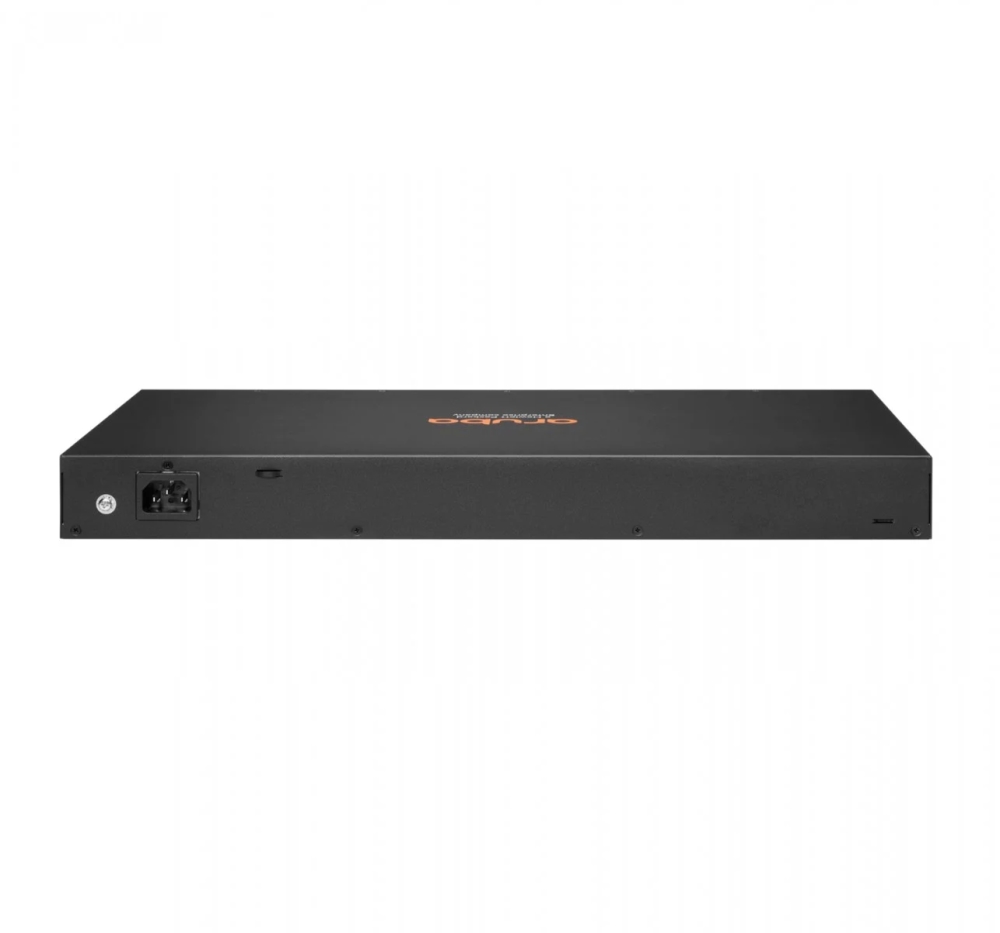

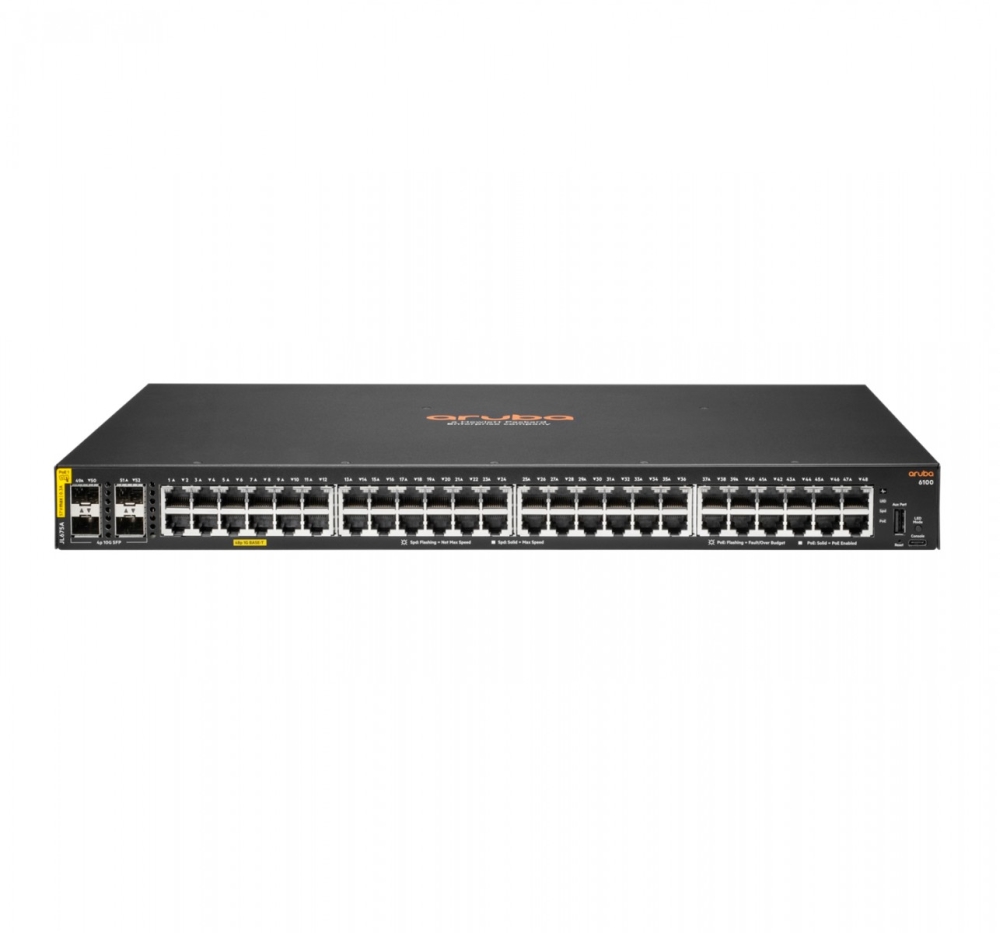

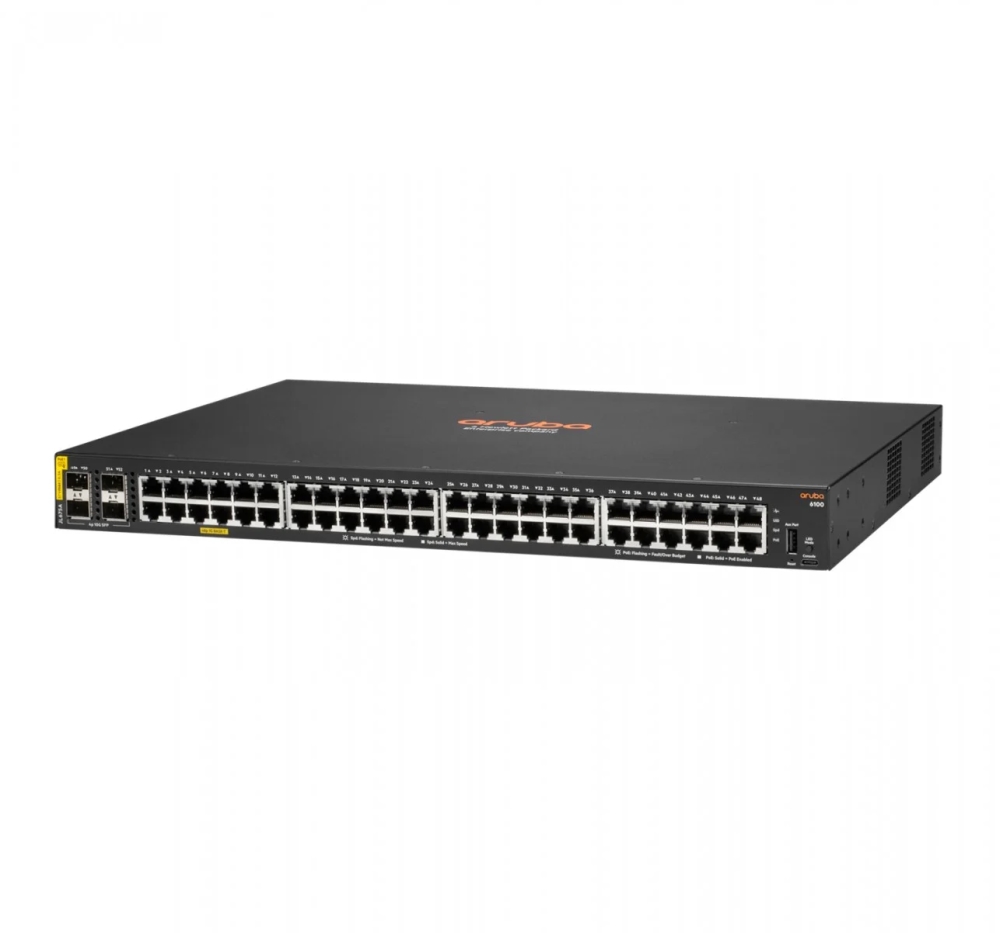

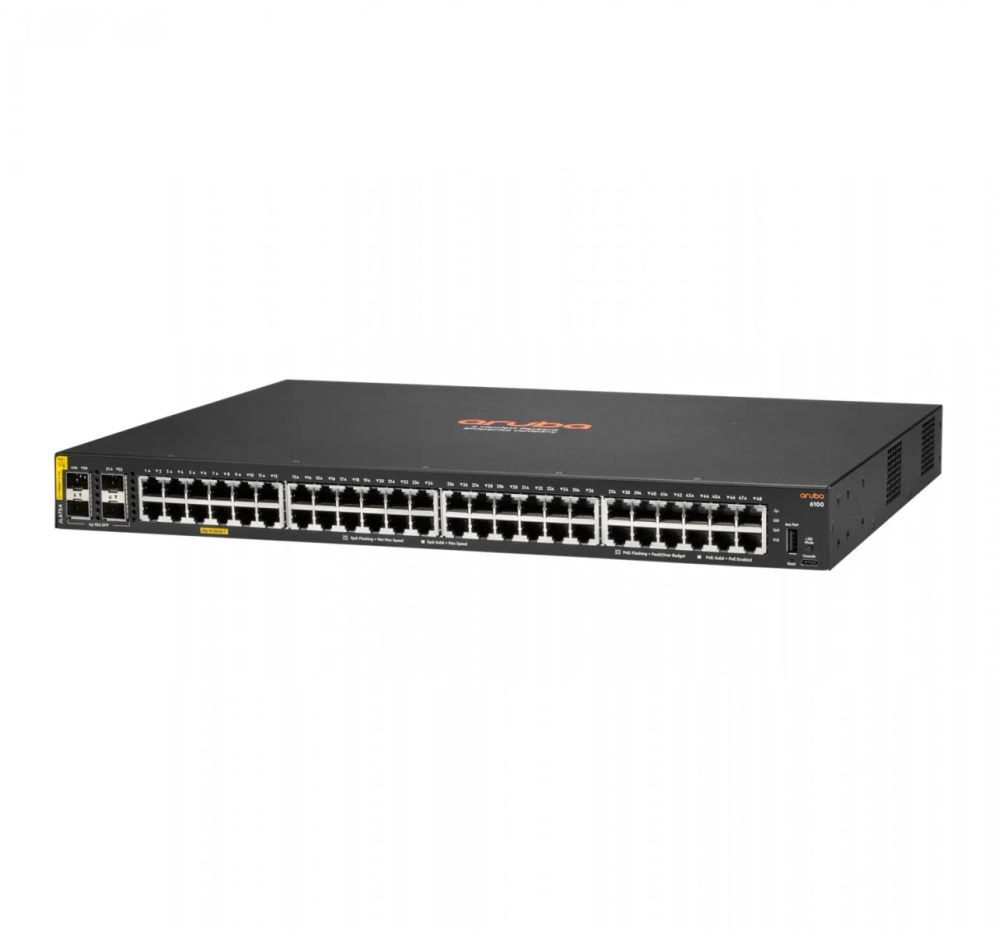

Комутатор, Aruba 6100 48G CL4 4SFP+ Swch

HP мрежови продукти >> Aruba 6100 48G CL4 4SFP+ Swch Препоръчителен сервиз
Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Характеристики

Суич, тип Fixed Port
Общ брой портове 52
Основни портове, тип 48x 10/100/1000BASE-T Ports
Power Over Ethernet (PoE) Supports PoE Standards IEEE 802.3af, 802.3at, Up to 370W of Class 4 PoE Power
Uplink портове 4x 10GE SFP
Свободни (10GB) слотове -
Управление Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Stackable -
Fans Fixed fans
Захранване Fixed power supply, 100-127 VAC / 200-240 VAC
Routing Static (Layer 3): Static IP routing provides manually configured routes, Dual stack static IPv4 and IPv6 routing provides simple manually configured IPv4 and IPv6 routing, Dual IP stack maintains separate stacks for IPv4 and IPv6
Памет (Flash, RAM) 4 GB DDR3, 16 GB eMMC; Packet Buffer: 1 MB
Капацитет за маршрутизиране/превключване, Gbps 176 Gbps
Пропускателна способност, Mpps 98.6 Mpps
MAC адреси 8 192
VLAN (брой, стандарти) VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously
QoS Strict priority (SP) queuing, Traffic prioritization (IEEE 802.1p) for real-time classification, CoS sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
L2 мрежови стандарти RFC 1591 DNS (client), SSHv1/SSHv2 Secure Shell, IEEE 802.1D MAC Bridges, IEEE 802.1p Priority, IEEE 802.1Q VLANs, IEEE 802.1s Multiple Spanning Trees, IEEE 802.1w Rapid Reconfiguration of Spanning Tree, IEEE 802.3 Type 10BASE-T, IEEE 802.3ab
IPv6 functionality IPv6 host enables switches to be managed in an IPv6 network; Dual stack (IPv4 and IPv6) transitions from IPv4 to IPv6; MLD snooping forwards IPv6 multicast traffic to the appropriate interface; IPV6 static routing and etc.
Сигурност ACL, RADIUS, TACACS+, 802.1X, Web, and MAC authentications, CLI, GUI, or MIB through SSHv2, SSL, and/or SNMPv3, STP BPDU port protection, SSL and etc.
Размери (Ш, Д, В), mm 442 x 304.8 x 43.9 mm
Опция за монтаж Rackmount (1U)
Други 1x USB-C Console Port, 1x USB Type-A Host port
Гаранция 24 месеца

EAN: -
