P/N: IPC-B140H

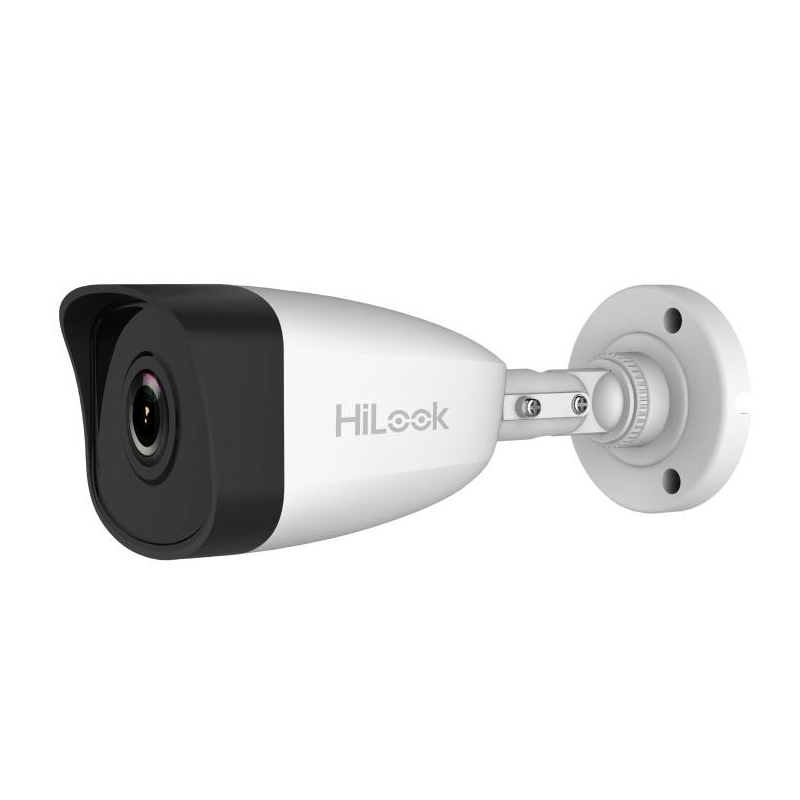

Camera, Hi-Look Fixed Bullet Network Camera 4MP, 2.8mm, IR up to 30m, H.265+, IP67, WDR, 3D DNR, 12Vdc/PoE 6.5 W

HikVision HiWatch Series >> Hi-Look Fixed Bullet Network Camera 4MP Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Type	IP
Sensor, type	CMOS
Оptical sensor size	1/3" progressive scan CMOS
Resolution, MP	4 MP
Focal length	2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
Minimum illumination, lx	Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
IR lighting	Up to 30 m
Мax resolution, pixels	2560 x 1440
Compression formats	Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
Transmission frames speed	Main Stream: 50 Hz:: 20 fps (2560 x 1440), 25 fps (1920 x 1080, 1280 x 720); 60 Hz: 20 fps (2560 x 1440), 30 fps (1920 x 1080, 1280 x 720); Sub-Stream 50 Hz: 25 fps (640 x 480, 640 x 360), 60 Hz: 30 fps (640 x 480, 640 x 360)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Network interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Wireless network	-
Power Over Ethernet (PoE)	PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Input/Output ports	-
Sound	-
Power supply	12 VDC ± 25%, 0.4 A, max. 5 W, O5.5 mm coaxial power plug
Card slot	-
Night surveillance	IR cut filter
Outdoor mounting	Front cover: metal, camera body: plastic, bracket: plastic
Waterproof	IP67
Vandal-Proof	-
Operating Temperature	-30 °C to 60 °C
Humidity range	Humidity 95% or less (non-condensing)
Security	Password protection, privacy mask, watermark, IP address filter
Dimensions (W, D, H), mm	181.6 x 71.4 x 66.7 mm
Additional functions	Anti-flicker, heartbeat, mirror; WDR, 3D DNR; Linkage: Upload to FTP, notify surveillance center, send email; Basic Event: Motion detection, video tampering alarm, exception
Warranty	36 months
