P/N: 90-MXBGW0-A0UAYZ

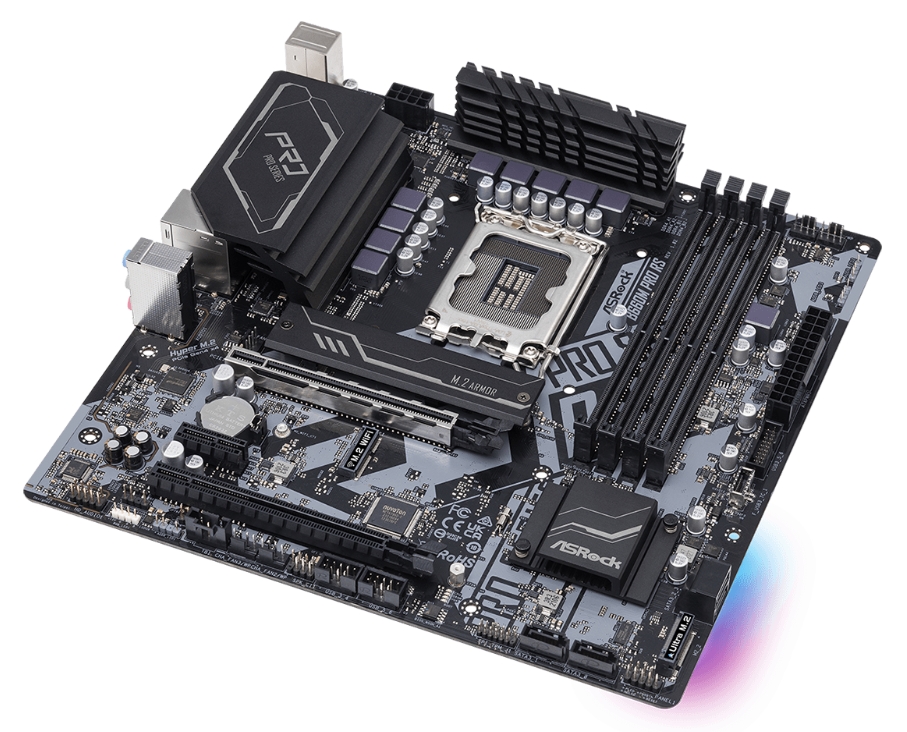

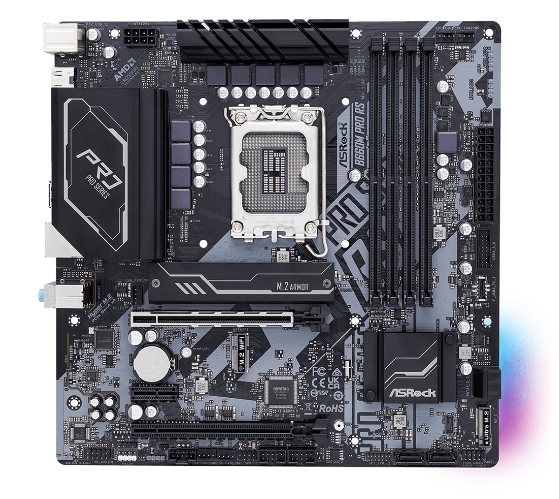

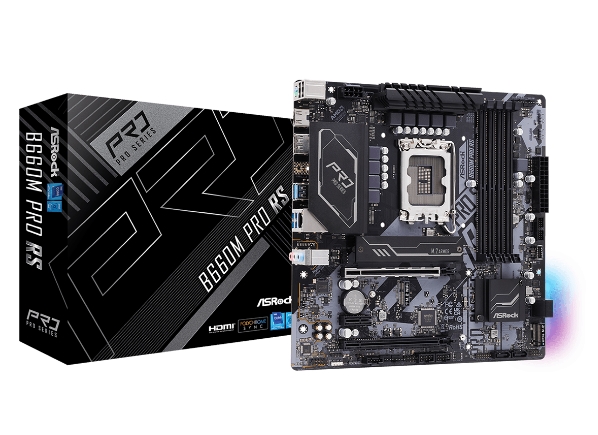

Motherboard, Asrock B660M Pro RS

ASROCK компоненти за компютри >> Asrock B660M Pro RS Recommended service
Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура





Characteristic

Series PRO
Processor Intel 1700
Chipset Intel B660
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Мemory DDR4
Number of slots 4 DIMM Slots; Max. capacity of system memory: 128GB; Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); Supports ECC UDIMM memory modules
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection; Nahimic Audio
Wireless network -
Connectors SPI TPM Header, Chassis Intrusion and Speaker Header; RGB LED Header, 3 x Addressable LED Headers; CPU Fan Connector (4-pin); CPU/Water Pump Fan Connector (4-pin); 3 x Chassis/Water Pump Fan Connectors (4-pin); 24 pin ATX Power Connector
Slots CPU: PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: PCIe 3.0 x16 Slot (PCIE3), supports x4 mode, PCIe 3.0 x1 Slot (PCIE2)
M.2 slot 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT); CPU: Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset: Ultra M.2 Socket (M2_2, Key M)

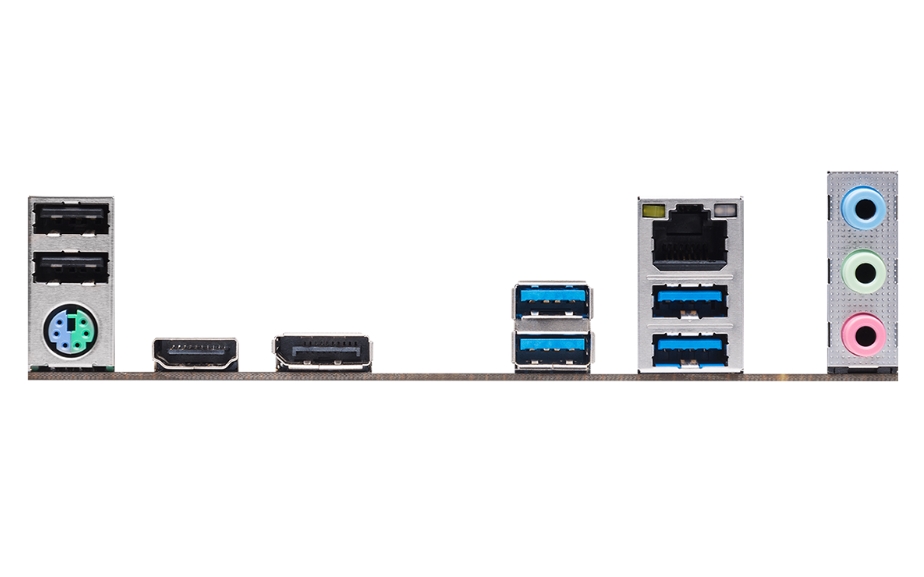

Interface 3 x Antenna Mounting Points; PS/2 Mouse/Keyboard Port; HDMI Port; DisplayPort 1.4; 4 x USB 3.2 Gen1 Ports; 2 x USB 2.0 Ports; RJ-45 LAN Port with LED; HD Audio Jacks: Line in / Front Speaker / Microphone
Software ASRock Motherboard Utility (A-Tuning); ASRock Polychrome SYNC; ASRock XFast LAN
Operating system Microsoft Windows 10 64-bit/ 11 64-bit
Form factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Special features ASRock Super Alloy; ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology; ASRock Full Spike Protection (for all USB, Audio, LAN Ports); ASRock Live Update & APP Shop
Warranty 36 months

EAN: 4710483936524
