P/N: C9300L-24P-4G-E

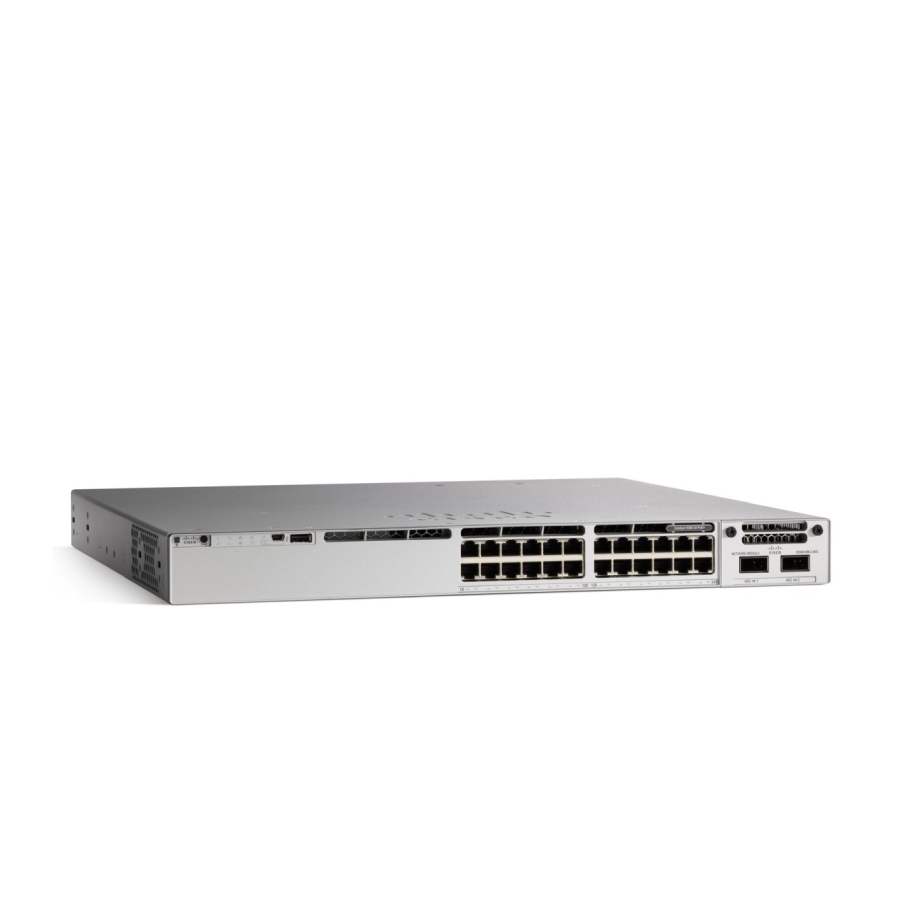

Комутатор, Cisco Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials

Задължителен е минимум 3-годишен лиценз DNA Essentials!

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9300 24-port 1G copper Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x10/100/1000Base-T
Power Over Ethernet (PoE)	24 PoE+; Available PoE power: 505W
Uplink портове	4x10/100/1000Base-T
Свободни (10GB) слотове	No
Управление	SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable	Stacking support: StackWise-320; 320 Gbps; Optional Stacking hardware: C9300L-STACK-KIT; Number of members: 8; Supported stack members: Other C9300L SKUs with same license level
Fans	three field-replaceable fans and support (N+1) redundancy
Захранване	Dual redundant power supplies, Default primary AC power supply: PWR-C1-715WAC-P
Routing	Layer 3 Advanced
Памет (Flash, RAM)	Flash memory: 16 GB; 8 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps	56 Gbps; Switching capacity with stacking: 376 Gbps
Пропускателна способност, Mpps	41.66 Mpps; Forwarding rate with stacking: 279.76 Mpps
MAC адреси	32000 MAC address
VLAN (брой, стандарти)	VLAN IDs: 4094; IEEE 802.1Q VLAN
QoS	Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x
L3 мрежови стандарти	IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
IPv6 functionality	IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting
Сигурност	Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Размери (Ш, Д, В), mm	44.5 x 44.9 x 4.4
Опция за монтаж	Rackmount
Други	Задължителен е минимум 3-годишен лиценз DNA Essentials.
Гаранция	99 месеца
