P/N: DGS-1520-52

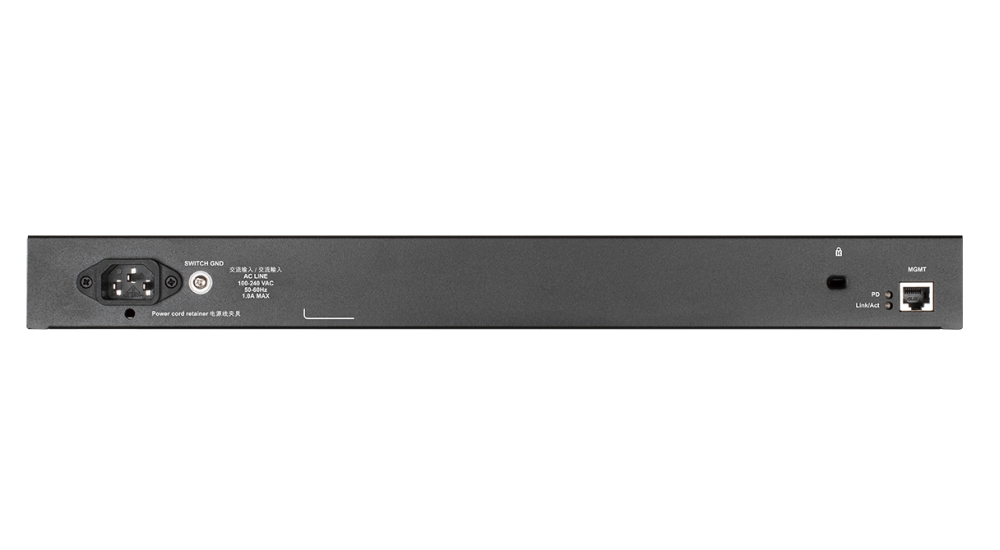

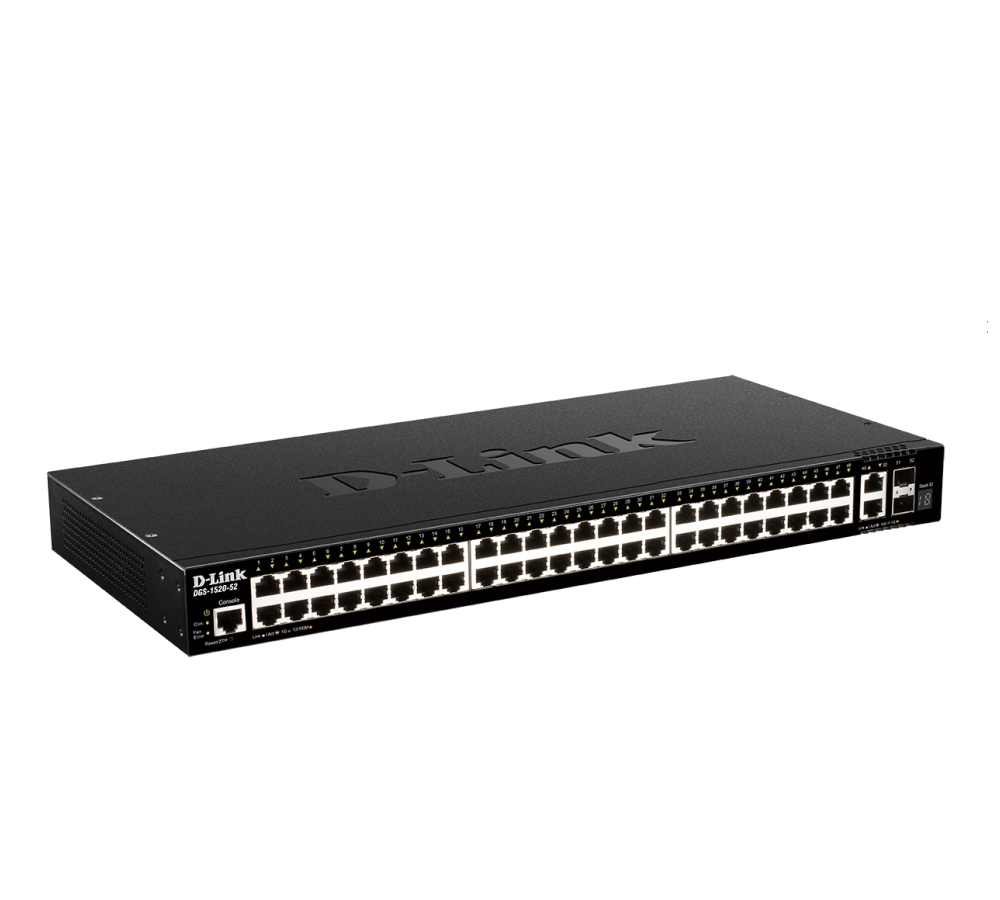

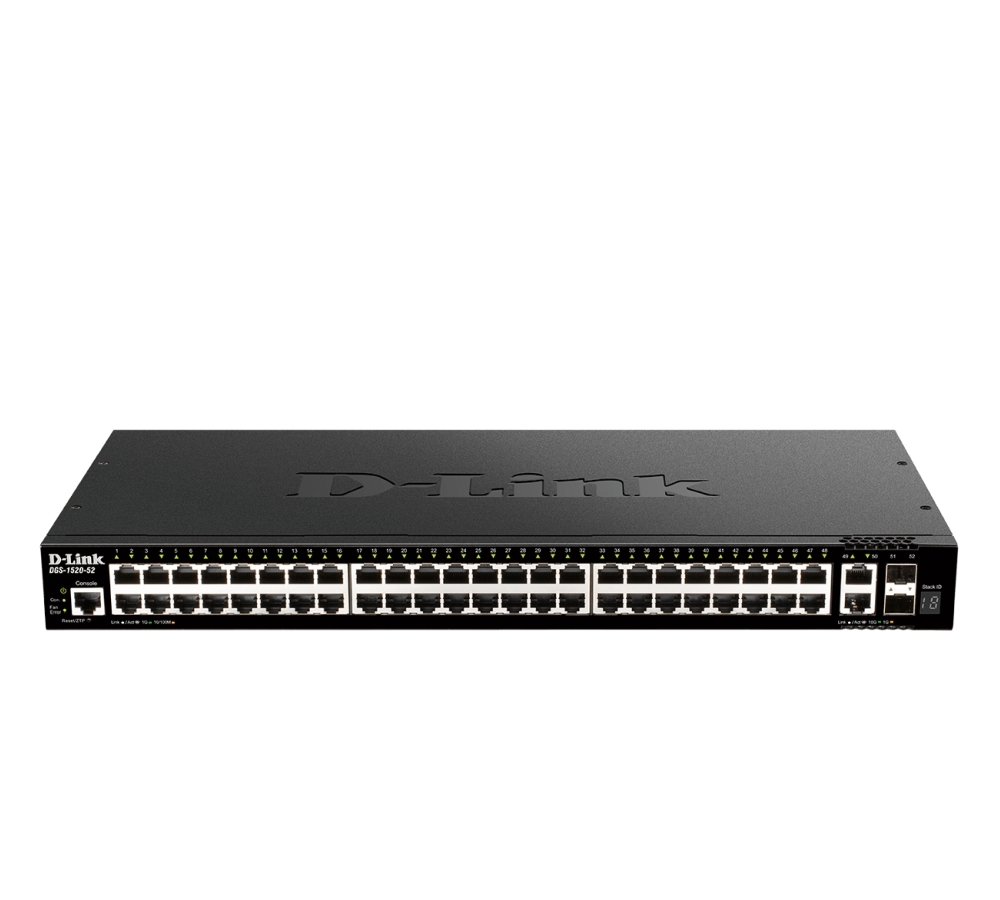

Комутатор, D-Link 48 ports GE + 2 10GE ports + 2 SFP+ Smart Managed Switch

D-LINK мрежови продукти >> D-Link 48 ports GE + 2 10GE ports + 2 SFP+ Smart Managed Switch Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	52
Основни портове, тип	48x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink портове	2x10GE SFP, 2x10GBase-T
Свободни (10GB) слотове	No
Управление	Web-based GUI, Command Line Interface (CLI), Telnet Server/Client for IPv4/IPv6, TFTP Client for IPv4/IPv6, DNS Client for IPv4/IPv6, SNMP, sFlow, RMON v1/v2, DHCP, D-Link Discover Protocol (DDP), NTPv3/v4
Stackable	Physical stacking: 10GBase-T and SFP+, Up to 8 units per stack, Up to 80 Gbps stacking bandwidth, Ring/chain topology support; Virtual stacking: D-Link Single IP Management (SIM), Up to 32 units per virtual stack
Fans	yes
Захранване	100 - 240 VAC; Max. Power Consumption: 51.2 W, Optional Redundant Power Supply: DPS-520
Routing	Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps	176 Gbps
Пропускателна способност, Mpps	130.95 Mbps
MAC адреси	Up to 16384 entries per device
VLAN (брой, стандарти)	VLAN Group (Max. 4K VLAN groups, Max. 1~4094 VIDs); GVRP - Max. 4K dynamic VLAN groups; Double VLAN (Q-in-Q); Selective Q-in-Q; 802.1Q; Auto Surveillance/Port-based/Voice/MAC-based/Multicast/Subnet-based/Asymmetric/Private VLAN; 802.1v Protocol-based VLAN
QoS	802.1p; 8 queues per port; Queue Handling; Congestion Control; Policy Map; CoS based on: Switch port, Inner/Outer VID, Inner/Outer 802.1p Priority, MAC address, Ether type, IP address, DSCP, ToS/IP preference, Protocol type, TCP/UDP port;Bandwidth Control
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1X, IEEE 802.1AX
L3 мрежови стандарти	Static Route, RIPv1/v2/ng, OSPF: OSPF v2/v3, OSPF passive interface, Stub/NSSA area, Supports Equal-Cost Multi-Path Route (ECMP), Text/MD5 authentication
IPv6 functionality	IPv4/IPv6 access; Telnet Server/Client; TFTP/DNS Client; Secure FTP Server/Client; Ping/ Traceroute; IPv6 Snooping; IPv6 Route Advertisement (RA) Guard; IPv6 ND Inspection; IPv6 Traffic Class; IPv6 Flow Label
Сигурност	Port Security (Supports up to 64 MAC addresses per port), Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP Source Guard, DHCP/IPv6 Snooping, DAI, ARP Spoofing Prevention, SSL, SSH, BPDU Attack Protection
Размери (Ш, Д, В), mm	441 x 207.4 x 44 mm
Опция за монтаж	Rackmount
Гаранция	99 месеца
