P/N: IE-2000U-8TC-G

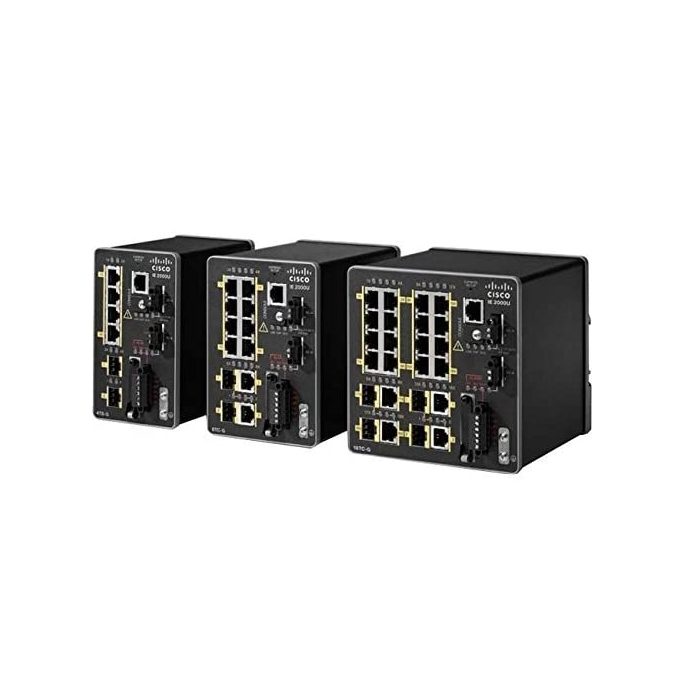

Commutator/ Switch, Cisco IE2000U with 8FE Copper ports and 2GE combo ports (Lan Base License)

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco IE2000U with 8FE Copper ports and 2GE combo ports (Lan Base License) Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed port
Total number of ports	10
Мain ports, type	8x FE copper ports (RJ-45 connectors)
Power Over Ethernet (PoE)	-
Uplink ports	2x GE Combo ports (SFP or RJ45)
Open (10GB) slots	-
Management	SNMP v2 and 3, IGMP multicast groups: 1000, SDM, CFM
Stackable	-
Fans	Convection cooled
Power supply	Redundant DC input voltage with operating range: 12-48 VDC Nominal, 9.6-60 VDC Maximum; Maximum DC input current: 0.5A at 48 VDC, 1A at 24 VDC; Power Consumption:ls: 9.5-15 W
Routing	-
Memory (Flash, RAM)	Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 1 GB removable SD flash memory card (CG swap drive) – (128MB space available)
Routing/Switching capacity, Gbps	Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Throughput, Mpps	Max. 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC addresses	Unicast MAC addresses: 8000
VLAN (number, standards)	Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN, Protected port/private VLAN
QoS	Advanced QoS capabilities to support mission-critical substation applications such as SCADA and IEC 61850 Generic Object Oriented Substation Events (GOOSE) messaging
Security	802.1x, Dynamic ARP Inspection, DHCP Snooping, ACL, Port security, UNI/ENI, Spanning Tree Protocol security, Storm control, Secure connectivity: SSH/SSL/SCP, RADIUS/TACACS+, SNMPv3 crypto, OBFL
Network standarts	IEEE: 802.1s, 802.1w, 802.1x, 802.3ad, 802.3ah, 802.1ag, 802.3x full duplex, 802.1D Spanning Tree Protocol, 802.1p CoS, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEC-62439-3 PRP, IPv6: MLD Snooping v1/2, SNMP v1, 2, and 3
Industrial environmental compliance and certifications	IEC-61850-3, IEEE 1613, IEEE 1588
Operating Temperature	-40C to +75C
Dimensions (W, D, H), mm	80 x 115 x 130 mm
Мounting option	DIN rail
Other	Lan Base License, Parallel Redundancy Protocol (PRP)
Warranty	60 months
