P/N: DGS-1250-52XMP

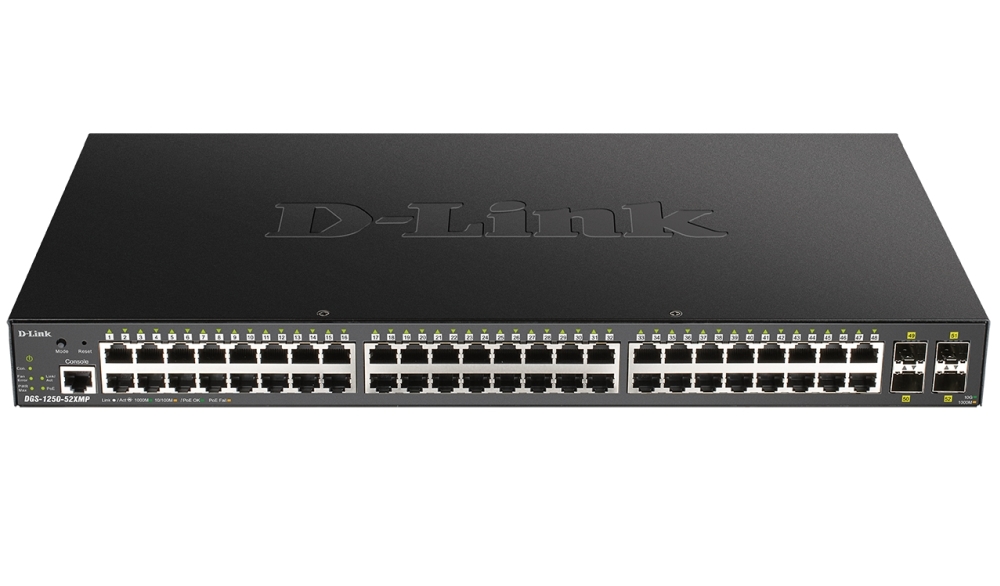

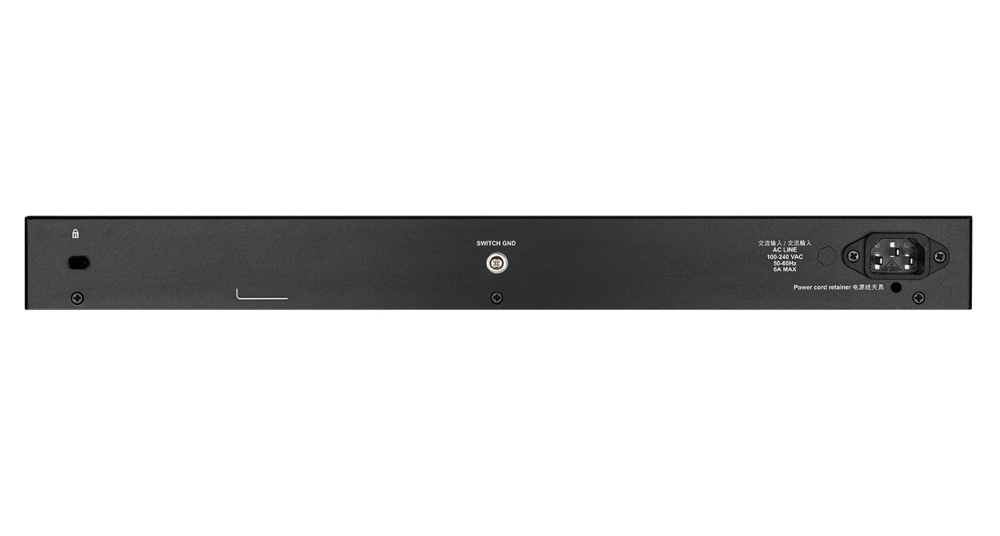

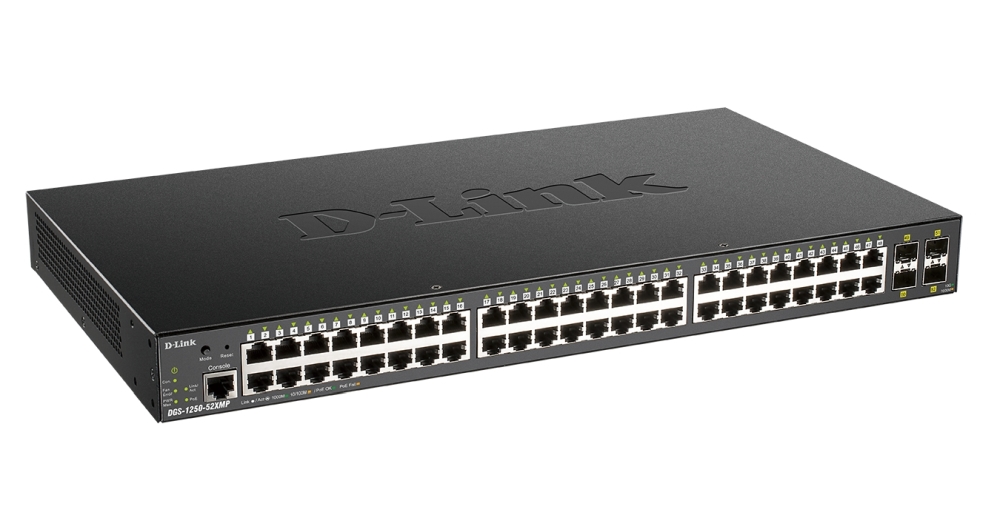

Commutator/ Switch, D-Link 48-port Gigabit Smart Managed Switch with 4x 10G SFP+ ports, 370Watts

D-LINK мрежови продукти >> D-Link 48-port Gigabit Smart Managed Switch with 4x 10G SFP+ ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	52
Мain ports, type	48x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3af/at PoE Standard; 48 PoE Capable Ports; PoE Power Budget: 370 W
Uplink ports	4x10GE SFP
Open (10GB) slots	No
Management	Web-based GUI, D-Link Network Assistant, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP (Supports v1/v2c/v3), SNMP Trap, BootP/DHCP Client, System Log, ICMP v6, IPv4/v6 Dual Stack, DHCP Auto Configuration, RMONv1
Stackable	No
Fans	Fanless
Power supply	Internal universal power supply: 100 to 240 V AC 50/60 Hz, Maximum Power Consumption: 443.6 W (PoE On), 57.2 W (PoE Off)
Routing	Layer 3 Lite
Memory (Flash, RAM)	Flash Memory: 64 MB, CPU memory: 2G DDR3
Routing/Switching capacity, Gbps	176 Gbps
Throughput, Mpps	130.95 Mpps
MAC addresses	32000 MAC address table size
VLAN (number, standards)	802.1Q; VLAN Group - Max. 4094 static VLAN groups; Configurable VID from 1 - 4094; Asymmetric VLAN; Auto Voice VLAN: Max. 10 user-defined OUI, Max. 8 default OUI; Auto Surveillance VLAN
QoS	802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR); Bandwidth Control - Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at
L3 network standards	Static routing: 124 IPv4 static route entries, 50 IPv6 static route entries
IPv6 functionality	IPv6 Neighbor Discovery (ND); IPv6 address: Source/destination IP address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask, IPv6 traffic class mask; IPv6 Inspection (Max. 63 entries); IPv6 RADIUS server
Security	Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, Traffic segmentation, SSH v2, TLS v.1.2, DoS attack prevention, 802.1X, Port Security - Supports up to 64 MAC addresses per port, ARP Spoofing Prevention, DHCP, IP-MAC-Port Binding
Dimensions (W, D, H), mm	440 x 430 x 44
Мounting option	Rackmount
Other	RJ-45 console Port for CLI management
Warranty	99 months
