P/N: 9H.JE277.1HE

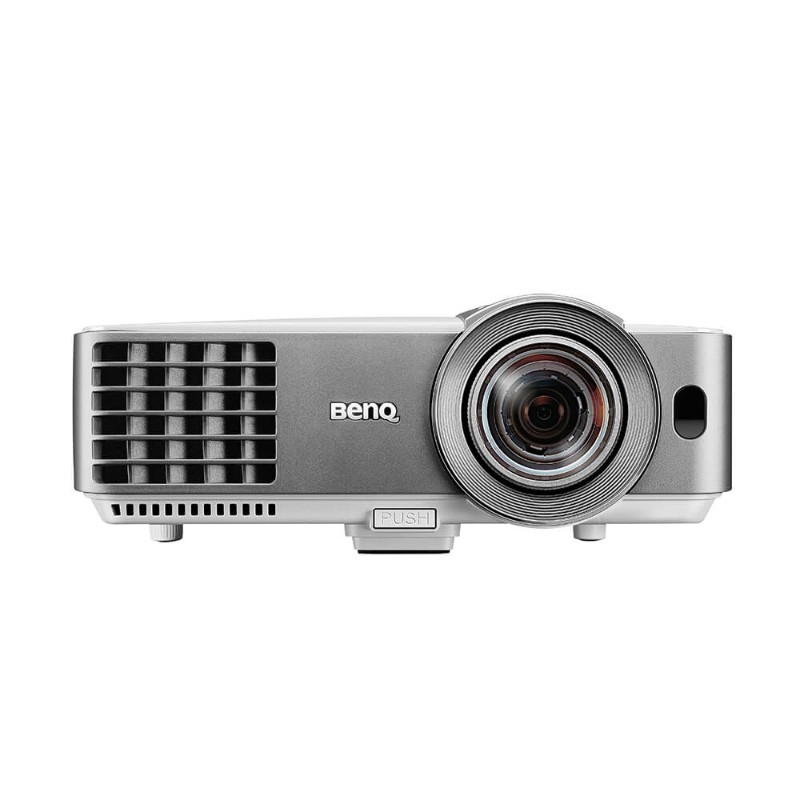

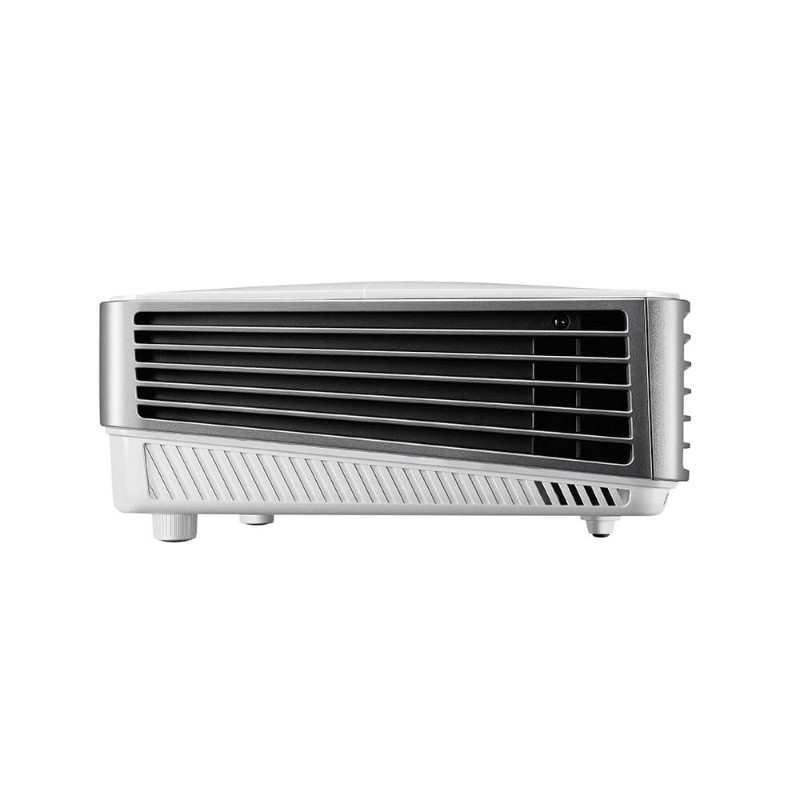

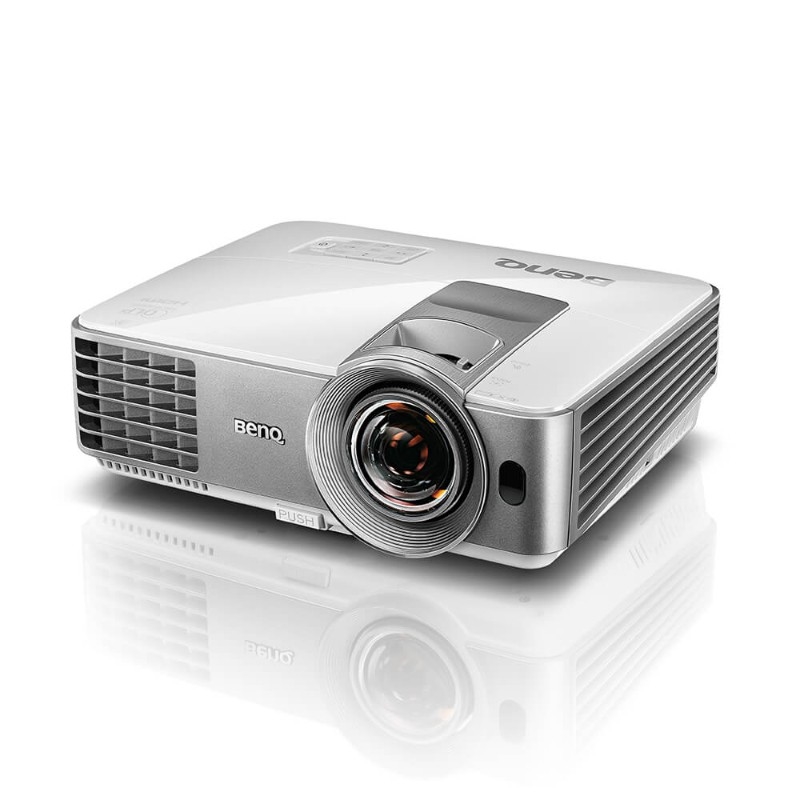

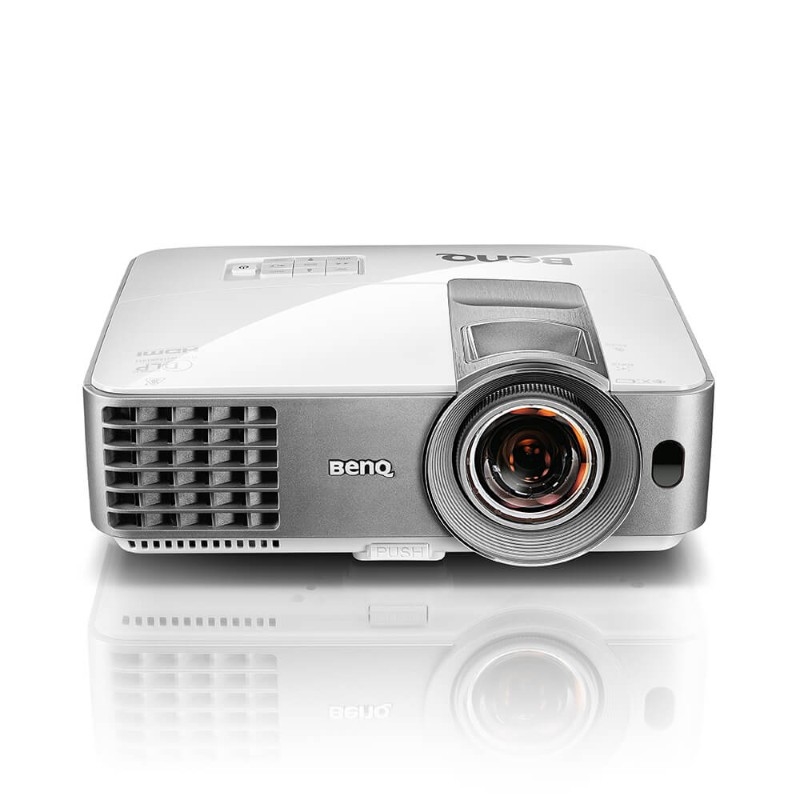

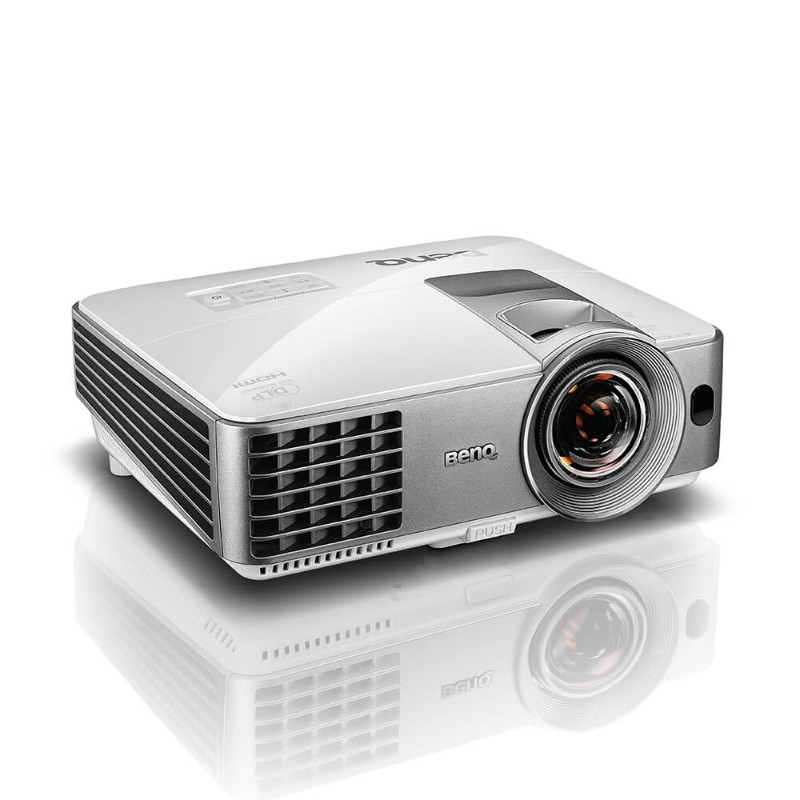

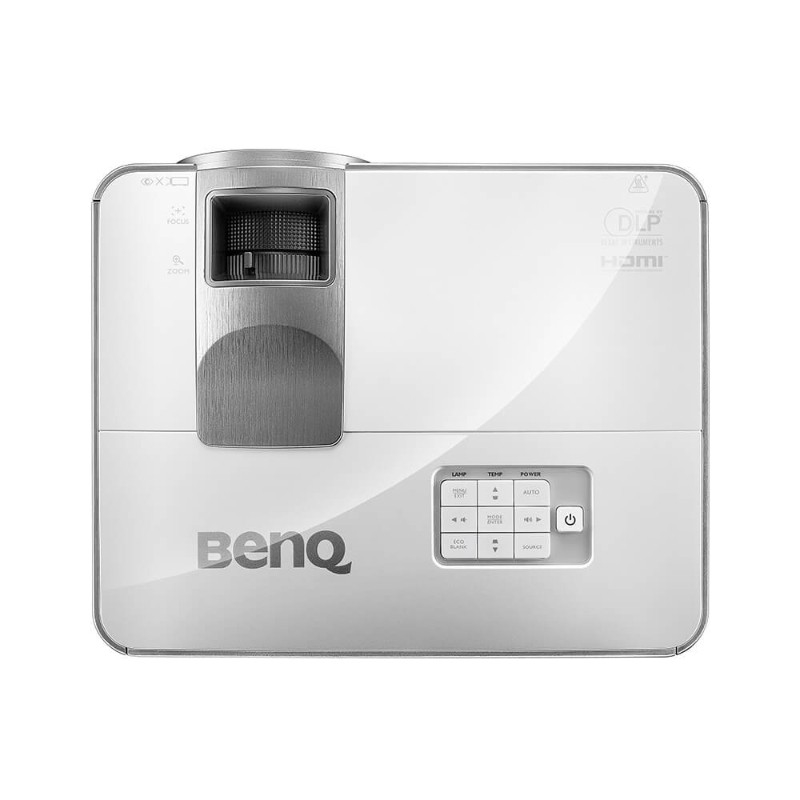

Multimedia projector, BenQ MW632ST, Short Throw, DLP, WXGA (1280x800), 13000:1, 3200 ANSI lumens, Zoom 1.2x, 65"@1m, Auto Vertical Keystone, VGA, 2xHDMI, S-Video, RCA, USB Type A 1.5A, Audio in/out, Audio L/R in RCA, RS232, Speaker 10W, Up To 10000 hr., IEC62368

Recommended service
BenQ Service Department

Characteristic

Technology	DLP WXGA
Brightness, lumens	3 200 ANSI Lumens
Contrast	13 000:1
Resolution	1280x800
Screen size, inch	60" ~ 120" (152.4 ~ 304.8 cm)
Supported formats	Native 16:10 (5 aspect ratio selectable)
Sound	10W
Noise, dB	33/28 dBA (w/o filter)
Magnification ratio	1.2x
Short-Throw	yes, Throw Ratio 0.72~0.87(87"±3% @ 1.36m)
Option for wireless projection	-

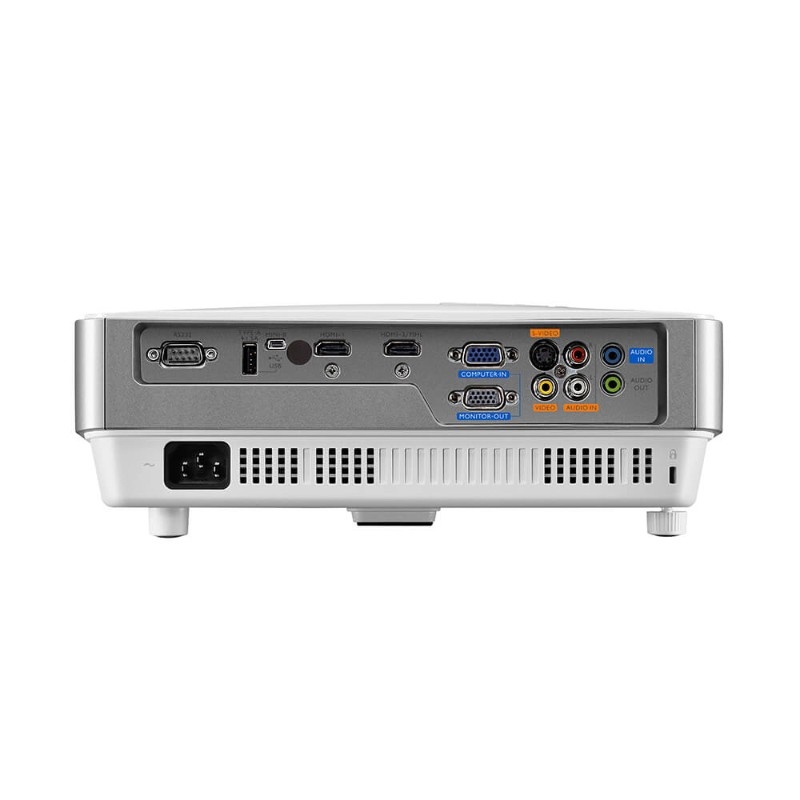

Inputs	PC (D-sub), S-Video in (Mini DIN 4pin), Composite Video in (RCA), USB Type A (power supply, 5V, 1.5A), USB Type Mini B (Download & Page up/down), Audio in (3.5mm Mini Jack), Audio L/R in (RCA), RS232 (DB-9pin), IR Receiver x2 (Front/Top)
Outputs	Monitor out (D-sub 15pin), Audio out (3.5mm Mini Jack)
HDMI	HDMI x2 (one shared w/ MHL)
Lamp, W	196W
Lamp life, h	4500/6000/6500/10000 Hours
Dimensions (W, D, H), cm	28.7 x 23.3 x 11.4
Weight, kg	2.60 kg
Color	White-Grey
Other	Security Bar, Keystone Adjustment: 1D, Auto Vertical +/- 30 degrees
Warranty	36 months
