P/N: N9K-C9348GC-FXP

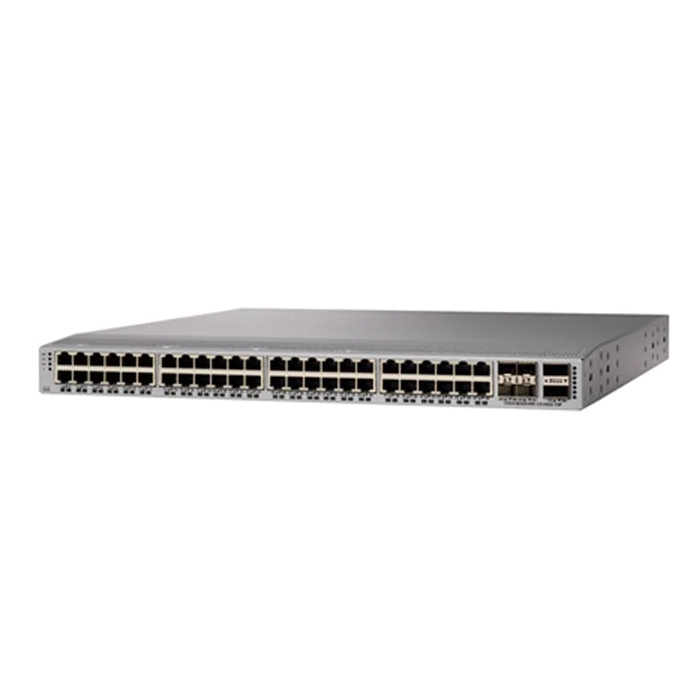

Комутатор, Cisco Nexus 9300 with 48p 100M/1G BASE-T, 4p 1/10/25G SFP28 and 2p 40G/100G QSFP28

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	54
Основни портове, тип	48x10/100/1000Base-T + 4x1/10/25G SFP28
Power Over Ethernet (PoE)	-
Uplink портове	2x 40G/100G QSFP28
Свободни (10GB) слотове	No
Управление	Intelligent Buffer Management; Management ports: 1 RJ-45 and 1 SFP+
Stackable	-
Fans	Optional fan module with fan slots (up to 3)
Захранване	Hot-swappable PSU (up to 2); 350W AC, 440W DC
Routing	Layer 3 RIP (RIPv2, EIGRP, IPv4/IPv6 routing, PIM-SM, SSM, MSDP)
Памет (Flash, RAM)	System memory: 24 GB; SSD drive: 128 GB; System buffer: 40 MB
Капацитет за маршрутизиране/превключване, Gbps	696 Gbps
Пропускателна способност, Mpps	517 Mpps
MAC адреси	512 000 MAC address (127 VLANs out of 4096 are reserved)
VLAN (брой, стандарти)	4096 (127 VLANs out of 4096 are reserved); Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances: 3 967
Сигурност	IEEE 802.1ae MAC Security (MACsec) support on all ports; Flexible forwarding tables support up to 2 million shared entries on FX models. Flexible use of TCAM space allows for custom definition of Access Control List (ACL) templates.
Размери (Ш, Д, В), mm	439 x 499 x 44
Опция за монтаж	Rackmount, 1 RU
Други	1x USB port; 1x RS-232 serial port
Гаранция	99 месеца
