P/N: JL264A

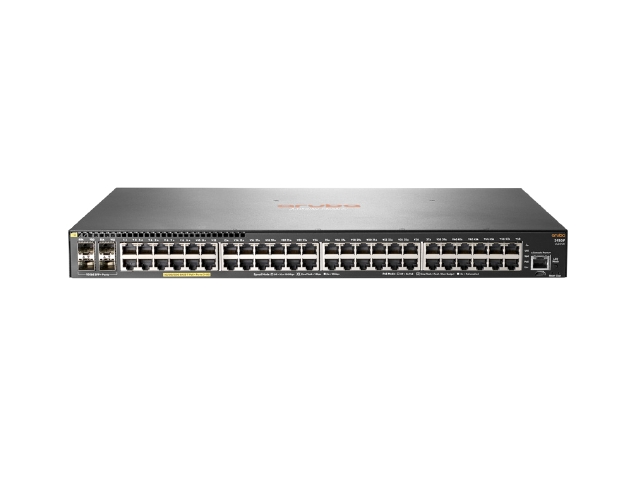

Комутатор, Aruba 2930F 48G PoE+ 4SFP+ T Swch

99
Aruba 2930F 48G PoE+ 4SFP+ T Swch
HP мрежови продукти >> Aruba 2930F 48G PoE+ 4SFP+ T Swch Препоръчителен сервиз
Препоръчителен сервиз
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Характеристики

Суич, тип Fixed Port
Общ брой портове 52
Основни портове, тип 48x10/100/1000Base-T
Power Over Ethernet (PoE) IEEE 802.3af and IEEE 802.3at; Pre-standard PoE support; PoE power: 370 W PoE+
Uplink портове 4x10GE SFP
Свободни (10GB) слотове No
Управление Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Stackable No
Fans yes
Захранване Internal
Routing Layer 3 Advansed
Памет (Flash, RAM) Flash Memory: 4 GB eMMC; RAM: 1 GB DDR3 SDRAM
Капацитет за маршрутизиране/превключване, Gbps 176 Gbps
Пропускателна способност, Mpps 112 Mpps
MAC адреси 32768 MAC addres table size
VLAN (брой, стандарти) Supports IEEE 802.1Q (4,094 VLAN IDs) and 2K VLANs simultaneously, IEEE 802.1v protocol VLANs, Rapid Per-VLAN Spanning Tree (RPVST+), GVRP and MVRP, VxLAN, Jumbo packet support
QoS Traffic prioritization (IEEE 802.1p) - Allows real-time traffic classification into eight priority levels mapped to eight queues; Layer 4 prioritization - Enables prioritization based on TCP/UDP port numbers; Class of Service (CoS); Rate limiting
L2 мрежови стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1AB, IEEE 802.1AX-2008, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1v, IEEE 802.1X, IEEE 802.1ap
L3 мрежови стандарти Static IP routing; 256 static and 10000 RIP routes; Routing Information Protocol (RIP) Provides RIPv1, RIPv2, and RIPng routing; Access OSPF - Provide OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN.
IPv6 functionality IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS, Dual stack (IPv4 and IPv6)
Сигурност IEEE 802.1X, Web/MAC-based authentication, ACLs, Source-port filtering, RADIUS/TACACS+, Secure shell, SSL, Port security, MAC address lockout, Secure FTP, STP BPDU port protection, DHCP protection, Dynamic ARP protection, STP root guard, Private VLAN
Размери (Ш, Д, В), mm 443 x 304 x 44
Опция за монтаж Rackmount
Други 1 dual-personality (RJ-45 or USB micro-B) serial console port
Гаранция 99 месеца

EAN: -
