P/N: C1000-24FP-4X-L

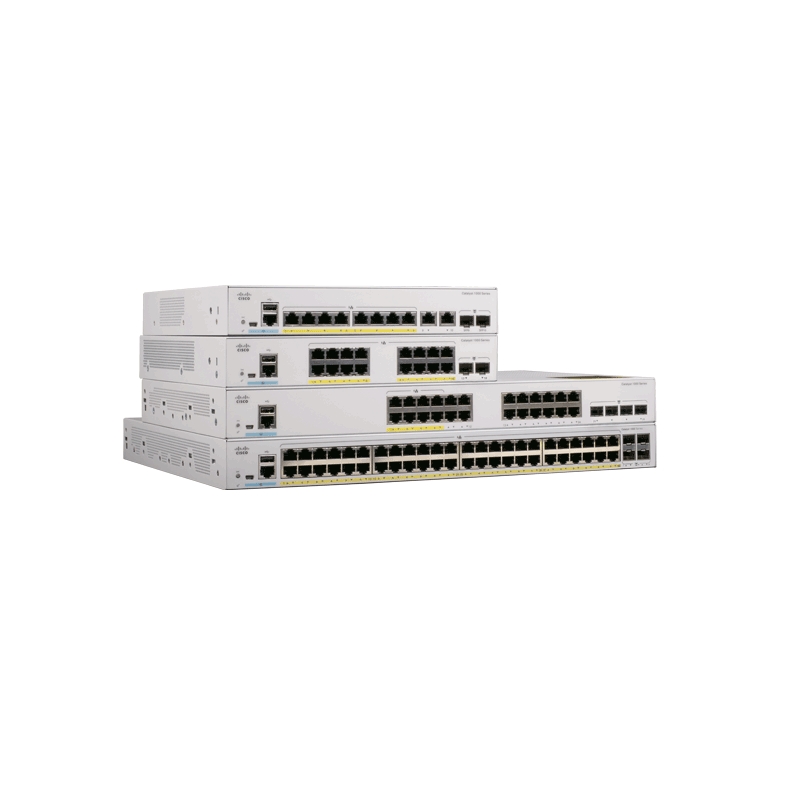

Commutator/ Switch, Cisco Catalyst 1000 24port GE, Full POE, 4x10G SFP

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 1000 24port GE Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	24
Мain ports, type	10/100/1000Base-T
Power Over Ethernet (PoE)	Support both IEEE 802.3af PoE and IEEE 802.3at PoE+; 30W for any 8 ports or 15W for 24 ports; PoE power budget: 370W
Uplink ports	4x 10G SFP+
Open (10GB) slots	-
Management	Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
Stackable	-
Fans	yes
Power supply	Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Routing	Static
Memory (Flash, RAM)	512MB DRAM, 256 MB Flash memory
Routing/Switching capacity, Gbps	10/20 Gbps (Forwarding/Switching)
Throughput, Mpps	14.88 Mpps
MAC addresses	15 360
VLAN (number, standards)	Maximum active: 256; IDs available: 4094
QoS	Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
L2 network standards	802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
L3 network standards	-
IPv6 functionality	IPv6 routing, Access Control Lists (ACLS)
Security	802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
Dimensions (W, D, H), mm	444.5 x 345.2 x 43.9
Мounting option	Rackmount
Other	USB mini-B port, USB-A port for storage and Bluetooth console
Warranty	60 months
