P/N: PDUMH20HVATNET

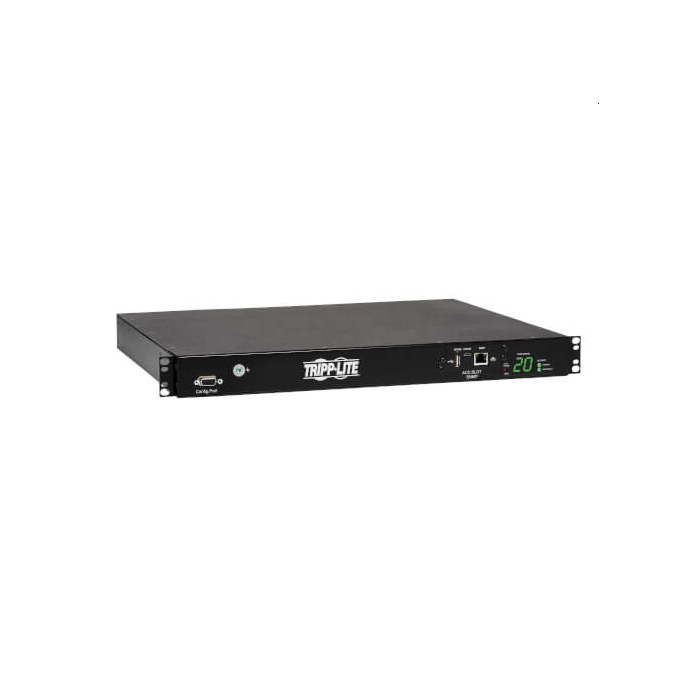

Filter, Tripp Lite by Eaton 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA

Recommended service
Мундус Сървисиз АД, тел. 0883 888 333, адрес: гр. София, бул. Искърско шосе 7, Търговски Център „Европа“, сграда 9, етаж -1, e-mail: ups_service@mundus.bg

Characteristic

Input voltage, V	200; 208; 220; 230; 240V
Input frequency, Hz	50/60 Hz
Input current, A	16/20A
Max. power, kW	3.8
Number of phases	1
Input connection	2x IEC-320 C20
Number of outputs	10
Inference type	8x IEC C13, 2x IEC C19; RJ45 Network port, Micro-USB Configuration port, USB A port
Cable length, m	3.66m
Security	Automatic Transfer Switch (ATS) / Switched PDU - As primary input power fails, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
Form factor	1U rackmount
Standards	CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1; RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Dimensions (W, D, H), mm	528.3 x 594.4 x 137.2 mm
Weight, g	4670 g
Color	Black
Other	Metal
Warranty	24 months
