P/N: C1200-24T-4X

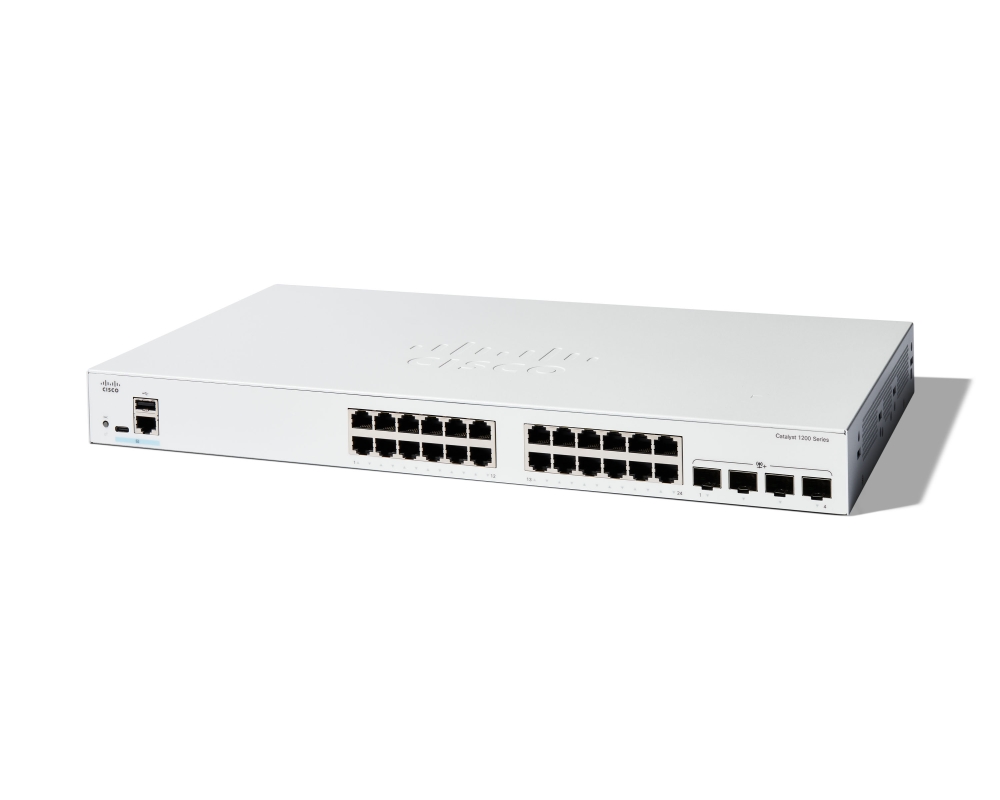

Commutator/ Switch, Cisco Catalyst 1200 24-port GE, 4x10G SFP+

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 1200 24-port GE Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24x 10/100/1000Base-T
Power Over Ethernet (PoE)	-
Uplink ports	4xSFP+
Open (10GB) slots	-
Management	Network PnP, Web user interface, Cisco Business mobile app, Cisco Business Dashboard, SNMP, MIBs, RMON, DHCP, CLI and etc.
Stackable	-
Fans	Fanless
Power supply	100 to 240V 50 to 60 Hz, internal, universal
Routing	Layer 3 static routing
Memory (Flash, RAM)	512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
Routing/Switching capacity, Gbps	128 Gbps
Throughput, Mpps	95.23 Mpps
MAC addresses	8000 addresses
VLAN (number, standards)	Support for up to 255 active VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, Management VLAN, Guest VLAN, Auto Surveillance VLAN (ASV), Voice VLAN
QoS	8 hardware queues; Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
L2 network standards	IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
IPv6 functionality	IPv6 host mode, IPv6 over Ethernet, Dual IPv6/IPv4 stack, IPv6 Neighbor Discovery (ND), IPv6 stateless address auto-configuration, Path MTU discovery, DAD, ICMP v6, IPv6 over IPv4 network with ISATAP
Security	SSL, SSH, IEEE 802.1X (authenticator role): RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions; STP; SCT; SSD, Trustworthy systems, Port security, Storm control, DoS prevention, ACLs
Dimensions (W, D, H), mm	445 x 240 x 44 mm
Мounting option	Rackmount
Warranty	60 months
