P/N: C1200-16P-2G

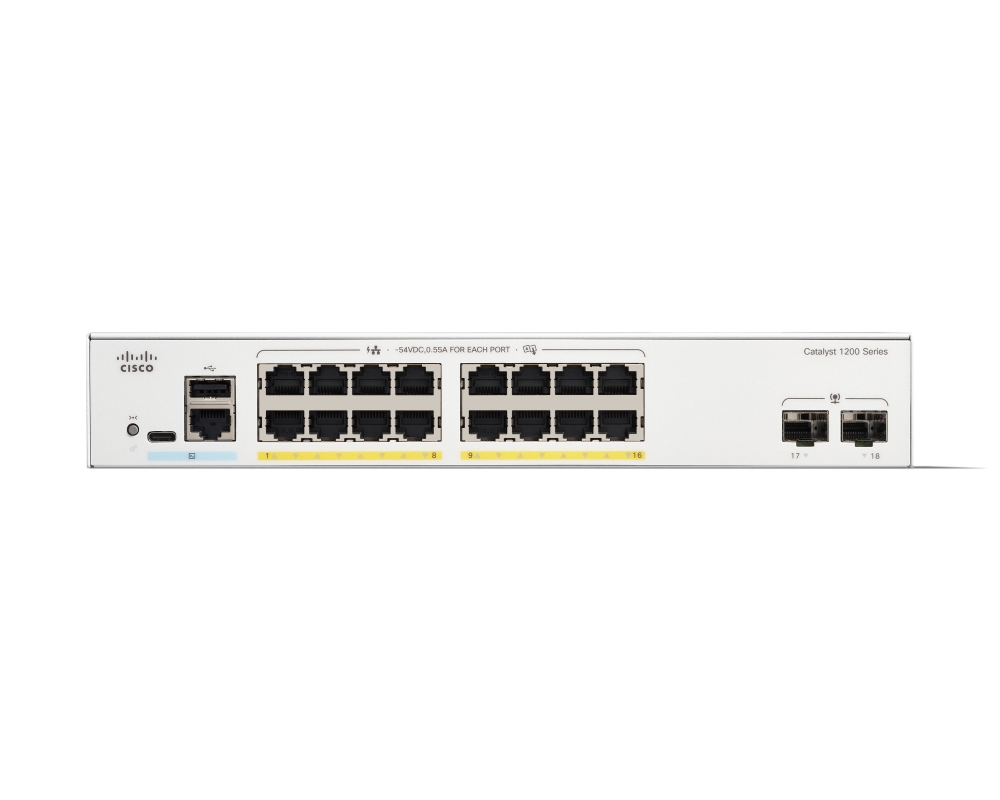

Commutator/ Switch, Cisco Catalyst 1200 16-port GE, PoE, 2x1G SFP

60

Characteristic

Switch, type Fixed Port
Total number of ports 18
Мain ports, type 16x 10/100/1000Base-T PoE+ ports with 120W power budget
Power Over Ethernet (PoE) PoE+ (120W); 16 ports
Uplink ports 2xSFP
Open (10GB) slots -
Management Network PnP, Web user interface, Cisco Business mobile app, Cisco Business Dashboard, SNMP, MIBs, RMON, DHCP, CLI and etc.
Stackable -
Fans Fanless
Power supply 100 to 240V 50 to 60 Hz, internal, universal
Routing Layer 3 static routing
Memory (Flash, RAM) 512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
Routing/Switching capacity, Gbps 36 Gbps
Throughput, Mpps 26.78 Mpps
MAC addresses 8000 addresses
VLAN (number, standards) Support for up to 255 active VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, Management VLAN, Guest VLAN, Auto Surveillance VLAN (ASV), Voice VLAN
QoS 8 hardware queues; Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
L2 network standards IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
IPv6 functionality IPv6 host mode, IPv6 over Ethernet, Dual IPv6/IPv4 stack, IPv6 Neighbor Discovery (ND), IPv6 stateless address auto-configuration, Path MTU discovery, DAD, ICMP v6, IPv6 over IPv4 network with ISATAP
Security SSL, SSH, IEEE 802.1X (authenticator role): RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions; STP; SCT; SSD, Trustworthy systems, Port security, Storm control, DoS prevention, ACLs
Dimensions (W, D, H), mm 268 x 297 x 44 mm
Мounting option Rackmount
Warranty 60 months

EAN: -
