P/N: MIN_3600_TL-XH

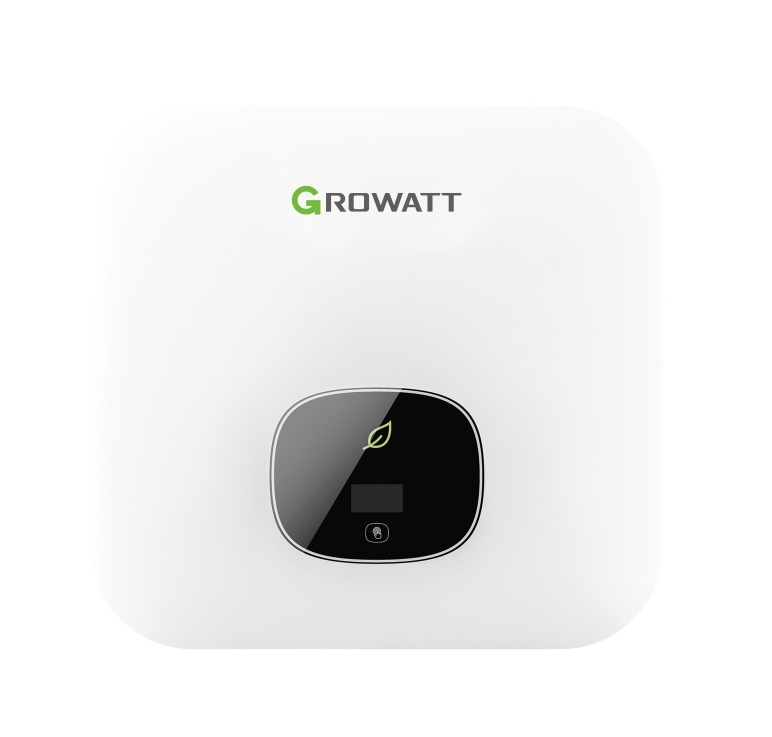

Inverter for photovoltaic panel, Growatt MIN 3600 TL-XH Single Phase On Grid Inverter (Support Work with Battery)

120

Characteristic

Connection, type Single phase
Efficiency 98.2% max. efficiency, 97.2% European efficiency
Power, W 7200 W
Input voltage, V 550 V
Battery ARK XH Battery System (5.12kWh~17.9kWh)
Output power, W 3600 W
Output power, VA 3600 VA
Output Voltage, V 230V (180-280V)
Frequency, Hz 50/60 Hz (45-55Hz/55-65 Hz)
Output current, A 16 A
Protections DC reverse polarity protection, DC switch, DC/AC surge protection (Type II/Type III), Insulation resistance monitoring, AC short-circuit protection, Ground fault monitoring, Grid monitoring, Anti-islanding protection, Residual-current monitoring unit
Indicators OLED+LED
Cooling type Natural convection
Operating Temperature –25°C - +60°C
Humidity range 0 - 100%
Interface RS485, USB, Optional: Wi-Fi, GPRS, RF, LAN
Standards CE, IEC62109, AS/NZS 4777.2, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN 50549, IEC 62116, IEC 61727, G98/G99
Color White
Dimensions (W, D, H), mm 375 x 350 x 160 mm
Weight, kg 10.8 kg
Other IP65
Warranty 120 months

EAN: -
