P/N: XGS4600-32-ZZ0102F

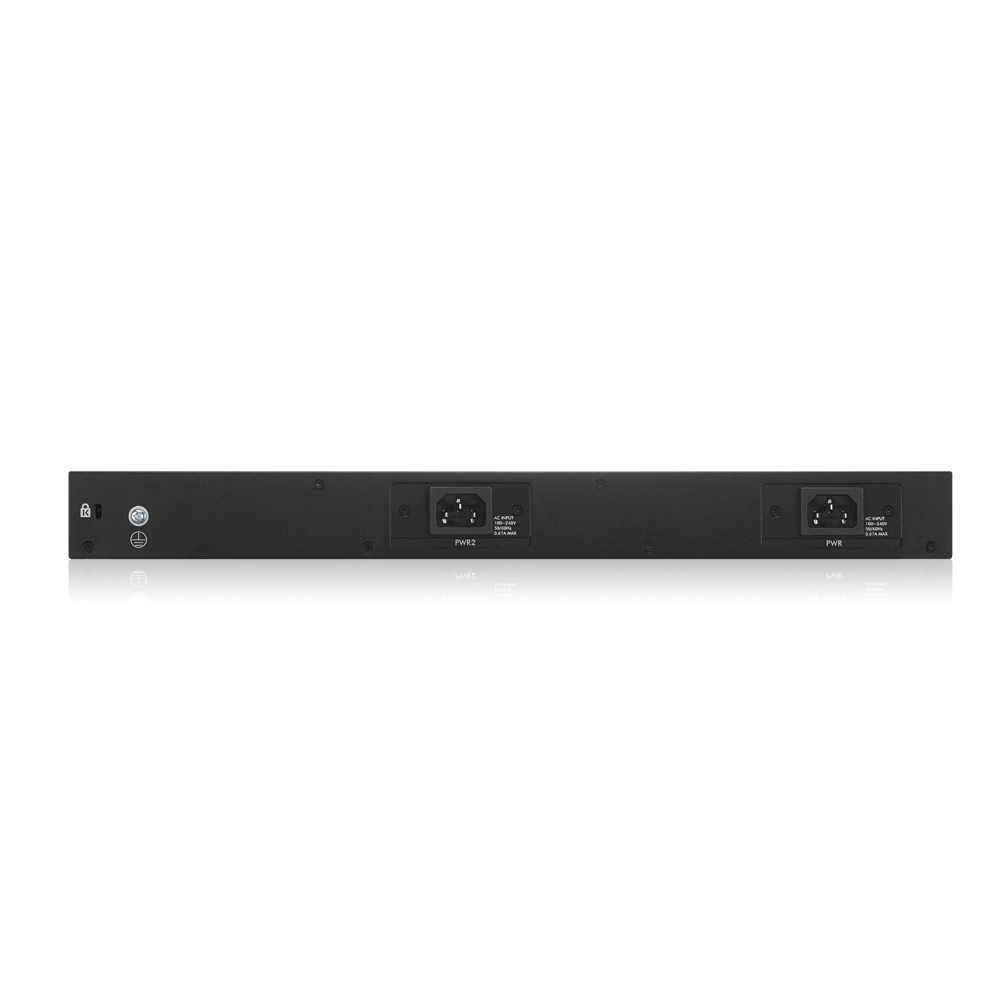

Commutator/ Switch, ZyXEL XGS4600-32 L3 Managed Switch, 28 port Gig and 4x 10G SFP+, stackable, dual PSU

ZyXEL >> ZyXEL XGS4600-32 L3 Managed Switch Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	32
Мain ports, type	24x 100/1000Base-T + 4x Gigabit combo (SFP/RJ-45)
Power Over Ethernet (PoE)	-
Uplink ports	4x 10 GbE SFP+
Open (10GB) slots	-
Management	Web-based management, Telnet, SSH, SNMP, RS-232c local console, IP management: static IP or DHCPassigned IP, Four RMON groups, Port mirroring, IEEE 802.1AB LLDP, Transceiver DDMI information (including MIB), sFlow
Stackable	Zyxel iStacking, up to 24 switches managed by a single IP address; Physical stacking up to 4 switches
Fans	Fanless
Power supply	External Power supply: 100 to 240V AC, 50/60 Hz, Max. power consumption: 47W
Routing	Static routing, IPv6 static routing, Equal Cost Multipath Routing (ECMP), Virtual Router Redundancy Protocol (VRRP), Routing table: 12K
Memory (Flash, RAM)	Packet buffer: 4 MB; Flash/RAM: 64 MB/1 GB
Routing/Switching capacity, Gbps	136 Gbps
Throughput, Mpps	101.1 Mpps
MAC addresses	32 K; Max. 8K IPv4 entries; Max. 4K IPv6 entries
VLAN (number, standards)	Up to 4 K static/dynamic VLANs, IEEE 802.1Q tag-based and portbased VLAN, Guest VLAN, GVRP automatic VLAN member registration, IP classification VLAN, VLAN counter, VLAN search,VLAN translation, VLAN MAC limit
QoS	IEEE 802.1p with 8 priority queues per port, WFR, WRR, SPQ scheduling algorithms,DSCP/DSCP to 802.1p priority mapping, IGMP/IGMP snooping, Multicast VLAN Registration (MVR), Congestion control on all ports, Selective Q-in-Q
L2 network standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3az, 802.1p CoS, 802.1D, 802.1w, 802.1s, 802.1q, 802.1x, 802.3ad
IPv6 functionality	IPv6 over Ethernet, IPv6 addressing, ICMPv6, Dual Stack, IPv6 static routing, Neighbor discovery, DHCPv6 relay
Security	Port security, IP filtering, TCP/UDP socket filtering, IEEE 802.1X port-based authentication, TACACS+, Two-level security by specifi c SNMP read/write community, Multiple access permission, SSH, SSL/TLS, IP source guard, Loop guard
Dimensions (W, D, H), mm	441 x 270 x 44
Мounting option	Rack mounting
Warranty	99 months
