MOST POPULAR PRODUCTS

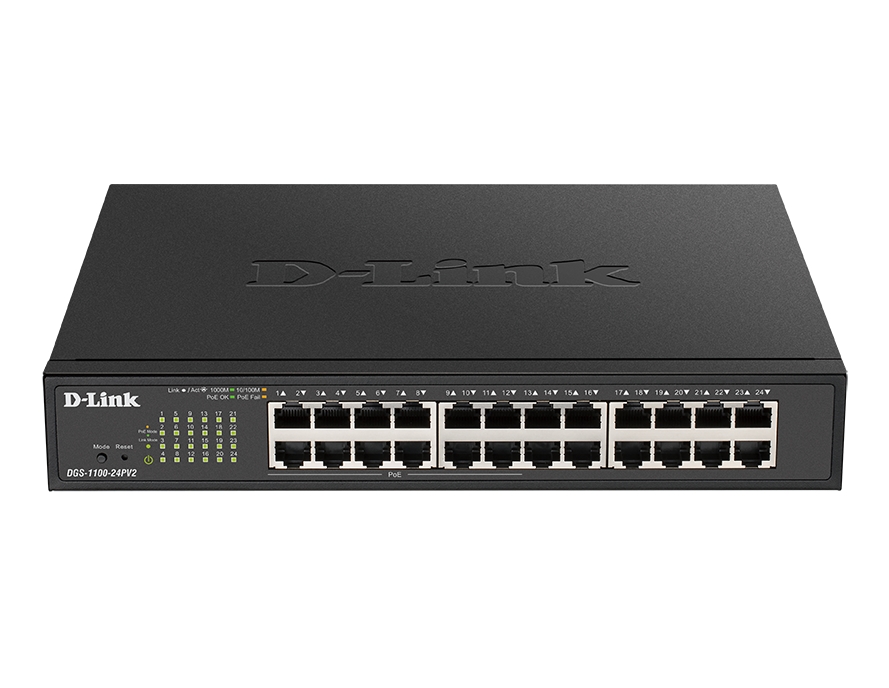

P/N: DGS-1100-24PV2

Commutator/ Switch, D-Link 24-Port PoE Gigabit Smart Managed Switch

99

Characteristic

Switch, type Fixed Port
Total number of ports 24
Мain ports, type 24x10/100/1000Base-T
Power Over Ethernet (PoE) IEEE 802.3af/802.3at PoE Standard, 1 to 12 PoE Capable Ports, PoE Power Budget: 100 W (30 W max. per PoE port)
Uplink ports 0
Open (10GB) slots No
Management Web-based GUI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA)
Stackable No
Fans Fanless
Power supply 100 to 240 V AC, 50 to 60 Hz internal power supply
Routing Layer 2 Only
Memory (Flash, RAM) Flash Memory: 16 MB
Routing/Switching capacity, Gbps 48 Gbps
Throughput, Mpps 35.71 Mpps
MAC addresses 8000 MAC address table size
VLAN (number, standards) Port-based VLAN; 802.1Q tagged VLAN; Auto Surveillance VLAN; Voice VLAN; Management VLAN; Asymmetric VLAN; VLAN Group: Supports 128 static VLAN groups, Max. 4094 VIDs
QoS 802.1p Quality of Service; 8 queues per port; Queue handling - Strict, Weighted Round Robin (WRR); Port-based bandwidth control (rate limiting): Ingress/Egress - 16 Kbps
L2 network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
L3 network standards -
IPv6 functionality -
Security D-Link Safeguard, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS attack prevention, SSL
Dimensions (W, D, H), mm 280 x 230 x 44 mm
Мounting option Desktop/Rackmount
Warranty 99 months

EAN: -
