P/N: GLD-16U560/ALFA-16U560

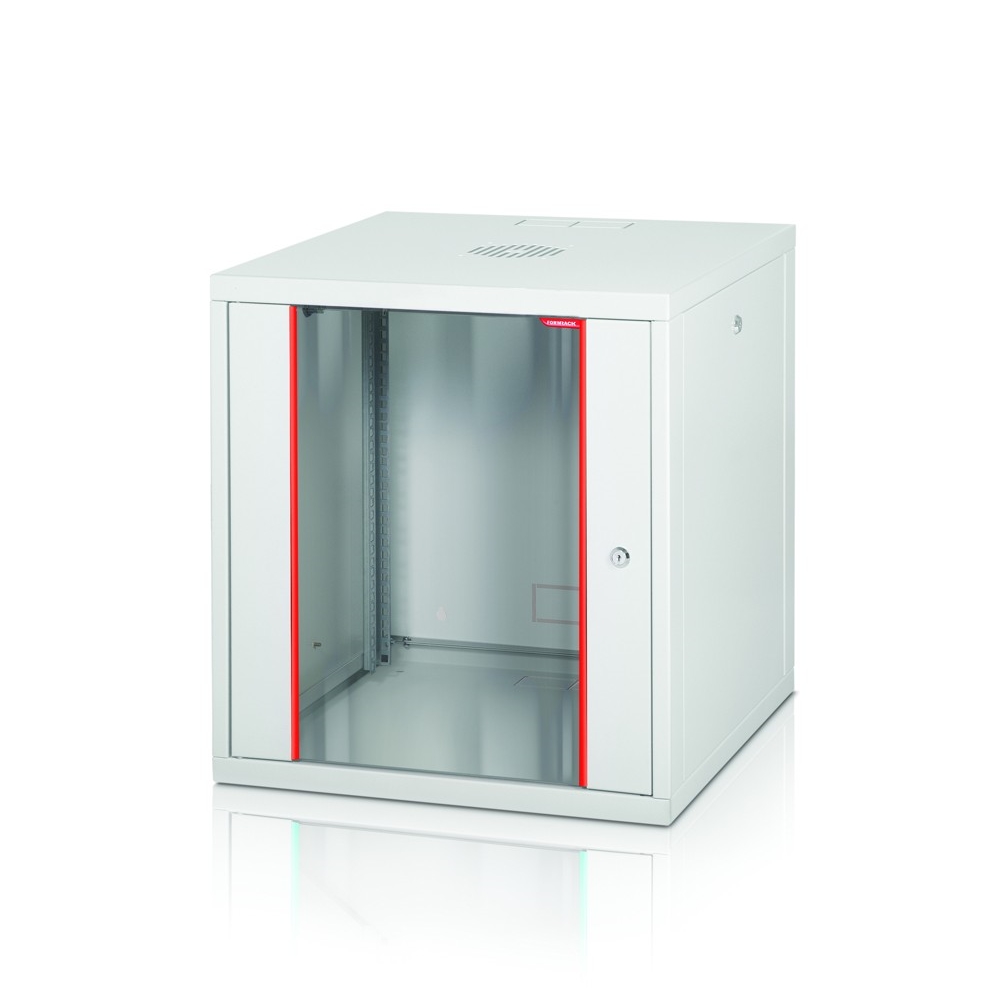

Rack, Formrack 19" Wall Mounted rack 16U 555/560mm, removable locking sides, height: 771mm, loading capacity: 100kg., tempered glass door, 19" front and back rails

24
FORMRACK >> Formrack 19" Wall Mounted rack 16U 555/560mm Recommended service
Recommended service
СЕКТРОН ООД, тел. 02 919 8282, факс 02 873 2576, адрес: гр. София - 1125, бъл. Д-р Г.М. Димитров 52, имейл: service@sectron.com, сайт: www.sectron.com





Characteristic

Type Wall Mounting
Form factor, inch 19"
Form factor 16U
Width, mm 555 mm
Depth, mm 560 mm
Height, mm 771 mm
Internal dimensions, mm Inside Height: 714 mm
Maximum load, kg 100 kg
Weight, kg 28 kg
Front doors, type Tempered glass, openable
Side panels Side covers are openable, lockable and easily removable
Rear panel The rear cover is made by high strength 1.5 mm DKP sheet that provides high strength with holes for wall mounting.
Locking The front and side covers are lockable
Accessories included 19" front rails (back rails optionable)
Number of sections Single-section, 4 mounting profiles
Fan slot Ventilation is provided by cooling units with 1 or 2 fans
Standards ROSH, CE, EN 61587-1
Color Gray (Painted by impact-resistant, high strength, electrostatic Ral 7035 texture grey color)
Other Cabinets have cable entries from 3 different points on the bottom frame, top frame and rear cover. If required, it can be used as a floor type by attaching a fixed foot or castor
Warranty 24 months

EAN: -
