P/N: DXS-1210-10TS

Commutator/ Switch, D-Link 10 Port switch including 8x10G ports & 2xSFP

Characteristic

Switch, type Fixed Port
Total number of ports 10
Мain ports, type 8x10GBase-T
Power Over Ethernet (PoE) No
Uplink ports 2x10GE SFP
Open (10GB) slots No
Management Web-based GUI; D-Link Network Assistant Utility; Full CLI; Telnet Server; TFTP Client; Configurable MDI/MDIX; SNMP (Supports v1/v2c/v3); SNMP Trap; Smart Wizard; LLDP; LLDP-MED; System Log; BootP/DHCP Client; SNTP; ICMP v6; IPv4/v6 Dual Stack;Trusted Host
Stackable No
Fans yes

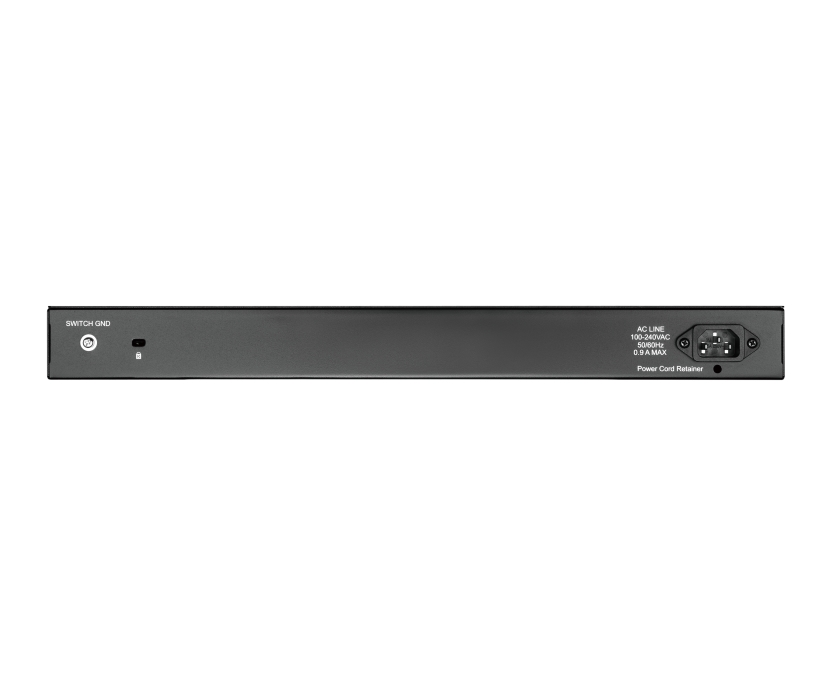

Power supply Internal power supply: 100 to 240 VAC
Routing Layer 3 Lite
Memory (Flash, RAM) -
Routing/Switching capacity, Gbps 200 Gbps
Throughput, Mpps 148.88 Mpps
MAC addresses 16000 MAC address table size
VLAN (number, standards) 802.1Q VLAN, Port-based VLAN, 4K VLAN Groups, Configurable VID 1-4094, Voice VLAN, Auto Surveillance VLAN, Asymmetric VLAN
QoS 802.1p; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR), Deficit Round Robin (DRR), Weighted Deficit Round Robin (WDRR), Strict + WDRR; Bandwidth Control - Port-based (Ingress/Egress, min. granularity 64 Kbps)
L2 network standards IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1p
L3 network standards Default Route, Static Route: Max. 64 IPv4/Pv6 entries
IPv6 functionality IPv6 Traffic Class, IPv6 Flow Label, IPv6 Neighbor Discovery (ND)
Security Broadcast/Multicast/Unicast Storm Control; D-Link Safeguard Engine; DHCP Server Screening; IP-MAC-Port Binding; Traffic Segmentation; SSL (Support v1/v2/v3, Support IPv4/IPv6); DoS Attack Prevention; Port Security; Duplicate Address Detection
Dimensions (W, D, H), mm 440 x 210 x 44
Мounting option Rackmount
Warranty 99 months

EAN: -
