P/N: DGS-1210-28P

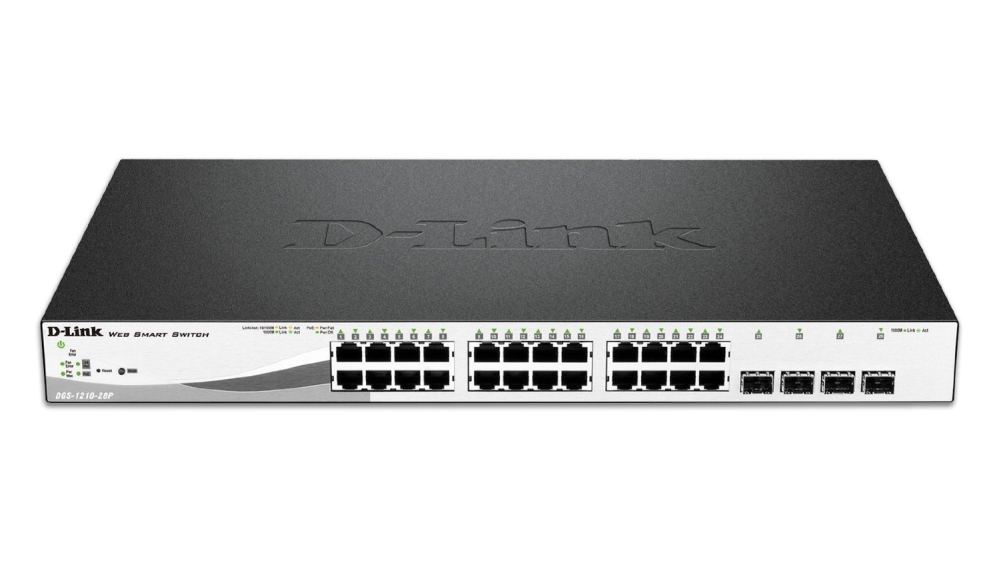

Commutator/ Switch, D-Link 24 PoE 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports

D-LINK мрежови продукти >> D-Link 24 PoE 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24x10/100/1000Base-T
Power Over Ethernet (PoE)	Ports 5~24 compliant with IEEE 802.3af Power over Ethernet (PoE) and Ports 1~4 compliant with IEEE 802.3at PoE+ standards; PoE Power Budget: 193 W
Uplink ports	4xSFP
Open (10GB) slots	No
Management	Web-based GUI, D-Link Network Assistant Utility, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP v1/v2c/v3, SNMP Trap, Backup/Upgrade firmware, Smart Wizard, Upload/Download Configuration file, RMONv1, Trusted Host, ICMP v6, SNTP
Stackable	No
Fans	Low speed: 47 dBA, High speed: 52.4 dBA
Power supply	Internal Universal Power Supply: 100 - 240 VAC, 50/60 Hz
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	56 Gbps
Throughput, Mpps	41.7 Mpps
MAC addresses	16000 MAC address table size
VLAN (number, standards)	IEEE 802.1Q; VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs; Asymmetric VLAN; Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI; Auto Surveillance VLAN
QoS	802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR); Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps); QoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
L3 network standards	-
IPv6 functionality	IPv6 Ready: Fully IPv6 compatible and ready for enterprise deployment, giving you a head start on the next Internet standards evolution
Security	Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (Smart Binding), 802.1X Port-based Access Control, ARP Spoofing Prevention, Traffic Segmentation, SSH v2, SSL, Port Security
Dimensions (W, D, H), mm	444 x 210 x 44
Мounting option	Rackmount
Warranty	99 months
